Networking
| Routing protocols |
RIP-2 |
| Supports ISDN connection |
Y |
| VoIP protocols |
SIP ALG |
| Management protocols |
Telnet/SSL, SSH, SNMP, HTTPS/HTTP |
Security
| VPN support |
IPSec over HTTPS\nPPTP |
| Authentication method |
802.1x RADIUS, TACACS+, PAP, CHAP, MS-CHAP, MS-CHAPv2 |
| Firewall security |
NAT, SIF |
| MAC address filtering |
Y |
| URL filtering |
Y |
| Firewall |
Y |
| System event log |
Y |
| VPN tunnels quantity |
5 |
| NAT functionality |
HW-NAT TCP |
Software
| Mac operating systems supported |
Y |
Mobile networking
| 3G |
Y |
| 2G standards |
GPRS |
| 3G standards |
UMTS, HSDPA |
Other features
| USB ports quantity |
1 |
| xDSL connection |
Y |
| Frequency band |
2.4 & 5 GHz |
| Internal modem |
Y |
| Bandwidth (first) |
2.4 GHz |
| Bandwidth (second) |
5 GHz |
| Mobile network connection |
Y |
| Supported WAN type |
VDSL2\nEthernet\n3G |
Antenna
| Detachable antenna(s) |
Y |
| Antenna type |
External |
| Antennas quantity |
2 |
Wireless LAN features
| Maximum outdoor range |
250 m |
| Maximum indoor range |
30 m |
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| Modulation |
OFDM |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
Ethernet LAN features
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
| DMZ support |
Y |
Management features
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
Power
| Power over Ethernet (PoE) |
N |
WAN connection
| DSL WAN |
Y |
| 3G/4G USB modem compatibility |
Y |
| Ethernet WAN |
Y |
DSL features
| VDSL2 |
Y |
| DSL specification |
ADSL2+, VDSL2, ADSL2, ADSL |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Ethernet LAN connection |
Y |
VPN Router w/ VDSL2 & ADSL2+ Modems, 2.4GHz / 5GHz, WLAN 802.11n, 4 x Gigabit Ethernet RJ-45, USB, Serial , EU, over ISDN

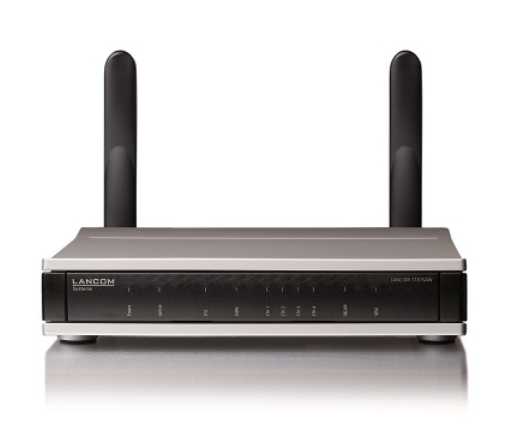

The LANCOM 1781VAW is a universally applicable VPN router for high-speed Internet connections with integrated VDSL2 and ADSL2+ modem as well as WLAN based on IEEE 802.11n. As a powerful basis of versatile Internet connections and professional WLAN for small and medium-sized enterprises and home offices it meets highest demands of security and performance. It supports all VDSL and ADSL connections – also for operations without a splitter based on ADSL2+ annex B / J (over ISDN) or A / M (over POTS) – as well as the connection to an external modem. On top of that, with the integrated dual-band WLAN based on 802.11a/b/g/n the LANCOM 1781VAW connects wireless clients at 2.4 and 5 GHz. It is also ideal for professional site connectivity: With its extensive VPN capabilities, the device provides secure, high-performance connectivity to branch offices and remote workers. The four ports of the integrated Gigabit Ethernet switch ensure maximum performance and are also energy-efficient based on IEEE 802.3az: If no data is transmitted over an interface, its power consumption shuts down automatically.
