Performance
| Gain |
2 / 4 / 5 dBi |
| Antenna gain level (max) |
5 dBi |
| Frequency band |
0.8 - 0.96 / 1.71 - 2.17 / 2.4 - 2.7 GHz |
| Impedance |
50 Ω |
Features
| Voltage Standing Wave Ratio (VSWR) |
2:1 |
| Antenna connector type |
RP-SMA |
| Antenna type |
Omni-directional antenna |

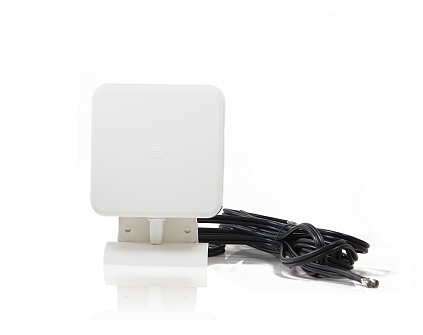

Omni-directional Multiband Antenna, Outdoor, 800-960 MHz /1710-2170 MHz / 2400-2700 MHz, f / LTE/4G /HSPA / UMTS/3G / EDGE / GSM / GPRS, 2 x SMA, White
Frequently, the cellular signals received by a router inside a building are too weak to reliably support a network. In such cases, the installation of an outdoor antenna on the building's outer facade is recommended. It receives the signal outside and transfers it to the router inside the building. The AirLancer Extender O-360-4G is an outdoor antenna that operates not only with LTE/4G signals, but also GSM, EDGE, UMTS/3G, and HSPA+. The integrated MIMO technology brings higher data rates and a better transmission quality in combination with LTE/4G. Particularly in built-up areas, where the Fresnel zone to the provider's base station is unlikely to be free of obstructions, reflections are ideal for transmitting signals to and from the MIMO antenna. The supplied mounting accessories allow for fixing the antenna directly to a building facade or on a mast.
