Management features
| Multicast support |
Y |
| Quality of Service (QoS) support |
Y |
Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100 Mbps |
| Number of VLANs |
4094 |
| Throughput |
48 Gb/s Mpps |
| Maximum data transfer rate |
1 Gbit/s |
Networking
| IGMP snooping |
Y |
| Link aggregation |
Y |
| Port mirroring |
Y |
Ports & interfaces
| Combo SFP ports quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| DC-in jack |
Y |
| SFP/SFP+ slots quantity |
4 |
Protocols
| Management protocols |
SNMPv1/v2c |
Design
| Safety |
EN 55022, EN 55024, EN 60950 |
| Ventilation fan(s) |
2 |
Other features
| Input frequency |
50 - 60 Hz |
| Networking features |
Gigabit Ethernet |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |
Power
| Input voltage |
110 - 230 V |
| Output power |
185 W |

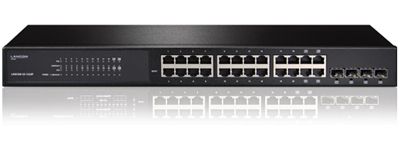

GS-1224P, 2 layer, 24 PoE, Gigabit Ethernet, 802.3af, 210W, black
- Layer-2 switch with 24 PoE-capable Gigabit Ethernet ports
- Power over Ethernet as per IEEE 802.3af with an overall power output of up to 185 W
- Ideal, for example, for high-performance networking of IEEE 802.11n WLAN access points
- Four combo ports (TP/SFP) for SFP modules (e.g. for connections to fiber optic networks)
- Port-based QoS, as per 802.1p or TOS/DiffServ
- Monitoring via SNMP and LANmonitor
- IEEE 802.1X authentication on all ports
The web-smart PoE switch LANCOM GS-1224P offers outstanding cost-effectiveness with its wide range of functions. Ideal for the high-performance networking within branch offices or as an edge component of larger networks, this switch offers 24 Gigabit Ethernet ports (including 4 TP/SFP combo ports) that can supply power to devices via LAN cable. Along with Power over Ethernet as per IEEE 802.3af, the switch features a range of quality-of-service functions including priority queuing of traffic and security mechanisms such as IEEE 802.1X access control. For seamless integration into the network, the LANCOM GS-1224P supports monitoring via SNMP and also the LANCOM Management System.
