Security
| Authentication method |
RADIUS, TACACS+ |
| VPN support |
GRE |
| Number of SSID support |
31 |
| Security features |
SIF |
Performance
| Receiver sensitivity |
WLAN-1, 5 GHz:\n\nIEEE 802.11a/h: -98 dBm @ 6 Mbps, -81 dBm @ 54 Mbps, IEEE 802.11n: -94 dBm @ (MCS0, 20 MHz), -76dBm @ (MCS 7, 20 MHz),\n-92 dBm @ (MCS0, 40 MHz), -72 dBm @ (MCS7, 40 MHz)\n\nWLAN-2, 5 GHz:\n\nIEEE 802.11a/h: -87 dBm @ 6 MBit/s, -71 dBm @ 54MBit/s, IEEE 802.11ac: -87 dBm @ MCS0 20 MHz(HT), -85 dBm @ MCS0 20MHz(VHT),\n-70 dBm @ MCS7 20 MHz, -66 dBm @ MCS8 20 MHz, -85 dBm @ MCS0 40 MHz(VHT), -67 dBm @ MCS7 40 MHz, -85 dBm @ MCS0\n40 MHz(VHT), -61 dBm @ MCS9 40 MHz(VHT), -81 dBm @ MCS0 80 MHz, -58 dBm @ MCS9 80 MHz\n\nWLAN-1, 2.4 GHz:\n\nIEEE 802.11b: -97 dBm @ 1 MBit/s, -93 dBm @ 11 MBit/s, IEEE 802.11g: -95dBm @ 6 MBit/s, -81dBm @ 54 MBit/s IEEE 802.11n: -94\ndBm @ 6,5MBit/s (MCS0, 20 MHz), -77 dBm @ 65 MBit/s (MCS7, 20 MHz), -91 dBm @ 15 MBit/s (MCS0, 40 MHz), -74 dBm @ 150\nMBit/s (MCS7, 40 MHz) |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Automatic channel selection |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Tagged VLAN |
Y |
| Rate limiting |
Y |
| Operating modes |
AP/Bridge/Client |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Auto Wireless Distribution System (WDS) |
Y |
| Wi-Fi Multimedia (WMM)/(WME) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Firmware upgradeable |
Y |
| Maximum indoor range |
30 m |
| Number of users |
512 user(s) |
| Modulation |
256-QAM |
| Web-based management |
Y |
| Frequency band |
2.4-2.4835, 5.15-5.7 GHz |
| Syslog |
Y |
| Maximum outdoor range |
150 m |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
| RS-232 interface |
Y |
| DC-in jack |
Y |
Protocols
| Routing protocols |
RIP-1, RIP-2 |
| Management protocols |
SNMPv1,v2c,v3 |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported protocols |
DNS, HTTP, HTTPS, ICMP, NTP/SNTP, NetBIOS, PPPoE (server), RADIUS, RADSEC, RTP, TFTP, TACACS+ |
Power
| Input voltage |
230 V |
| Power over Ethernet (PoE) |
Y |
| Power consumption (max) |
15.1 W |
Design
| Placement |
Ceiling, Window |
| LED indicators |
Y |
| Internal |
N |
| Cable lock slot |
Kensington |
Antenna
| Antenna type |
External |
| Antenna gain level (max) |
3 dBi |
| Antenna connector type |
SMA |
| Antennas quantity |
4 |
| Number of connectors |
4 |
| Detachable antenna(s) |
Y |
Additionally
| Transfer rate (Mbps) |
1000 Mbit/s |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
Dual Radio, 867 MBit/s, 100% Cloud-ready, 10 Pack
Dual-radio enterprise-class 11ac Wave 2 Wi-Fi access point with up to 867 Mbps – 100% Cloud-ready

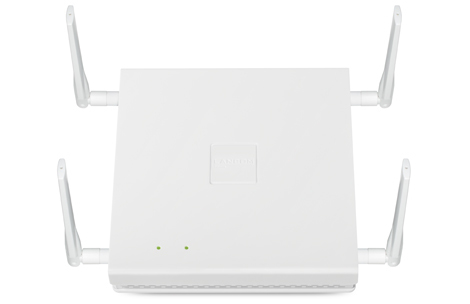

The LANCOM LN-862 is a high-performance 11ac Wi-Fi Wave 2 enterprise access point. Based on the Wi-Fi standard IEEE 802.11ac Wave 2, this device significantly increases the efficiency of any wireless network. Featuring Multi-User MIMO, it allows all of the available streams to be used by several clients at the same time. The clients also benefit from beamforming for a better signal. The LANCOM LN-862 provides fast Wi-Fi to 11n-clients in the 2.4-GHz frequency band as well as the growing number of 11ac-enabled devices in the 5-GHz band. On top of that, the access point can be versatilely operated: it can be orchestrated via the LANCOM Management Cloud, centrally managed by a WLAN controller or operated as a stand-alone device.
