Processor
| Processor frequency |
400 MHz |
Indication
| Link/Act LED |
Y |
| Power LED |
Y |
Technical details
| Serial ports quantity |
2 |
| Baud rate |
921 Kbit/s |
| Isolation |
1.5 kV |
| Electrostatic Discharge (ESD) protection |
15 kV |
| Operating frequency |
2412 - 2484, 4900 - 5925 MHz |
| Serial interface type |
RS-232/422/485 |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Ports & interfaces
| Cabling technology |
10/100Base-T(X) |
| Wi-Fi |
Y |
Software
| Server operating systems supported |
Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 x64 |
Management features
| Management protocols |
SNMP v2, SSL, FTP |
Power
| Input voltage |
100 - 240 V |
Additionally
| Internal RAM |
64 MB |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Application Server, Dual Band, 802.11a/b/g/n, 2 x Serial, 2 x USB, 10/100Mbps, Universal Power Supply 100-240 VAC, Europe Version
High Performance, Dual Band (2.4/5GHz) Application Server For Wi-Fi Connectivity

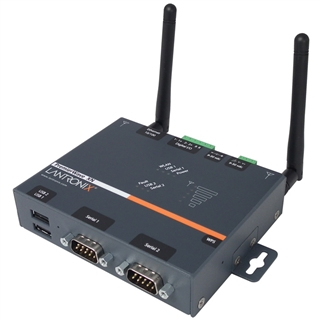

PremierWave XN is a multi-port application server that offers high performance Ethernet or Wireless connectivity for remote access and easy management of machines or equipment over the network and across the Internet.
PremierWave XN provides bullet-proof security by offering robust data encryption and authentication options including AES, SSH and SSL. Remote configuration over a network is possible using Telnet, SSH, or web browser (HTTP and HTTPS).
Equipped with the market leading “Lantronix device server application suite”, the PremierWave XN provides control of serial communication on connected devices and the flexibility to have data globally available. Advanced Applications Suite includes: basic & secure tunneling application, web-based configuration manager and robust system level and diagnostic utilities.
Additionally, Lantronix’ proprietary Secure ComPort Redirector software allows existing serial port applications to work without code modifications.
Designed with 802.11n technology, the PremierWave XN employs antenna diversity for optimal wireless performance, signal reliability, and extended range of wireless transmissions.
With the exclusive SmartRoam technology from Lantronix, the PW-XN provides seamless mobile connectivity. By tracking the signal strength of Access Points (AP) within range along with preauthentication and caching, smooth and automatic transition to an access point occurs without delay.
Configuration of PremierWave XN is simple with the included Windows-based DeviceInstaller. With the Lantronix QuickConnect Manager, PremierWave XN provides an easy connection to the wireless network through a Web-based interface.
