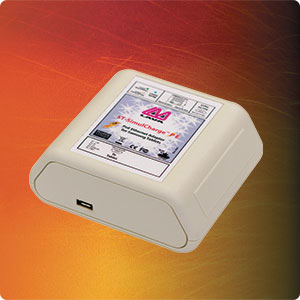

Lava STS-PE

Simulcharge PoE Adapter for Samsung Tablets <b>Tablet USB LAN Adapter with PoE</b>

The STS-PE adapter provides wired Power over Ethernet connectivity and simultaneous charging capability (SimulCharge) for select Samsung tablets. LAVA’s SimulCharge technology allows the tablet to operate as a USB Host while continuously charging the battery.

Power over Ethernet (PoE) allows network data and electrical power to be carried over a standard Ethernet cable, eliminating the need for an electrician to install a dedicated power drop. PoE allows the Samsung tablet and STS-PE to be placed up to 328 feet (100 meters) from its power source.

The STS-PE provides superior tablet charging by converting the PoE signal to 5.2 volts for use by the tablet. This eliminates the issues associated with using the tablets original power charger.

Standard USB OTG Adapters do not allow the tablet to be charged while operating with USB accessories. This intelligent adapter is designed for robust operation allowing rapid switching between SimulCharge and Charge-Only mode.

The LAVA product can be switched into Charge-Only mode to rapidly replenish the battery in the same manner as USB Charger with a Direct Charge Port (DCP) as defined by the USB Battery Charging specification v1.2.

The STS-PE can be used on its own, or as part of a third-party enclosure solution, supporting a variety of kiosk-type applications.

- Designed for select Samsung Tablets
- USB Host operation while charging
- 10/100 Ethernet
- Power over Ethernet (Class 0)
- Up to 100m (328 ft) from power source
- PoE provide 5.2 volts internal
- Can use original charger for initial testing
- 3.3 foot (1 meter) tablet connection cable
- Convenient charge mode switch
- Charge mode status indicator lights
- Network and USB activity lights
- Enhanced charging stability
- No tablet rooting required

<b>Optional features for OEM applications</b>

- Cable and connector option for hub to tablet connection of up to 3 meters (10 feet)
- Ability to use external Charge Mode switch and Charge Mode indicator LEDs
