Weight & dimensions
| Fan dimensions (W x D x H) |
120 x 25 x 120 mm |
| Fan weight |
108 g |
Power
| Rated current |
0.12 A |
| Voltage |
13.2 V |
Performance
| Pulse-width modulation (PWM) support |
Y |
| Maximum airflow |
51.5 cfm |
| Minimum airflow |
38.6 cfm |
| Minimum air pressure |
1.2 mmH2O |
| Maximum air pressure |
2.4 mmH2O |
| Noise level (low speed) |
6 dB |
| Noise level (high speed) |
13.6 dB |
| Rotational speed (min) |
500 RPM |
| Rotational speed (max) |
1200 RPM |
| Type |
Fan |
| Suitable for |
Computer case |
| Number of fans |
1 |
| Fan diameter |
120 mm |
Packaging content
| Voltage regulator |
Y |
| Screws included |
Y |

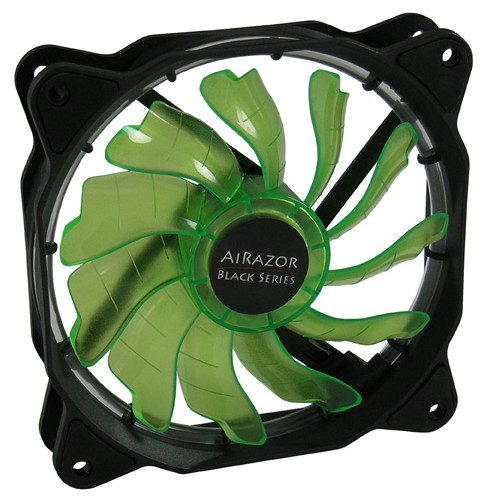

120mm Case fan, 38.6 - 51.5 cfm, 500 - 1200 rpm, 1.2 - 2.44 mm/H2O, 12V DC, FDB, 6.0 - 13.6 dB(A), 4-pin (PWM thermocontrol), green LED tube
Silicone edges
All case fans of the AiRazor series have silicone edges on the frame. These edges provide a vibration-free and low-noise connection with your computer case.
Novel design of the fan blades
Due to the newly developed design of the AiRazor fan baldes the air flow is improved and reduced the noise level to a minimum.
Long life thanks to the Fluid Dynamic Bearing (FDB)
The Fluid Dynamic Bearing of the AiRazor series are equipped with oil capsules to reduce the lost of the lubrication solvent. The result is a quieter operation and a longer life than normal bearings.
