Performance
| Wake-on-LAN ready |
Y |
| Mac operating systems supported |
Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
Ports & interfaces
| Host interface |
USB |
| Internal |
N |
Additionally
| Jumbo Frames support |
Y |
| Transfer rate (Mbps) |
1000 Mbit/s |
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
1 |

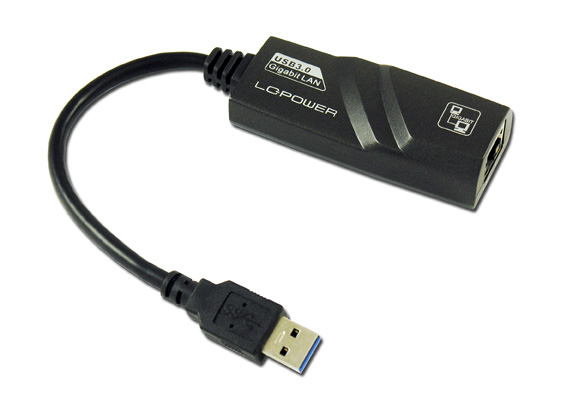

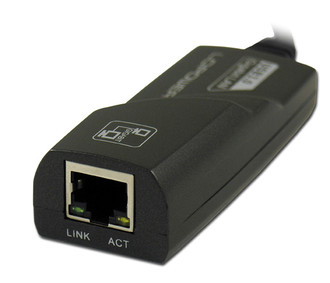

USB 3.0 - RJ-45, 10/100/1000 LAN, 41 g
Characteristics:
The USB 3.0 gigabit Ethernet adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for connecting to gigabit networks at full bandwidth, unlike USB 2.0 adapters.
- USB 3.0 to 10/100/1000 Ethernet adapter
- Downwardly compatible to USB 2.0 and USB 1.1
- Chipset: AX88179
- System requirement: 1x USB port
Supported features:
- All USB 3.0 power savings modes (U0/U1/U2/U3)
- Super/High/Full Speed modes
- Power delivery by USB bus
- IEEE 802.3az (Energy Efficient Ethernet)
- Parallel detection
- Automatic polarity correction
- IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU load
- TCP Large Send Offload V1
- Jumbo frame
- Full duplex operation with IEEE 802.3x flow control and half duplex
operation with back pressure flow control
- PHY loop back diagnostic capability
- Wake-on-LAN function
- IEEE 802.1P Layer 2 Priority Encoding and Decoding
- Suspend mode and remote wake-up via link-change, Magic Packet,
Microsoft Wakeup Frame and external wake-up pin
System requirements:
Microsoft Windows XP/Vista/Server 2003/Server 2008 R2/7/8 (32/64-Bit), Mac OS 10.6/10.7/10.8
Included in delivery:
Ethernet adapter, driver CD and manual
