Technical details
| Frequency range |
47 - 20000 Hz |
| TV tuner integrated |
Y |
Amplifier
| Amplification device type |
Amplifier |
| Amplifier class |
D |
| Amplification device included |
Y |
Weight & dimensions
| Subwoofer dimensions (WxDxH) |
325 x 383 x 491 mm |
| Subwoofer weight |
16500 g |
| Satellite speaker weight |
1700 g |
| Satellite speaker dimensions (WxDxH) |
122 x 122 x 122 mm |
Subwoofer
| Wireless subwoofer |
Y |
| Subwoofer RMS power |
300 W |
Satellite speakers
| Number of satellite speakers |
8 |
| Satellite speaker impedance |
16 Ω |
| Satellite speaker tweeters quantity |
3 |
Audio
| Recommended usage |
Universal |

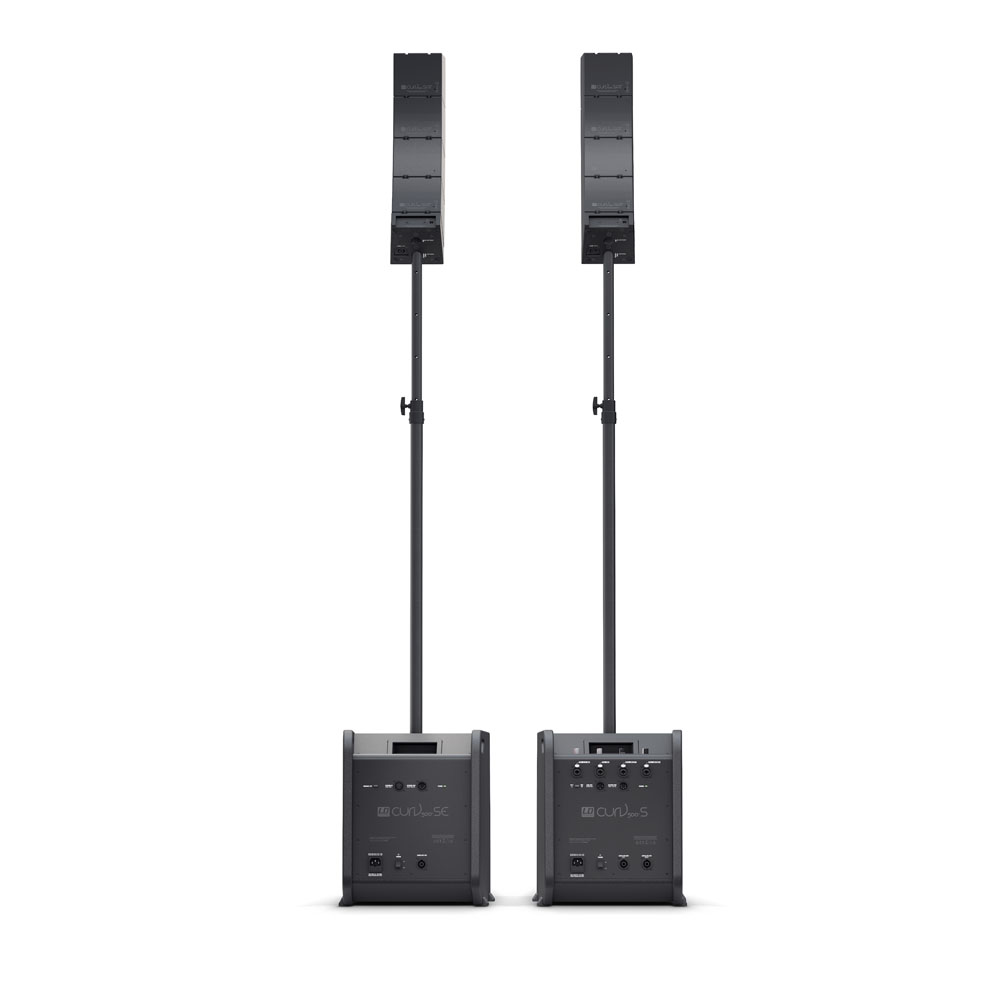

Portable Array System Power Set w / Distance Bars & Speaker Cables, RMS 920W, 47 - 20000Hz, black
If more power is required, the CURV 500 Power Set can provide a power of 920 watts RMS and a maximum sound pressure of 134 dB. Two subwoofers and eight satellites offer all the advantages of the CURV 500 System and have sufficient power reserves for larger events or applications with high power requirements, especially in the bass range.
The compact, transport-friendly CURV 500 is an easily configurable array system with eight interlocking satellites, which are operated via a SmartLink adapter. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAhead technology, one 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.
The 10" bass-reflex subwoofer houses the Class D power amplifier and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth. Combo, and Speakon- compatible sockets offer extensive connectivity options, and the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles. The second subwoofer with its own power amplifier offers identical technical specifications, but does not require any mixer.
The CURV 500 Power Set includes two subwoofers, one with a mixer unit, eight satellites, two SmartLink adapters, two distance bars and matching speaker cables.
