Ports & interfaces
| Bluetooth |
Y |
| Line-in |
Y |
| Line-in connectivity |
6.3 mm |
Technical details
| Channels quantity |
4 |
| Frequency range |
50 - 20000 Hz |
| Microphone in |
Y |
| Magnet type |
Ferrite |
| Impedance |
4 Ω |
| Subwoofer height |
405 mm |
| Subwoofer depth |
395 mm |
| Speaker width |
82 mm |
| Speaker height |
535 mm |
| Speaker depth |
105 mm |
| Peak Music Power Output (PMPO) |
800 W |
| Subwoofer width |
305 mm |
Subwoofer
| Subwoofer type |
Active subwoofer |
Amplifier
| Amplification device form factor |
Built-in |
| Amplification device type |
Amplifier |
| Amplification device included |
Y |
| Amplifier class |
D |
| Amplifier output power |
200 W |
Center speaker
| Center speaker wall mountable |
N |
Weight & dimensions
| Subwoofer dimensions (WxDxH) |
305 x 395 x 405 mm |
Active, 120 dB, 50 - 20000 Hz, 1985 mm, 11.3 kg, Bluetooth, DSP, 4 channel mixer, ABS plastic, 800 W, 100 - 240 V, 50/60 Hz, 2 x stereo, 1 x Mic, 1 x MP3, 1 x Hi-Z, 1 x Loudspeaker, 3.5/6.3 mm Jack, XLR

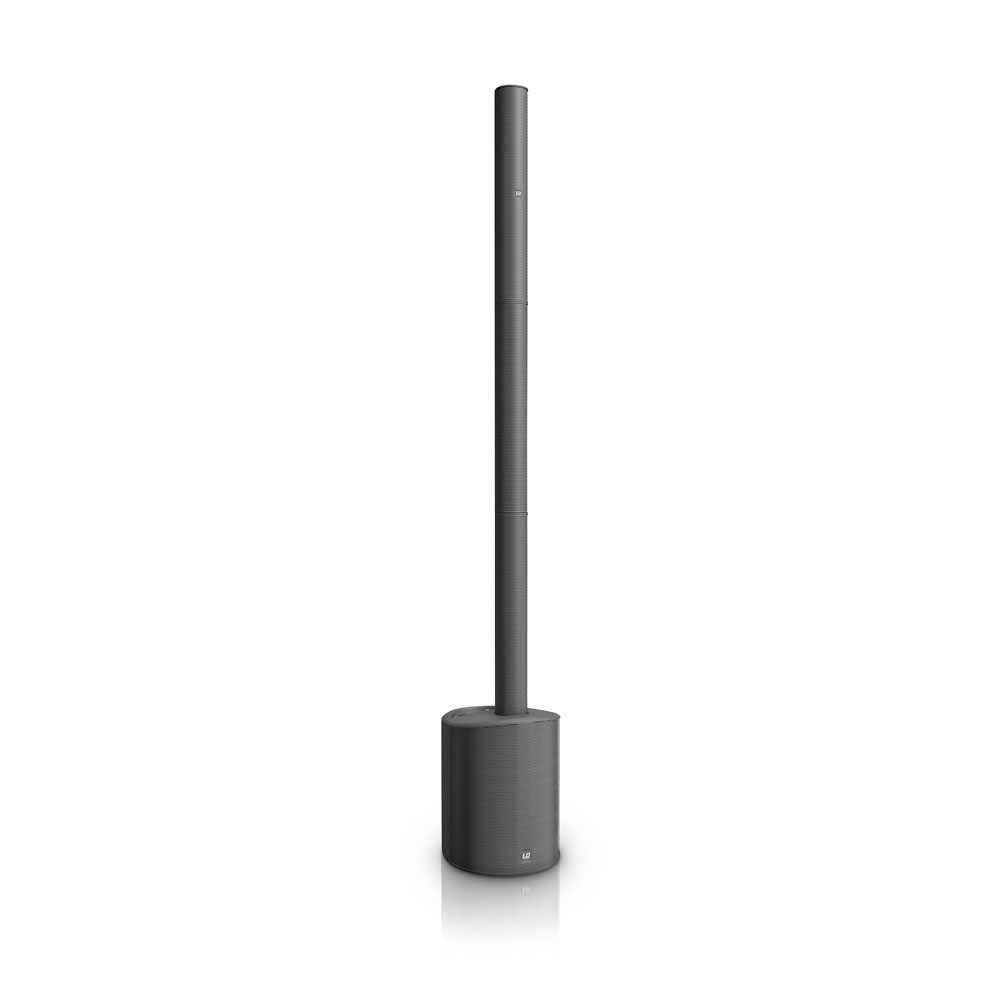

The ultra compact MAUI 5 weighs in at about 11 kg while delivering 800 watts of peak power and a maximum SPL of 120 dB. Providing both sound reinforcement with extended coverage and feedback resistant monitoring the subwoofer base and 3-piece column system assembles in seconds with custom multipin connectors. The junior member of the MAUI family is most easily portable and fits onto any car seat.
The vented 8" subwoofer also houses the system's Class D amplification with overcurrent, short circuit and thermal protection, LD Systems' proprietary LECC digital processing and a 4-channel mixer. Featuring Bluetooth technology for wireless streaming and microphone, line level and hi-Z inputs which can be used simultaneously the MAUI 5 lets you connect a wide variety of sources including music players and instruments such as keyboards or guitars. Individual level controls, subwoofer and master volumes plus high shelf filtering for room correction enable a perfectly balanced performance.
