Display
| Display diagonal |
46 " |
| Vertical scan range |
49 - 86 Hz |
| Aspect ratio |
16:9 |
| Digital vertical frequency |
23 - 85 Hz |
| Digital horizontal frequency |
15 - 94 kHz |
| Response time |
10 ms |
| Picture-in-Picture |
Y |
| Contrast ratio (typical) |
3000:1 |
| Display resolution |
1920 x 1080 pixels |
| Viewing angle, horizontal |
178 ° |
| Viewing angle, vertical |
178 ° |
| Display brightness |
600 cd/m² |
| Full HD |
Y |
| 3D |
N |
| LED backlight |
Y |
| Display type |
LED |
Other features
| AV input |
Y |
| Interface type |
USB |
| Dimensions (WxDxH) |
1072.3 x 62 x 643.5 mm |
| Number of products included |
1 pc(s) |
| On Screen Display (OSD) |
Y |
| Compatible operating systems |
Windows XP/Vista/7\nMac OS X \nLinux |
Ports & interfaces
| DVI-D ports quantity |
1 |
| Audio output |
1 |
| USB 2.0 ports quantity |
1 |
| Component video (YPbPr/YCbCr) in |
1 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Performance
| Number of speakers |
2 |
| Plug and Play |
Y |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Y |
Power
| Power consumption (typical) |
185 W |
| Power consumption (standby) |
1 W |
| Energy Star certified |
N |
| Power supply type |
AC |
Ergonomics
| VESA mounting interfaces |
400 x 400 mm |
| Wall mountable |
Y |
Operational conditions
| Operating relative humidity (H-H) |
35 - 75% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
35 - 75% |
Weight & dimensions
| Depth |
62 mm |
| Width |
1072.3 mm |
| Weight |
32000 g |
| Height |
643.5 mm |
Packaging content
| Handheld remote control |
Y |
Additionally
| Display scan frequency (horizontal) |
23 - 92 kHz |
| Display number of colors |
1.073 billion colours |
| Display diagonal |
116.8 cm |
| S-Video in |
1 |
| RS-232 port |
1 |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 35 °C |

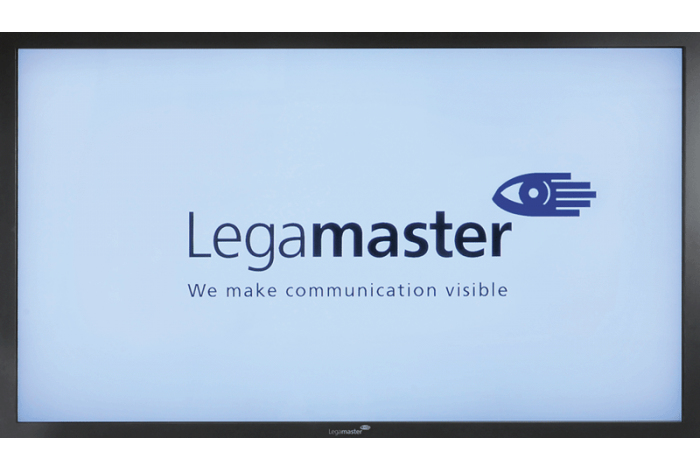

PROFESSIONAL e-Screen, 116.84 cm (46 ") LED, Full HD 1920x1080, 120Hz, 600cd/m², 10ms, 4Ohmx10Wx2, 2xHDMI, USB, Ethernet, 185W, 32kg, Black
Interactivity in a new form
The PROFESSIONAL e-Screen series represent the next stage in interactive presentation media. The LCD-touch displays are available in a screen size of 1.40 m (55") or 1.65 m (65"), offering plenty of space for highly striking presentations. With full-HD resolution and a large viewing angle, your presentations will truly wow your audience.
Thanks to their sturdy design and very long service life, the e-Screens are ideal for regular usage and will even withstand intensive use in school. The fanless architecture ensures low maintenance costs.
The high-quality sensor technology used in the new LEGAMASTER e-Screens is not only highly accurate, it also responds quickly and can be operated with a finger or a stylus. The inbuilt stereo loudspeakers ensure the right sound. What’s more, numerous connections allow you to hook up a host of components.
Installation is as easy as it is quick: simply connect the e-Screen to your PC using a USB – that’s all there is to it! There is no need to install other drivers.
