Display
| Display diagonal |
46 " |
| Aspect ratio |
16:9 |
| Touchscreen technology |
Infrared |
| Response time |
6.5 ms |
| Contrast ratio (typical) |
4000:1 |
| Display resolution |
1920 x 1080 pixels |
| Pixel pitch |
0.53 x 0.53 mm |
| Display brightness |
500 cd/m² |
| Full HD |
Y |
| Backlight type |
LED |
| LED backlight |
Y |
| Display type |
LED |
Ports & interfaces
| Cables included |
AC, USB, VGA |
| DVI-D ports quantity |
1 |
| Audio input |
1 |
| USB 2.0 ports quantity |
1 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Performance
| Linux operating systems supported |
Y |
| Number of speakers |
2 |
| Number of simultaneous touchpoints (Windows 7) |
6 |
| Number of simultaneous touchpoints |
6 |
| Plug and Play |
Y |
| RMS rated power |
20 W |
| Number of OSD languages |
4 |
| Mac operating systems supported |
Y |
| Built-in camera |
N |
| Built-in speaker(s) |
Y |
| Windows operating systems supported |
Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| On Screen Display (OSD) languages |
DEU, DUT, ENG, FRE |
Power
| Power consumption (typical) |
135 W |
| Power consumption (standby) |
1.5 W |
| AC input frequency |
50/60 Hz |
| Power supply type |
AC |
Operational conditions
| Operating relative humidity (H-H) |
35 - 85% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
35 - 85% |
Weight & dimensions
| Depth |
86 mm |
| Width |
1068 mm |
| Height |
620 mm |
Additionally
| Display number of colors |
1.073 billion colours |
| Colour of product |
White |
| RS-232 port |
1 |
| Operating temperature range (T-T) |
0 - 35 °C |

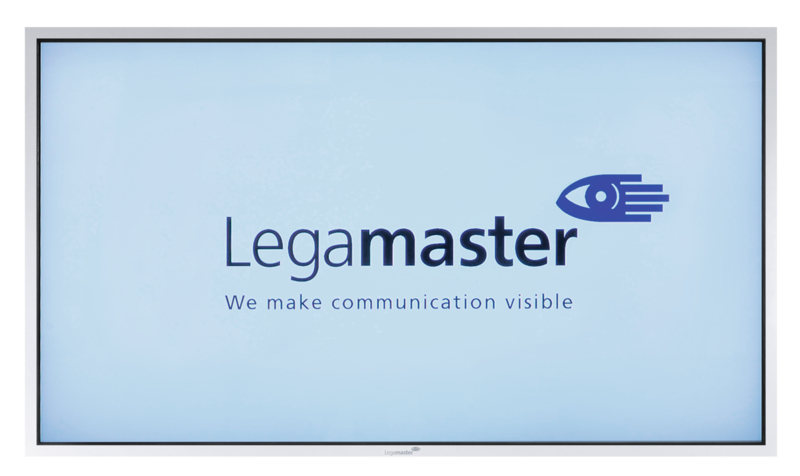

116.84 cm (46 ") FHD LED, 500 cd/m², 4000:1, 6.5 ms, 1920x1080px, RS232C, 200 fps
- The most advanced infra-red touch technology
- Anti reflective coating
- Fanless design
- Integrated speakers
- Automatic brightness adjustment
- For professional continuous operation (24/7)
- Low energy consumption
- Ultra slim design
- OPS slot
- The e-Screen systems offer a durable solution for heavy demand environments like schools, public facilities or corporate enviroment
- The advanced infra-red touch technology guarantees precise and fast response. No calibration is required and the system is compatible with a braod variety of analog/digital PC and video modes
- Advanced LED backlighting system ensures image quality of the highest level and low energy consuption
- The e-Screen PTX-4600 is also usable as an ultra-slim touch table
- The advanced infra-red touch screen technology uses infra-red sensors to detect the touch point. Any pointing device (finger, stylus, or any other pen-shape object) can be used
- Multi-touch capable (up to 6 simultaneous touches, Windows 7 and 8)
- To create your optimal all-in-one solution, the PTX-4600 is equipped with an OPS-slot (Open Pluggable Specification) for seamless integration of an OPS standard slide-in computer
