Audio
Audio system |
Realtek ALC662-VD |
Processor
L3 cache |
2 MB |
Processor cores |
2 |
Processor frequency |
1.1 GHz |
Packaging content
Keyboard supplied |
Y |
Mouse included |
Y |
External power adapter |
Y |
Weight & dimensions
Depth (without stand) |
170 mm |
Width (without stand) |
55 mm |
Height (without stand) |
220 mm |
Networking
Wake-on-LAN ready |
Y |
Wi-Fi |
N |
Ports & interfaces
Serial ports quantity |
4 |
Parallel ports quantity |
1 |
Headphone outputs |
1 |
DC-in jack |
Y |
DisplayPorts quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
Microphone in |
Y |
PS/2 ports quantity |
2 |
Memory
Internal memory type |
DDR3-SDRAM |
Memory clock speed |
1333 MHz |
Internal memory |
4 GB |
Maximum internal memory |
4 GB |
Storage
Storage media |
Flash |
Card reader integrated |
N |
Total storage capacity |
16 GB |
Additionally
Chipset |
Intel NM70 Express |
Ethernet LAN (RJ-45) ports quantity |
1 |
Ethernet LAN connection |
Y |

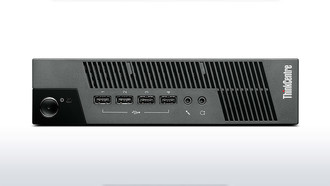

Celeron 847 1.1GHz, 4GBx1, 16G DOM Card, Intel HD Graphics, Floor stand, Windows Embedded Standard 7
<b>Fan-Less, Cable-Less Design</b>
Whisper-quiet and designed for lower power consumption, M32 meets Energy Star 5.2 certification and promises high efficiency, energy savings, and long life.
<b>Lenovo Thin Client Manager on Server</b>
This web-based application gives administrators the ability to access the console from any terminal, and to manage Thin Clients individually or as a group. Delivered as a virtual appliance, LTM is easy to install, user-friendly, and intuitive.
<b>Variety of I/O Support</b>
No matter your legacy port needs, M32 has you covered, with support for USB 2.0, VGA out, DP out, COM, Parallel, PS/2 – plus customizable pin definition on your COM port design.
<b>Dual Display Support</b>
Connect two monitors, using either a VGA port or a DisplayPort – save on the cost of an additional graphics card.
<b>Security Lock</b>
After deployment, keep each of your ultra-small PCs where it belongs with a Kensington Security Lock.
<b>Multiple Virtualization Management App Certifications</b>
M32 is compatible with Citrix® Receiver, VMWare® View and Microsoft Remote FX, for better manageability.
