Ports & interfaces
Parallel ports quantity |
1 |
PS/2 ports quantity |
2 |
Line-in |
N |
Headphone outputs |
1 |
S/PDIF out port |
N |
VGA (D-Sub) ports quantity |
1 |
DC-in jack |
N |
DVI port |
N |
SmartCard slot |
N |
Line-out |
N |
Microphone in |
Y |
eSATA ports quantity |
1 |
DisplayPorts quantity |
1 |
Serial ports quantity |
2 |
Processor special features
Intel® Insider™ |
N |
Intel vPro Technology |
N |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel Rapid Storage Technology |
N |
Intel Fast Memory Access |
N |
Intel Flex Memory Access |
N |
Execute Disable Bit |
Y |
Thermal Monitoring Technologies |
Y |
Intel Trusted Execution Technology |
N |
Processor package size |
37.5 mm |
Processor ARK ID |
38512 |
Processor code |
SLGT6 |
Intel® Quick Sync Video Technology |
N |
Intel 64 |
Y |
Intel Clear Video Technology |
N |
Intel Dual Display Capable Technology |
N |
Embedded options available |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
N |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Hyper-Threading Technology |
N |
Intel® Turbo Boost Technology |
N |
Intel Enhanced Halt State |
Y |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel Clear Video Technology for MID |
N |
Intel VT-x with Extended Page Tables (EPT) |
N |
Intel FDI Technology |
N |
Enhanced Intel SpeedStep Technology |
Y |
Intel Demand Based Switching |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Packaging content
Drivers included |
Y |
Display included |
N |
Processor
Number of Processing Die Transistors |
456 M |
FSB Parity |
N |
Tcase |
71.4 °C |
ECC supported by processor |
N |
Number of processors installed |
1 |
Processor cache |
4 MB |
Processor lithography |
45 nm |
Thermal Design Power (TDP) |
95 W |
Processor codename |
Yorkfield |
Conflict Free processor |
N |
Processor cache type |
L2 |
CPU multiplier (bus/core ratio) |
8 |
Processor operating modes |
64-bit |
Stepping |
R0 |
Processor cores |
4 |
Processor frequency |
2.66 GHz |
Bus type |
FSB |
Processor front side bus |
1333 MHz |
Networking
Internal modem |
N |
Cabling technology |
10/100/1000Base-T(X) |
Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Wi-Fi |
N |
Optical drive
Optical drive type |
DVD-RW |
LightScribe |
N |
Memory
Maximum internal memory |
16 GB |
Memory clock speed |
1066 MHz |
Memory slots |
4x DIMM |
Internal memory type |
DDR3-SDRAM |
Internal memory |
2 GB |
Design
Number of 5.25" bays |
2 |
Number of 3.5" bays |
2 |
Intel segment tagging |
Enterprise |
Chassis type |
Tower |
Other features
Built-in subwoofer |
N |
BIOS password |
Y |
Processor manufacturer |
Intel |
Graphics adapter family |
ATI |
Speakers |
N |
Built-in microphone |
N |
Graphics
On-board graphics adapter |
N |
Expansion slots
PCI slots |
2 |
PCI Express x1 slots |
1 |
PCI Express x16 slots |
1 |
Storage
Hard drive capacity |
320 GB |
Hard drive speed |
7200 RPM |
Number of hard drives installed |
1 |
Total storage capacity |
320 GB |
Card reader integrated |
N |
Hard drive interface |
Serial ATA II |
Additionally
Chipset |
Intel Q45 |
Ethernet LAN (RJ-45) ports quantity |
1 |
InTru™ 3D Technology |
N |
Processing die size |
164 mm² |
Ethernet LAN connection |
Y |
Intel AES New Instructions |
N |

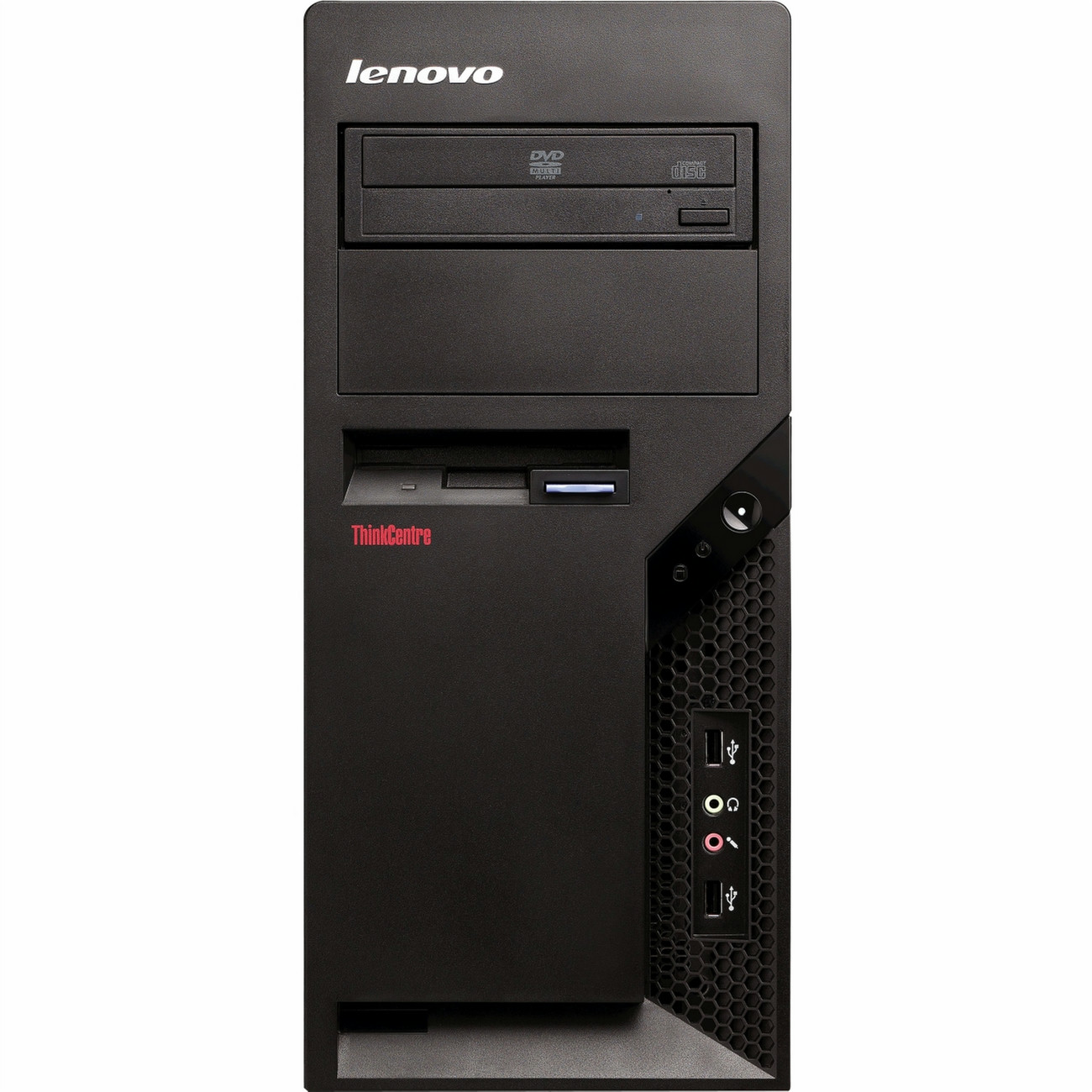

Intel Core 2 Quad Processor Q8400(2.66GHz), 2GB DDR3, 320GB, no diskette drive, PCI/PCIe Tower (4x5), ATI Radeon HD3470 256MB PCIe, DVD Recordable, Gigabit Ethernet, Windows XP Proffesional
Step up to ThinkCentre M Series
Refresh your fleet of PCs with ThinkCentre® M Series desktops. Smarter, stronger and more up to date for better business performance, easier manageability, state-of-the-art security and great ROI. Available in tower, small form factor (SFF) and space-saving Eco Ultra-Small Form Factor (Eco USFF).
Drive enterprise productivity
M Series models offer improved overall system performance, optimized for the most demanding applications.
Get improved overall system performance, optimized video editing and 2-D/3-D image design, and
expanded power-management compatibilities for new levels of energy efficiency on M Series models with Intel® 45nm-based CPUs.
Boot up and shut down faster with Windows® 7 Lenovo Enhanced Experience.
Work smarter
View up to four screens simultaneously with Dual Independence Display (DID). M Series supports DID technology, which provides easier navigation between applications to help reduce errors while working and improve productivity.
Easy to manage
ThinkCentre M Series desktops help IT administrators set up, maintain and enhance your systems to save time and money.
Reduce IT desk-side visits
Paired with Intel® vPro™ technology, the ThinkVantage® Productivity Center helps you reduce costly and time-consuming desk-side visits, allowing you to monitor, diagnose and repair PCs regardless of OS or power state. Certain audit functions can also be accomplished without physically tracking down each system. And ThinkVantage Power Manager lets you monitor and remotely control power consumption throughout your PC fleet, saving energy and energy costs across your business.
Simplify enterprise rollouts
- ThinkVantage System Migration Assistant™ helps get your end users up and running by quickly and accurately migrating their individual data and settings to their new Lenovo systems.
- ThinkVantage System Update™ knows the status of your end user’s system and can sort through available updates and select only those specifically needed by a user’s system.
Advanced security made simple
Secure your IT investment and lower your total cost of ownership with ThinkCentre M Series desktops.
- Hardware Password Manager (HPM) enables easy recovery and management of hard-drive passwords, significantly reducing hard-drive password-reset time, and combines seamlessly with fully encrypting drives, offering more secure software solutions.
- ThinkVantage Client Security Solution (available on select models) provides an extra layer of protection for passwords, encryption keys and electronic credentials.
- Chassis intrusion switch helps avoid unauthentic chassis opening to prevent data theft.
- PS/2® ports help prevent unauthorized data access and virus attacks through USB peripheral devices.
- Fingerprint reader keyboard (optional) enables secure login without the need to remember passwords.
- Computrace-ready to aid in asset tracking and loss prevention.
ENERGY STAR®
ENERGY STAR compliance is available on select models of all ThinkCentre M Series form factors. These desktops consume less power, emit less heat and make less noise. The end result is a more cost-efficient PC and a cooler, quieter environment.
EPEAT Gold
Select M Series desktops have qualified as EPEAT Gold, a green standard for electronics provided by the U.S. government.
GREENGUARD
Select M Series desktops are GREENGUARD certified, tested for up to 2,000 potentially harmful contaminants. Lenovo is the only computer manufacturer to have any of its products GREENGUARD certified.
Power Manager
ThinkVantage Power Manager helps you save energy and lower electricity costs across your business. System administrators can monitor and remotely control the amount of electricity used by all desktops in a PC fleet. Program your ThinkCentre desktops to shut down on evenings or weekends, and realize new efficiencies through Power Manager.
Solar power option
Make your M Series desktop even more environmentally friendly by powering it with the optional Solar-PowerPac renewable energy source, available from Advanced Energy Group.
Windows® 7
Lenovo offers a wide variety of systems preloaded with the newest Windows 7 operating system.
Windows® 7 Lenovo Enhanced Experience PCs
Get the best computing experience available by selecting desktops featuring Windows® 7 Lenovo Enhanced Experience certification. Enjoy faster start-up and connection times plus more entertainment and security features than ever.
Microsoft® Office 2007
Add Microsoft Office 2007 to your system purchase. It's the most significant update to the Office interface in more than a decade.
