Processor special features
Thermal Monitoring Technologies |
Y |
Intel Trusted Execution Technology |
N |
Intel® Quick Sync Video Technology |
N |
Intel® Insider™ |
N |
Intel 64 |
Y |
Intel Rapid Storage Technology |
N |
Intel Fast Memory Access |
N |
Intel Flex Memory Access |
N |
Execute Disable Bit |
Y |
Idle States |
Y |
Processor package size |
37.5 mm |
Processor ARK ID |
36503 |
Processor code |
SLB9Z |
Intel Clear Video Technology |
N |
Intel Dual Display Capable Technology |
N |
Embedded options available |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
N |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Hyper-Threading Technology |
N |
Intel® Turbo Boost Technology |
N |
Intel Enhanced Halt State |
Y |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel Clear Video Technology for MID |
N |
Intel vPro Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
N |
Intel FDI Technology |
N |
Enhanced Intel SpeedStep Technology |
Y |
Intel Demand Based Switching |
N |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Processor
Thermal Design Power (TDP) |
65 W |
Processor codename |
Wolfdale |
Conflict Free processor |
N |
Processor cache type |
L2 |
Number of processors installed |
1 |
Processor cache |
3 MB |
Processor lithography |
45 nm |
FSB Parity |
N |
Processor front side bus |
1066 MHz |
Number of Processing Die Transistors |
228 M |
CPU multiplier (bus/core ratio) |
11 |
Processor operating modes |
64-bit |
Stepping |
R0 |
Processor cores |
2 |
Processor frequency |
2.93 GHz |
Tcase |
74.1 °C |
ECC supported by processor |
N |
Bus type |
FSB |
Software
Operating system architecture |
32-bit |
Memory
Memory clock speed |
1066 MHz |
Memory layout (slots x size) |
1 x 1 GB |
Memory slots |
4x DIMM |
Maximum internal memory |
16 GB |
Internal memory type |
DDR3-SDRAM |
Internal memory |
1 GB |
Ports & interfaces
DisplayPorts quantity |
1 |
Serial ports quantity |
1 |
DVI port |
N |
Line-in |
Y |
Line-out |
Y |
Headphone outputs |
1 |
Microphone in |
Y |
eSATA ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
DC-in jack |
Y |
Other features
Built-in camera |
N |
Graphics adapter family |
Intel |
TV tuner integrated |
N |
Built-in microphone |
N |
Storage
Number of hard drives installed |
1 |
Hard drive capacity |
160 GB |
Hard drive speed |
7200 RPM |
Total storage capacity |
160 GB |
Card reader integrated |
N |
Hard drive interface |
Serial ATA II |
Expansion slots
PCI Express x16 slots |
1 |
PCI slots |
1 |
Design
Number of 5.25" bays |
1 |
Number of 3.5" bays |
2 |
Intel segment tagging |
Enterprise |
Networking
Cabling technology |
10/100/1000Base-T(X) |
Wake-on-LAN ready |
Y |
Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Wi-Fi |
N |
Bluetooth |
N |
Packaging content
Display included |
N |
Keyboard supplied |
Y |
Handheld remote control |
N |
Mouse included |
Y |
Optical drive
BD interface type |
SATA |
Optical drive type |
DVD-ROM |
Graphics
On-board graphics adapter |
Y |
Discrete graphics adapter model |
Intel GMA 4500 |
Additionally
InTru™ 3D Technology |
N |
Chipset |
Intel Q45 |
Processing die size |
82 mm² |
Ethernet LAN connection |
Y |
Intel AES New Instructions |
N |
Ethernet LAN (RJ-45) ports quantity |
1 |

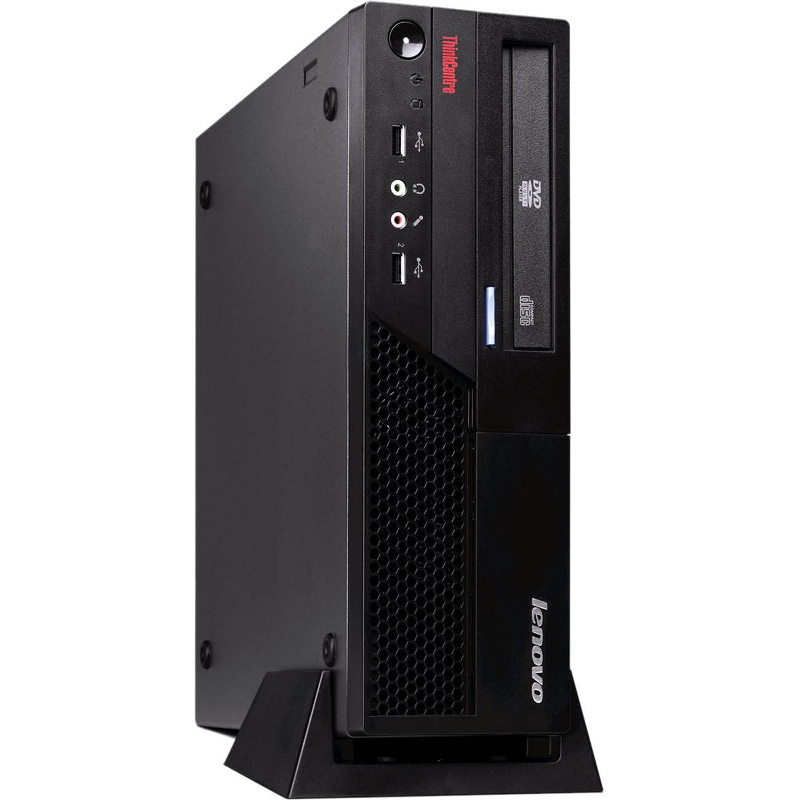

Intel Core 2 Duo E7500 (2.93GHz), 1GB RAM, 160Gb HDD, GMA 4500, VGA, DisplayPort, eSATA, LAN, SFF, Windows 7 Business (32)
ThinkCentre M58 and M58p desktops are engineered exclusively for the way you work. Equipped
with the latest Intel dual and quad-core technology, DDR3 memory and Solid State Drives(5),
desktop productivity and performance are truly maximized. Lenovo’s leadership in thermals,
acoustics and energy efficiency give the M58 and M58p a true edge over the competition.
Added to these stand-out qualities are our ThinkVantage Technologies and licensed Intel
vProTM technologies, intelligently combined to give you the ultimate degree of manageability.
Just as impressive is the ThinkCentre’s low power consumption, ensuring that the ThinkCentre
M58/M58p delivers a low TCO. Using ThinkCentre M58p in conjunction with Lenovo’s Secure
Managed Client solution provides even greater TCO benefits.
The costs savings associated with Lenovo’s Secure Managed Client are substantial – between
30 and 40% over a well-managed PC over a typical three-year lifecycle. This robust software
stack and storage array simplifies your desktop solution with less cost and comes with Lenovo-
unique tools enhanced by LANDesk. It delivers true PC and windows fidelity, using off-the-
shelf Windows applications, IT applications and PC add-ons to co-exist and integrate directly
with existing IT, asset, process management and financial systems. It’s also now dramatically
easier for employees to set up – desk-side support tickets become a thing of the past. Built-in,
IT-oriented business reports are delivered weekly across the company on end-user experience,
client, network and printing performance. SMC allows for image management and control, and
easy maintenance is offered via the SAN. Above and beyond what SMC does for you, it’s risk-
free because it operates as a fully functional ThinkCentre client.
