Packaging content
| Display included |
N |
| Handheld remote control |
N |
Ports & interfaces
| DVI port |
N |
| VGA (D-Sub) ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| DisplayPorts quantity |
1 |
Processor special features
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
45 nm |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
37.5 mm |
| Processor ARK ID |
46472 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Supported instruction sets |
SSE4.2 |
Processor
| PCI Express configurations |
1x16, 2x8 |
| Processor cache |
4 MB |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
73 W |
| Maximum number of PCI Express lanes |
16 |
| Processor codename |
Clarkdale |
| Conflict Free processor |
N |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
22 |
| Processor operating modes |
64-bit |
| Stepping |
C2 |
| Processor cores |
2 |
| Processor frequency |
2.93 GHz |
| Tcase |
72.6 °C |
| ECC supported by processor |
N |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Maximum internal memory supported by processor |
16 GB |
| Processor cache type |
Smart Cache |
| Number of Processing Die Transistors |
382 M |
| PCI Express slots version |
2.0 |
Graphics
| On-board graphics adapter |
Y |
| On-board graphics adapter base frequency |
733 MHz |
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter family |
Intel HD Graphics |
Other features
| Floppy drive installed |
N |
| TV tuner integrated |
N |
| Networking features |
Gigabit Ethernet |
| Graphics adapter family |
Intel |
Performance
| Audio output channels |
5.1 channels |
| Audio system |
HD Audio |
Design
| Intel segment tagging |
Enterprise |
Storage
| Hard drive speed |
7200 RPM |
| Total storage capacity |
320 GB |
| Card reader integrated |
N |
| Hard drive interface |
Serial ATA |
Optical drive
| Optical drive type |
DVD-RW |
Memory
| Maximum internal memory |
8 GB |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| InTru™ 3D Technology |
N |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| System bus data transfer rate |
2.5 GT/s |
| Processing die size |
81 mm² |

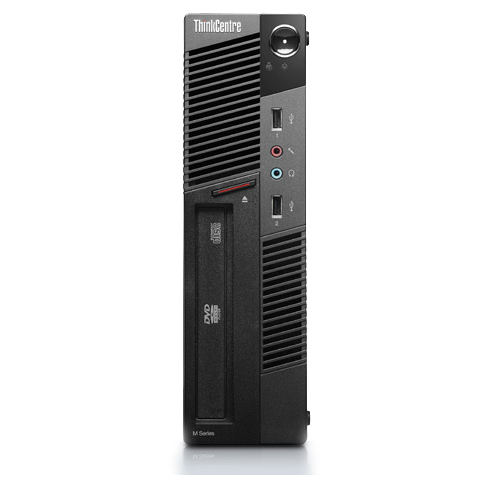

Intel Core i3-530, 2GB, 320GB 7200RPM S-ATA HDD, no FDD, PCI/PCIe Ultra SFF (1x2), Intel HD, DVD-RW, Gigabit Ethernet, Windows 7 Professional 32
Introducing premium ThinkCentre M90 and M90p
These best-in-class desktops deliver the latest technology for industry-leading performance, strong stability and easy manageability, helping boost productivity and reduce IT costs.
- Next-generation Intel® Core™ i processors with Turbo Boost and Hyper-Threading technology
- Intel® vPro™ with Active Management Technology (AMT) 6.0 support
- Lenovo Enhanced Experience for Windows 7
- 15-month stable platform
- Secure Managed Client 2.0 support
- Convenient top power button, easy-to-carry top handle and tilted front design of I/O ports for easy plug-and-play device access
- Cat-foot cushion for less table vibration (tower model only)
