Processor
| Processor lithography |
32 nm |
| Stepping |
C2 |
| Maximum internal memory supported by processor |
16 GB |
| PCI Express slots version |
2.0 |
| Number of processors installed |
1 |
| Processor cache |
4 MB |
| Thermal Design Power (TDP) |
73 W |
| Maximum number of PCI Express lanes |
16 |
| Processor codename |
Clarkdale |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Processor cache type |
Smart Cache |
| Conflict Free processor |
N |
| PCI Express configurations |
1x16, 2x8 |
| FSB Parity |
N |
| Number of Processing Die Transistors |
382 M |
| CPU multiplier (bus/core ratio) |
22 |
| Processor operating modes |
64-bit |
| Processor cores |
2 |
| Processor frequency |
2.93 GHz |
| Tcase |
72.6 °C |
| ECC supported by processor |
N |
| Bus type |
DMI |
Processor special features
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
45 nm |
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
37.5 mm |
| Processor ARK ID |
46472 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Supported instruction sets |
SSE4.2 |
Networking
| Ethernet LAN data rates |
1000, 10, 100 Mbit/s |
| Wi-Fi |
N |
Optical drive
| Optical drive type |
DVD-RW |
Memory
| Maximum internal memory |
4 GB |
| Internal memory type |
DDR3-SDRAM |
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
1 x 1 + 1 x 2 GB |
| Memory slots |
2x SO-DIMM |
| Internal memory |
3 GB |
Ports & interfaces
| PS/2 ports quantity |
2 |
| Line-in |
Y |
| Headphone outputs |
1 |
| Microphone in |
Y |
| DVI port |
Y |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
Packaging content
| Handheld remote control |
N |
| Display included |
N |
Other features
| TV tuner integrated |
N |
| Graphics adapter family |
Intel |
| External drive bays |
1x 5.25" |
| Internal drive bays |
1x 3.5" |
| Floppy drive installed |
N |
| Compliance industry standards |
IEEE 802.3/802.3u/802.3ab |
| Networking features |
Gigabit Ethernet |
Storage
| Total storage capacity |
320 GB |
| Hard drive speed |
7200 RPM |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA |
Graphics
| On-board graphics adapter family |
Intel HD Graphics |
| On-board graphics adapter |
Y |
| Discrete graphics adapter model |
Intel HD |
| On-board graphics adapter base frequency |
733 MHz |
| Number of displays supported (on-board graphics) |
2 |
Design
| Intel segment tagging |
Enterprise |
Power
| Power supply input frequency |
50 - 60 Hz |
| Power supply |
130 W |
Additionally
| System bus data transfer rate |
2.5 GT/s |
| Processing die size |
81 mm² |
| Hard disk drive, user password |
Y |
| InTru™ 3D Technology |
N |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

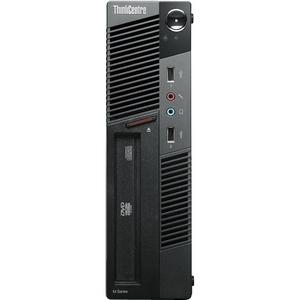

ThinkCentre M90, Intel Core i3-530 (2.93GHz), 3072MB DDR3, 320GB SATA, Intel HD, Gigabit Ethernet, Windows 7 Professional 32-bit
Maximum performance and ROI
Your large enterprise or mid-market business gets both with the sophisticated Lenovo ThinkCentre® M90/M90p desktop. Available in three standard form factors: Tower, Small Form Factor (SFF) and Eco Ultra Small Form Factor (USFF).
More uptime, lower costs
Easy-to-manage ThinkCentre M90/M90p desktops support the latest Secure Managed Client (SMC) 2.0 and Intel® vPro™ technologies for a full PC experience, data security, remote data management and worry-free storage—which help reduce costs, downtime and desk-side IT visits.
Helps keep your business green
- Less power use and costs with the ENERGY STAR®-compliant power supply unit and Lenovo Power Manager;
- Built with up to 42% post-consumer content, the industry's highest, with minimum use of plastic;
- EPEAT® Gold- and GREENGUARD®-compliant form factors;
- Packed in a reusable bag (Eco USFF only).
