Memory
| Internal memory |
4 GB |
| Memory clock speed |
1333 MHz |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
4 GB |
| Internal memory type |
DDR3-SDRAM |
Processor
| Processor frequency |
2.93 GHz |
| Maximum internal memory supported by processor |
16 GB |
| PCI Express slots version |
2.0 |
| Number of processors installed |
1 |
| Processor cache |
4 MB |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
73 W |
| Maximum number of PCI Express lanes |
16 |
| Processor codename |
Clarkdale |
| Conflict Free processor |
N |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Processor cache type |
Smart Cache |
| PCI Express configurations |
1x16, 2x8 |
| FSB Parity |
N |
| Number of Processing Die Transistors |
382 M |
| CPU multiplier (bus/core ratio) |
22 |
| Processor operating modes |
64-bit |
| Stepping |
C2 |
| Processor cores |
2 |
| Tcase |
72.6 °C |
| ECC supported by processor |
N |
| Bus type |
DMI |
Storage
| Hard drive interface |
Serial ATA |
| Number of hard drives installed |
1 |
| Hard drive speed |
7200 RPM |
| Total storage capacity |
320 GB |
| Card reader integrated |
Y |
Processor special features
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
45 nm |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
37.5 mm |
| Processor ARK ID |
46472 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Supported instruction sets |
SSE4.2 |
Packaging content
| Display included |
N |
| Handheld remote control |
N |
| Mouse included |
Y |
Other features
| External drive bays |
1x 5.25" |
| Internal drive bays |
1x 3.5" |
| Floppy drive installed |
N |
| TV tuner integrated |
N |
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Networking features |
Gigabit Ethernet |
Ports & interfaces
| DVI port |
N |
| Line-in |
Y |
| Line-out |
Y |
| Headphone outputs |
1 |
| Microphone in |
Y |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Graphics
| On-board graphics adapter |
Y |
| On-board graphics adapter family |
Intel HD Graphics |
| On-board graphics adapter base frequency |
733 MHz |
| Number of displays supported (on-board graphics) |
2 |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi |
N |
Software
| Optional operating system supplied |
Windows XP Professional |
Design
| Intel segment tagging |
Enterprise |
Optical drive
| Optical drive type |
DVD-RW |
Additionally
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
2.5 GT/s |
| InTru™ 3D Technology |
N |
| Processing die size |
81 mm² |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

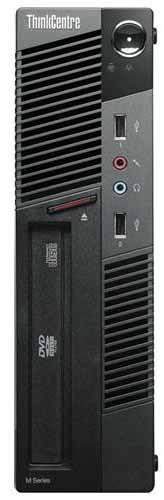

ThinkCentre M90 - Intel Core i3-530 (2.93GHz), 4GB DDR3 RAM, 320GB SATA HDD, DVD±RW, Gigabit Ethernet, Windows 7 Professional/XP Professional
The Lenovo ThinkCentre M90 / M90p desktop is designed for Enterprise Businesses seeking optimum performance with maximum investment returns. This best-in-class desktop meets your sophisticated computing needs with industry-leading performance. The ThinkCentre M90 / M90p desktop is available in three standard form factors—Tower, Small Form Factor (SFF) and Eco Ultra-Small Form Factor (USFF).
Experience ultimate performance and multi-tasking of applications with the latest family of Intel® Core™ i series processors, offering Intel® Turbo Boost and Intel® Hyper-Threading technologies. The ThinkCentre M90 / M90p gives excellent graphics experience and has a clear edge over existing desktops. Productivity gets a real boost with the preloaded new Windows® 7 Lenovo Enhanced Experience which has very fast boot-up and shutdown times with multi-touch support.
Get a full PC experience, data security, remote data management and worry-free storage with the latest Secure Managed Client (SMC) 2.0 and Intel® vPro™ technologies. These in turn drive down costs, downtime and desk-side visits. The Active Management Tool, a part of Intel® vPro™ technology is designed to work independently of the operating system.
Data security is of prime importance for all leading businesses. ThinkCentre M90 / M90p configured with the available Hardware Password Manager tool reduces password-reset time of the hard drive significantly. Optional PS/2 ports prevent unauthorized data access and virus attacks through USB peripheral devices.
Save on power costs with the Energy Star® compliant Power Supply Unit and the Lenovo Power Manager tool. The ThinkCentre® M90 / M90p re-affirms its commitment towards a green environment. The desktop is now built with up to 42% Post Consumed Content 1 (PCC), which is the industry’s highest, with the minimum use of plastic.
Ergonomically designed ThinkCentre M90 / M90p offers the Power button on top, thus avoiding the need to bend to turn your PC on. The tilted front design of I/O ports allows to plug-and-play devices easily and the top carry handle offers easy portability.
The amazing ThinkCentre M90 / M90p is a smart choice for all businesses requiring high-performance, excellent data security and quick returns on investment.
