Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
1000 Mbit/s |
| Wi-Fi |
N |
Packaging content
| Display included |
N |
| Handheld remote control |
N |
Processor
| Number of processors installed |
1 |
| Processor cache |
4 MB |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
73 W |
| Maximum number of PCI Express lanes |
16 |
| Processor codename |
Clarkdale |
| Conflict Free processor |
N |
| PCI Express configurations |
1x16, 2x8 |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
22 |
| Processor operating modes |
64-bit |
| Stepping |
C2 |
| Processor cores |
2 |
| Processor frequency |
2.93 GHz |
| Tcase |
72.6 °C |
| ECC supported by processor |
N |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Maximum internal memory supported by processor |
16 GB |
| Processor cache type |
Smart Cache |
| Number of Processing Die Transistors |
382 M |
| PCI Express slots version |
2.0 |
Ports & interfaces
| DVI port |
N |
| PS/2 ports quantity |
2 |
| Line-in |
Y |
| Line-out |
Y |
| Headphone outputs |
1 |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
Processor special features
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
45 nm |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
37.5 mm |
| Processor ARK ID |
46472 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Supported instruction sets |
SSE4.2 |
Graphics
| On-board graphics adapter |
Y |
| On-board graphics adapter base frequency |
733 MHz |
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter family |
Intel HD Graphics |
Expansion slots
| PCI slots |
1 |
| PCI Express x16 slots |
1 |
Other features
| Floppy drive installed |
N |
| TV tuner integrated |
N |
Memory
| Memory clock speed |
1333 MHz |
| Maximum internal memory |
8 GB |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
Software
| Optional operating system supplied |
Windows XP Professional |
Design
| Intel segment tagging |
Enterprise |
| Chassis type |
Tower |
Optical drive
| Optical drive type |
DVD-RW |
Storage
| Total storage capacity |
320 GB |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA II |
Additionally
| InTru™ 3D Technology |
N |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
2.5 GT/s |
| Processing die size |
81 mm² |

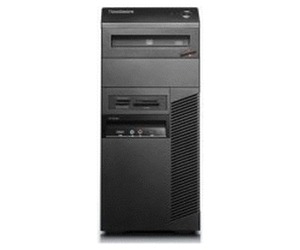

ThinkCentreM90 - Intel Core i3-530, 2GB RAM, 320GB HDD, Tower, DVD-RW, W7Pro32/XP
Maximum performance and ROI
Your large enterprise or mid-market business gets both with the sophisticated Lenovo ThinkCentre® M90/M90p desktop. Available in three standard form factors: Tower, Small Form Factor (SFF) and Eco Ultra Small Form Factor (USFF).
High-performance features
-Intel® Core™ i series processors with Turbo Boost and Hyper-Threading technologies for faster performance and multitasking.
-Up to Genuine Windows® 7 Professional operating system.
-Windows 7 Lenovo Enhanced Experience for super-fast startup and shutdown times and support for multitouch monitor.
-Excellent graphics experience.
More uptime, lower costs
Easy-to-manage ThinkCentre M90/M90p desktops support the latest Secure Managed Client (SMC) 2.0 and Intel® vPro™ technologies for a full PC experience, data security, remote data management and worry-free storage—which help reduce costs, downtime and desk-side IT visits.
Helps keep your business green
-Less power use and costs with the ENERGY STAR®-compliant power supply unit and Lenovo Power Manager.
-Built with up to 42% post-consumer content, the industry's highest, with minimum use of plastic.
-EPEAT® Gold- and GREENGUARD®-compliant form factors.
-Packed in a reusable bag (Eco USFF only).
Accessorize your M90/M90p desktop
-Lenovo ThinkVision™ L2440p Monitor features a 24" widescreen with 1920 x 1200 resolution, plus VGA + DVI-D interfaces and USB hub for connection flexibility.
-Vertical PC and Monitor Stand II is a compact PC and monitor solution for offices short on space. Height, tilt and swivel are adjustable. Compatible with USFF.
-Lenovo Fingerprint USB Keyboard lets you replace Windows passwords with fast, secure fingerprint access.
Smart security
-Hardware Password Manager helps easily recover and manage hard-drive passwords, significantly reducing password-reset time, and combines seamlessly with fully encrypting drives for more secure software solutions.
-Chassis intrusion switch helps avoid unauthentic chassis opening to prevent data theft.
-PS/2® ports help prevent unauthorized data access and virus attacks through USB peripheral devices.
-ThinkVantage® Rescue and Recovery™ helps users recover from system crashes quickly, even if the primary OS won't boot, and lets the IT team deliver remote fixes to users even if their system is down from a worm or virus.
-ThinkVantage System Update™ sorts through available updates and selects only those your system needs.
Ergonomically designed
-Easy-access top power button and tilted front I/O port panel.
-Convenient top carry handle.
-Cat-foot cushion for considerably reduced table vibration on tower models.
-Available in three standard form factors: Tower, Small Form Factor (SFF) and Eco Ultra Small Form Factor (USFF).
