Processor special features
Intel Flex Memory Access |
N |
Execute Disable Bit |
Y |
Thermal Monitoring Technologies |
N |
Intel Trusted Execution Technology |
N |
Physical Address Extension (PAE) |
36 bit |
Processor package size |
37.5 mm |
Processor ARK ID |
46472 |
Embedded options available |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
N |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Hyper-Threading Technology |
Y |
Intel Clear Video Technology for MID |
N |
Intel vPro Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
Y |
Intel FDI Technology |
Y |
Enhanced Intel SpeedStep Technology |
Y |
Intel Demand Based Switching |
N |
Intel® Wireless Display (Intel® WiDi) |
N |
Supported instruction sets |
SSE4.2 |
Intel Rapid Storage Technology |
N |
Graphics & IMC lithography |
45 nm |
Intel Fast Memory Access |
N |
Intel® Quick Sync Video Technology |
N |
Intel® Insider™ |
N |
Intel 64 |
Y |
Intel Clear Video Technology |
N |
Intel Dual Display Capable Technology |
Y |
CPU configuration (max) |
1 |
Intel® Turbo Boost Technology |
N |
Intel Enhanced Halt State |
Y |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Processor
Thermal Design Power (TDP) |
73 W |
Maximum number of PCI Express lanes |
16 |
Processor codename |
Clarkdale |
PCI Express configurations |
2x8, 1x16 |
Processor cache type |
Smart Cache |
Processor frequency |
2.93 GHz |
Tcase |
72.6 °C |
Memory bandwidth supported by processor (max) |
21 GB/s |
Maximum internal memory supported by processor |
16 GB |
Number of Processing Die Transistors |
382 M |
PCI Express slots version |
2.0 |
Number of processors installed |
1 |
Processor cache |
4 MB |
Processor lithography |
32 nm |
Conflict Free processor |
N |
FSB Parity |
N |
CPU multiplier (bus/core ratio) |
22 |
Processor operating modes |
64-bit |
Stepping |
C2 |
Processor cores |
2 |
ECC supported by processor |
N |
Bus type |
DMI |
Expansion slots
PCI Express x1 slots |
1 |
PCI Express x16 slots |
1 |
PCI slots |
2 |
Other features
Floppy drive installed |
N |
TV tuner integrated |
N |
External drive bays |
1x 3.5", 2x 5.25" |
Internal drive bays |
2x 3.5" |
Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Networking features |
Gigabit Ethernet |
Networking
Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Wi-Fi |
N |
Memory
Memory clock speed |
1333 MHz |
Internal memory |
4 GB |
Internal memory type |
DDR3-SDRAM |
Maximum internal memory |
8 GB |
Packaging content
Handheld remote control |
N |
Mouse included |
Y |
Display included |
N |
Ports & interfaces
Headphone outputs |
1 |
Microphone in |
Y |
Serial ports quantity |
1 |
DVI port |
N |
Line-in |
Y |
Line-out |
Y |
DisplayPorts quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
Graphics
On-board graphics adapter family |
Intel HD Graphics |
On-board graphics adapter |
Y |
On-board graphics adapter base frequency |
733 MHz |
Number of displays supported (on-board graphics) |
2 |
Storage
Hard drive interface |
Serial ATA |
Number of hard drives installed |
1 |
Hard drive speed |
7200 RPM |
Total storage capacity |
320 GB |
Card reader integrated |
Y |
Design
Intel segment tagging |
Enterprise |
Cable lock slot |
Kensington |
Chassis type |
Tower |
Optical drive
Optical drive type |
DVD-RW |
Additionally
Ethernet LAN connection |
Y |
Intel AES New Instructions |
N |
System bus data transfer rate |
2.5 GT/s |
InTru™ 3D Technology |
N |
Processing die size |
81 mm² |
Ethernet LAN (RJ-45) ports quantity |
1 |

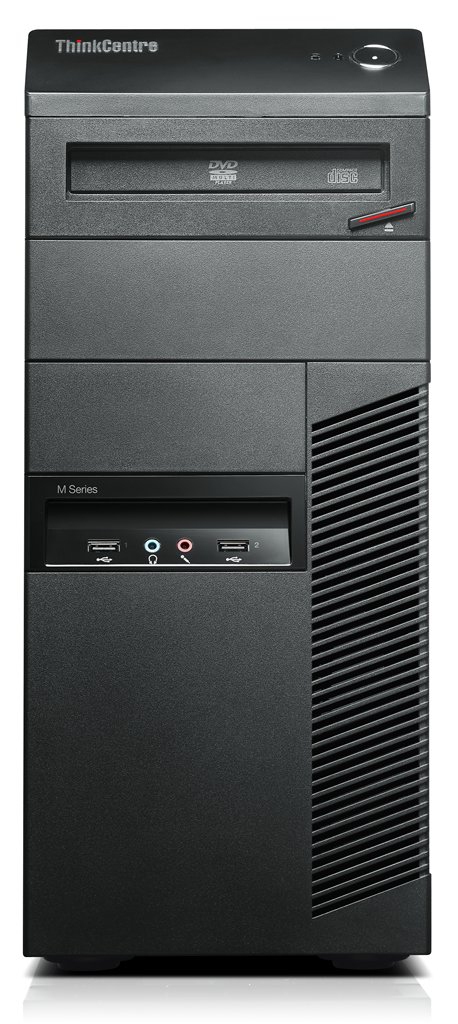

Lenovo ThinkCentre M90, ThinkCentre. Processor frequency: 2.93 GHz, Processor family: Intel Core i3-xxx, Processor model: i3-530. Internal memory: 4 GB, Internal memory type: DDR3-SDRAM, Maximum internal memory: 8 GB. Total storage capacity: 320 GB, Hard drive interface: Serial ATA, Hard drive speed: 7200 RPM. Optical drive type: DVD-RW. On-board graphics adapter model: Intel® HD Graphics, On-board graphics adapter family: Intel® HD Graphics, On-board graphics adapter base frequency: 733 MHz
