Ports & interfaces
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Line-in |
Y |
| Line-out |
Y |
| Headphone outputs |
1 |
| Microphone in |
Y |
Processor special features
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Idle States |
N |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Processor package size |
35 mm |
| Processor code |
SLA2G |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
Processor
| Tcase |
100 °C |
| ECC supported by processor |
N |
| Processor core voltage (AC) |
0.95 - 1.30 V |
| Processor cache |
1 MB |
| Processor lithography |
65 nm |
| Thermal Design Power (TDP) |
27 W |
| Processor codename |
Merom |
| Processor cache type |
L2 |
| Conflict Free processor |
N |
| Processor front side bus |
533 MHz |
| Number of Processing Die Transistors |
291 M |
| Tjunction |
100 °C |
| FSB Parity |
N |
| Processor operating modes |
64-bit |
| Bus type |
FSB |
| Stepping |
A1 |
| Processor cores |
1 |
| Processor frequency |
1.73 GHz |
Optical drive
| DVD read speed |
8 x |
| Optical drive type |
DVD-ROM |
Memory
| Internal memory type |
DDR-SDRAM |
| Maximum internal memory |
2 GB |
| Internal memory |
0.5 GB |
Other features
| Networking features |
Ethernet/Fast Ethernet/Gigabyte Ethernet |
| Security features |
-Boot sequence control\n-Diskette Boot inhibit\n-Diskette I/O control\n-Hardfile I/O control\n-Parallel I/O control\n-Power on password\n-Security slot (for attachment of optional cable lock)\n-Configuration password\n-Boot without keyboard or mouse |
Storage
| Hard drive speed |
7200 RPM |
| Total storage capacity |
80 GB |
| Hard drive interface |
Ultra-ATA/100 |
Performance
| Audio system |
SoundMAX Cadenza |
Additionally
| Intel AES New Instructions |
N |
| InTru™ 3D Technology |
N |
| Processing die size |
143 mm² |
| Ethernet LAN (RJ-45) ports quantity |
1 |

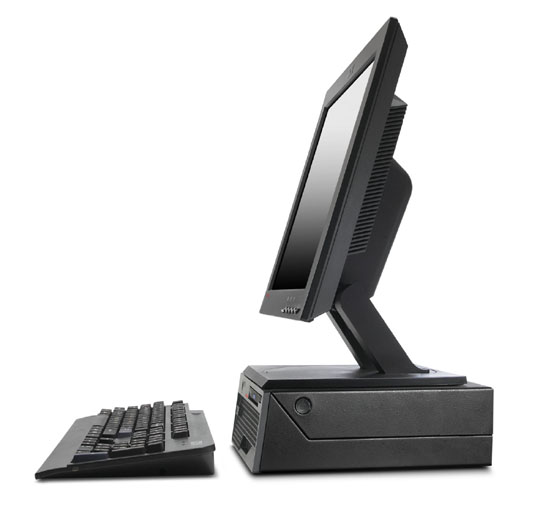

ThinkCentre S50, Intel® Pentium® 4 3.0GHz (1MB), 800MHz FSB, 512MB, 80GB 7200RPM IDE HDD, PCI Ultra Small Form Factor (1x2), Intel Extreme Graphics 2, 8x DVD-ROM, Intel Gigabit Ethernet, POV, Windows XP Professional
The ThinkCentre S50 desktops feature a tool-free chassis design, which simplifies and enhances usability. Encased in a durable steel chassis, components inside the machine, such as the hard disk and memory, can easily be removed by the customer, making the PC serviceable and upgradeable, helping to limit the downtime and cost associated with on-site support. Cable routing is bundled out of the way for easy access to components and cable ends and user touch points are colored blue to be easily identified by the user. ThinkCentre S50 desktops also feature an innovative "caddy" that surrounds the hard disk drive, locking it into place without the use of tools or screws. Rubber bumpers on the caddy decrease vibration and deliver quieter operation. Other mechanical improvements have been made to the overall design of the ThinkCentre PCs, including improved airflow and reduced noise.
The ThinkCentre S50 is a full-feature enterprise PC offering image and platform stability in an extremely small form factor. The ThinkCentre S50 is 62% smaller than a standard IBM desktop. It allows for flexible placement, either horizontally or vertically. The ThinkCentre S50 features allow customization and easy upgrading, which is uncommon for a small form factor PC.
