Storage
| Hard drive capacity |
160 GB |
| Hot-swap |
Y |
| Hard drive size |
3.5 " |
| Hard drive interface |
Serial ATA |
| Total storage capacity |
160 GB |
Processor
| Processor system type |
UP |
| Processor operating modes |
64-bit |
| CPU multiplier (bus/core ratio) |
9 |
| Embedded options available |
N |
| FSB Parity |
N |
| Number of Processing Die Transistors |
410 M |
| Processor front side bus |
1333 MHz |
| Conflict Free processor |
N |
| Processor cache type |
L2 |
| Processor cache |
6 MB |
| Number of processors installed |
1 |
| Processor cores |
2 |
| Thermal Design Power (TDP) |
65 W |
| Processor lithography |
45 nm |
| Processor package size |
37.5 mm |
| Processor codename |
Wolfdale |
| Processor code |
SLAPM |
| Thermal Monitoring Technologies |
Y |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Processor core voltage (AC) |
1.225 - 0.956 V |
| Bus type |
FSB |
| ECC supported by processor |
N |
| Tcase |
72.4 °C |
| Processor frequency |
3 GHz |
| Stepping |
C0 |
Processor special features
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
34694 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
Memory
| Memory clock speed |
800 MHz |
| Internal memory |
2 GB |
| Internal memory type |
DDR2-SDRAM |
| ECC |
Y |
| Maximum internal memory |
8 GB |
| Memory slots |
4 UDIMM |
Ports & interfaces
| Parallel ports quantity |
1 |
| Serial ports quantity |
2 |
Design
| Chassis type |
Tower |
| Optical drive type |
DVD-ROM |
Graphics
| Maximum graphics adapter memory |
64 MB |
Power
| Power supply |
410 W |
| Power supply input frequency |
50 - 60 Hz |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Processing die size |
107 mm² |
| Chipset |
Intel 3210 |
| InTru™ 3D Technology |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Intel AES New Instructions |
N |
| Graphics |
ES1000 |

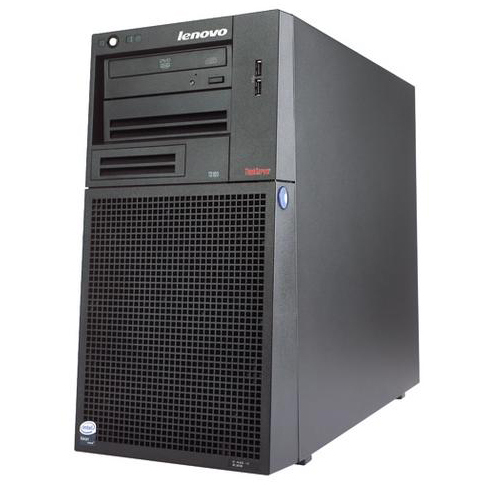

Intel Xeon Dual-Core E3110, 3.00Ghz, 6MB cache, 2GB, 160GB 7200RPM HDD, Tower(4x7), 16x Max DVD-ROM, Raid (0,1,10) Controller, Dual Gigabit Ethernet, 401W, no OS
Meet the new ThinkServer TS100, where first-class hardware is combined with software tools and services designed to deliver the best possible server experience for the small business owner. This single-processor tower server is an entry system for the very small business. Uptime is a known important and scalability is no problem. In addition, it’s complemented by services that offer the highest level of IT support. The customizable TS100 combines reliable hardware, ease of use and hassle-free support to give small businesses the ultimate amount of flexibility. The ThinkServer line ensures that data is kept secure with available disaster recovery offerings that improve upkeep across a small business, making it easy to centralize IT infrastructure. It’s even easier to enjoy the low cost without sacrificing performance, storage
or flexibility.
Coupled with reliable hardware, the new ThinkServer TS100 comes equipped with a suite of easy-to-use software, services and toolsets to make the setup, updating and management of your server painless and perfect. Just what you need to upgrade from a desktop computer and power your file/print, e-mail and web priorities — along with your ideas.
