Other features
Hard disk height |
88.9 mm |
Graphics adapter manufacturer |
NVIDIA |
Hard disk number of plates |
3 |
Networking topology |
10/100/1000 Mbps |
Maximum number of SMP processors |
2 |
Acoustic pressure emissions |
5 dB |
External drive bays |
1 |
Internal drive bays |
5 |
Drive bays |
3.5", 5.25" |
Networking features |
Gigabit Ethernet (10/100/1000) |
Memory
Memory clock speed |
1066 MHz |
ECC |
Y |
Memory layout (slots x size) |
2 x 2 GB |
Memory slots |
12x DIMM |
Internal memory type |
DDR3-SDRAM |
Maximum internal memory |
192 GB |
Internal memory |
4 GB |
Processor special features
Intel® Quick Sync Video Technology |
N |
Intel® Insider™ |
N |
Intel Rapid Storage Technology |
N |
Intel Fast Memory Access |
N |
Intel Flex Memory Access |
N |
Execute Disable Bit |
Y |
Idle States |
Y |
Thermal Monitoring Technologies |
N |
Intel Trusted Execution Technology |
N |
Physical Address Extension (PAE) |
40 bit |
Intel Virtualization Technology (VT-x) |
Y |
Processor package size |
42.5 mm |
Processor ARK ID |
40200 |
Processor code |
SLBFD |
Intel 64 |
Y |
Intel Clear Video Technology |
N |
Intel Dual Display Capable Technology |
N |
CPU configuration (max) |
2 |
Embedded options available |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
Intel® Smart Cache |
Y |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Hyper-Threading Technology |
Y |
Intel® Turbo Boost Technology |
Y |
Intel Enhanced Halt State |
Y |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel Clear Video Technology for MID |
N |
Intel vPro Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
Y |
Intel FDI Technology |
N |
Enhanced Intel SpeedStep Technology |
Y |
Intel Demand Based Switching |
Y |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Ports & interfaces
Firewire (IEEE 1394) ports |
2 |
Microphone in |
Y |
eSATA ports quantity |
1 |
Serial ports quantity |
1 |
Line-in |
Y |
Processor
Number of processors installed |
1 |
Processor boost frequency |
2.53 GHz |
Number of QPI links |
2 |
Processor cache |
8 MB |
Processor lithography |
45 nm |
Thermal Design Power (TDP) |
80 W |
Memory clock speeds supported by processor |
800, 1066 MHz |
Memory bandwidth supported by processor (max) |
25.6 GB/s |
Memory channels supported by processor |
Triple |
Conflict Free processor |
N |
FSB Parity |
N |
Number of Processing Die Transistors |
731 M |
CPU multiplier (bus/core ratio) |
17 |
Processor operating modes |
64-bit |
Processor system type |
DP |
Stepping |
D0 |
Processor cores |
4 |
Processor frequency |
2.26 GHz |
Maximum internal memory supported by processor |
144 GB |
Tcase |
72 °C |
ECC supported by processor |
Y |
Memory types supported by processor |
DDR3-SDRAM |
Bus type |
QPI |
Processor cache type |
Smart Cache |
Expansion slots
PCI slots |
2 |
PCI Express x4 slots |
1 |
PCI Express x16 slots |
2 |
Storage
Hard drive capacity |
500 GB |
Hard drive speed |
7200 RPM |
Card reader integrated |
Y |
RAID support |
Y |
Hard drive interface |
Serial ATA, Serial ATA II |
Number of hard drives installed |
1 |
Optical drive
Optical drive type |
DVD-RW |
Power
Power supply input voltage |
100-127V /200-240V V |
Power supply |
1060 W |
Additionally
InTru™ 3D Technology |
N |
Chipset |
Intel 5520 |
Processing die size |
263 mm² |
Graphics |
Quadro FX 580 |
System bus data transfer rate |
5.86 GT/s |
Intel AES New Instructions |
N |
Ethernet LAN (RJ-45) ports quantity |
2 |

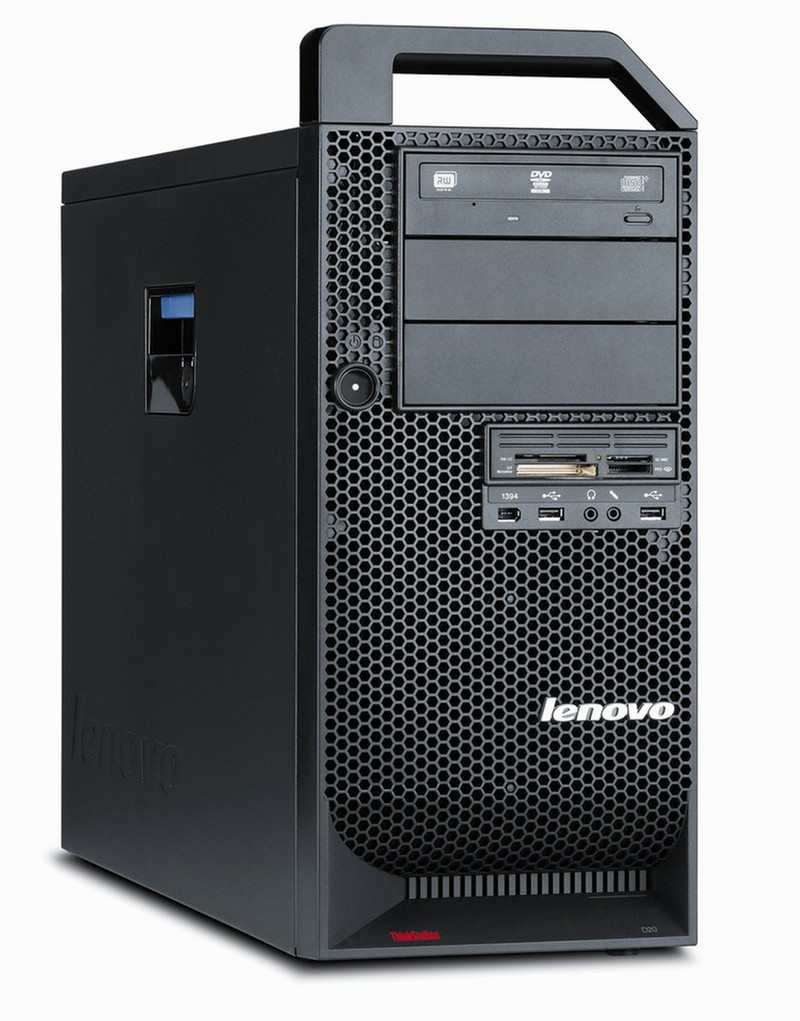

ThinkStation D20, Intel Xeon E5520 (2.26 GHz), 4GB DDR3, 500GB 3.5" SATA 7200rpm HDD, DVD +/- RW DL, NVIDIA Quadro FX 580, Dual Gigabit Ethernet, Windows Vista Business x64, Tower
All Lenovo ThinkStation workstations share common features that showcase Lenovo's dedication to quality, including quiet acoustics, a cool thermal design, RAID standard, back-lit front I/Os and tool-less upgrades. However, both the S20 and D20 also feature unique qualities that makes them a great match for your individual needs.
The single-processor Intel Xeon ThinkStation S20 is the ideal mid-range workstation solution. Offering a robust 625W power supply, even the S20 allows for easy upgrades and offers support for two high-end powered graphics adapters. It is ideal for 2D digital content creators and users of mid-range CAD and EDA applications.
The dual-processor Intel Xeon ThinkStation D20 is a computational powerhouse. Offering 12 DIMM slots and RDIMM technology, the D20 supports up to 192GB of blazing-fast DDR3 memory and is perfect for users of memory and CPU-hungry applications like high-end CAD/CAM/ CAE, 3D digital content creation and professional video editing software. The D20 also offers 1394 and SAS support standard, support for NVIDIA's Tesla C1060 GPU computing solution and NVIDIA SL on select Quadro cards, as well as more expandability options than the S Series.
Professional strength.
Computing muscle. The latest Intel® processors, including Intel Xeon® CPUs with Turbo Boost Technology, aren’t just fast, they’re designed for intelligent performance and energy efficiency, automatically adjusting based on your usage needs. To amp up responsiveness, we've made room for as many as 12 DIMM slots on select workstations.
Cutting-edge graphics solutions. Select ThinkStation workstations integrate NVIDIA® Quadro® professional graphics with SLI technology and the Tesla™ high-performance computing solution. The result? A powerful, versatile solution engineered to meet your high-performance graphics and computing demands.
ISV-certified. Lenovo works closely with leading software partners, and ThinkStation workstations have hundreds of independent software vendor (ISV) certifications, ensuring that you have the performance you need to run the world's most demanding applications.
More to see. With support for up to a whopping eight monitors at once, ThinkStation C20 and C20x help you analyze more, create more and earn more—faster.
Less waiting. Lenovo Enhanced Experience for Windows® 7 PCs boast significantly faster boot-up and shutdown times as well as hardware and software innovations to help you work more productively.
