Other features
Graphics adapter manufacturer |
NVIDIA |
Keyboard type |
USB |
Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Acoustic pressure emissions |
24 dB |
External drive bays |
1x 3.5", 3x 5.25" |
Internal drive bays |
5x 3.5" |
Networking features |
Gigabit Ethernet (10/100/1000) |
Ports & interfaces
Serial ports quantity |
1 |
PS/2 ports quantity |
2 |
Firewire (IEEE 1394) ports |
1 |
Headphone outputs |
1 |
Microphone in |
Y |
eSATA ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
Packaging content
Display included |
N |
Keyboard number of keys |
104 |
Mouse included |
Y |
Processor special features
Intel Virtualization Technology (VT-x) |
Y |
Intel 64 |
Y |
Intel FDI Technology |
N |
Enhanced Intel SpeedStep Technology |
Y |
Intel Demand Based Switching |
Y |
Intel Rapid Storage Technology |
N |
Intel Fast Memory Access |
N |
Intel Flex Memory Access |
N |
Execute Disable Bit |
Y |
Idle States |
Y |
Thermal Monitoring Technologies |
N |
Intel Trusted Execution Technology |
Y |
Physical Address Extension (PAE) |
40 bit |
Processor package size |
42.5 mm |
Processor ARK ID |
47923 |
Intel® Quick Sync Video Technology |
N |
Intel® Insider™ |
N |
Intel Clear Video Technology |
N |
Intel Dual Display Capable Technology |
N |
CPU configuration (max) |
2 |
Embedded options available |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Hyper-Threading Technology |
Y |
Intel® Turbo Boost Technology |
Y |
Intel Enhanced Halt State |
Y |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel Clear Video Technology for MID |
N |
Intel vPro Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
Y |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Supported instruction sets |
SSE4.2 |
Processor
CPU multiplier (bus/core ratio) |
20 |
Stepping |
B1 |
Processor cores |
4 |
Tcase |
77.6 °C |
ECC supported by processor |
Y |
Processor boost frequency |
2.93 GHz |
Number of QPI links |
2 |
Processor cache |
12 MB |
Processor lithography |
32 nm |
Thermal Design Power (TDP) |
80 W |
Processor cache type |
Smart Cache |
Memory clock speeds supported by processor |
800, 1066 MHz |
Memory channels supported by processor |
Triple |
Conflict Free processor |
N |
FSB Parity |
N |
Processor operating modes |
64-bit |
Memory bandwidth supported by processor (max) |
25.6 GB/s |
Processor frequency |
2.66 GHz |
Memory types supported by processor |
DDR3-SDRAM |
Bus type |
QPI |
Maximum internal memory supported by processor |
288 GB |
Storage
Card reader integrated |
Y |
Hard drive capacity |
500 GB |
Hard drive speed |
7200 RPM |
RAID support |
Y |
Hard drive interface |
Serial ATA |
Expansion slots
PCI Express x1 slots |
2 |
PCI Express x4 slots |
1 |
PCI Express x16 slots |
2 |
Memory
Memory clock speed |
1066 MHz |
Internal memory type |
DDR3-SDRAM |
Maximum internal memory |
192 GB |
Internal memory |
6 GB |
Graphics
Maximum graphics adapter memory |
0.768 GB |
Optical drive
Optical drive type |
DVD-RW |
Additionally
InTru™ 3D Technology |
N |
Graphics |
Quadro FX 1800 |
Intel AES New Instructions |
Y |
Ethernet LAN (RJ-45) ports quantity |
2 |
System bus data transfer rate |
5.86 GT/s |

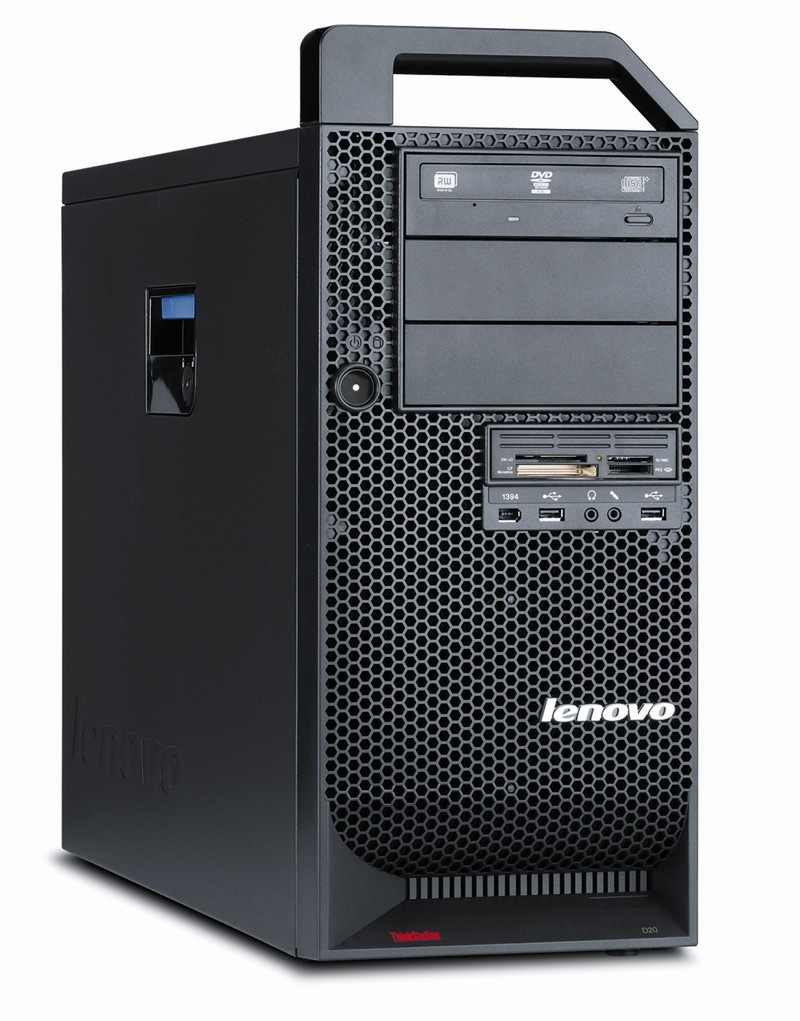

ThinkStation D20 - Intel Xeon E5640 (2.66 GHz), 6GB DDR3 RAM, 500GB SATA HDD, NVIDIA Quadro FX 1800 768MB, DVD-RW, Gigabit Ethernet, 1060W, 24950, Windows 7 Professional
From Lenovo’s exceptional engineers comes the next generation of ThinkStation®, designed exclusively for specialized professionals using graphically and computationally intensive applications. Its groundbreaking design ramps up parallel workflows, enabling professional users to quickly bring their ideas to life.
Equipped with the latest technology from Intel®, the ThinkStation delivers performance that is simply unattainable with a standard desktop PC. The ThinkStation S20 and D20's powerful and efficient Intel® Xeon® processors speed through even the toughest workloads. Sporting up to eight powerful processing cores, the new ThinkStation comes fully equipped with an on-chip memory controller and Intel® QuickPath Interconnect, allowing you to innovate faster than ever before.
The Lenovo ThinkStation has an environmentally conscious, usercentric design that ultimately results in increased productivity. In addition, the performance and quality-focused Lenovo ThinkStation supports ThinkVantage® Technologies such as Rescue and Recovery™ and Client Security Solution, providing users with superior data security.
EXTREME PERFORMANCE
- Brand-new Intel® Xeon® CPUs on both S and D series workstations deliver unmatched performance with incredible efficiency;
- ThinkStation workstations come armed with a full line of bleeding-edge graphics technologies, including the NVIDIA® QUADRO® line, supporting SLI on select D Series configurations, and ATI® FirePro™ graphics;
- With up to a 1060W power supply on the D series, ThinkStation delivers all the juice your key components need to maintain peak performance.
QUIET AN D RELIA BLE
- The ThinkStation’s 24db idle operating noise level makes it nearly undetectable;
- ThinkStation's unique thermal design is engineered for maximum cool air delivery to key components, reducing the risk of hardware failure.
EN VIRONMENTALLY RESPONSI BLE
- Both the S20 and D20 are EPEAT™ GOLD, GREENGUARD® Certified;
- The ThinkStation S20 and D20 contain more than 50% recycled plastics, including 26% post-consumer content;
- All ThinkStation models are RoHS compliant;
- Many ThinkStation models are Energy Star® 5.0 compliant.
EN GINEERE D FOR THE ULTIMATE USER EXPERIENCE
- The ThinkStation’s secure premium cover latch makes the cover easily removable, allowing users to make instant upgrades;
- The ThinkStation’s illuminated front panel and icons make ports easily accessible, especially in studio and office environments;
- The ThinkStation’s ergonomically designed, removable handle makes it easy to carry, move and manage;
- Rack implementation is possible both in the ThinkStation S20 and the ThinkStation D20.
