Processor special features
Intel Trusted Execution Technology |
N |
Physical Address Extension (PAE) |
36 bit |
Intel Virtualization Technology (VT-x) |
Y |
Processor package size |
42.5 mm |
Processor ARK ID |
39718 |
Processor code |
SLBEW |
Intel 64 |
Y |
Intel Clear Video Technology |
N |
Intel Dual Display Capable Technology |
N |
CPU configuration (max) |
1 |
Embedded options available |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
N |
Intel® Smart Cache |
Y |
Intel Rapid Storage Technology |
N |
Intel Fast Memory Access |
N |
Intel Flex Memory Access |
N |
Execute Disable Bit |
Y |
Idle States |
Y |
Thermal Monitoring Technologies |
N |
Intel® Quick Sync Video Technology |
N |
Intel® Insider™ |
N |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Hyper-Threading Technology |
Y |
Intel® Turbo Boost Technology |
Y |
Intel Enhanced Halt State |
Y |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel Clear Video Technology for MID |
N |
Intel vPro Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
Y |
Intel FDI Technology |
N |
Enhanced Intel SpeedStep Technology |
Y |
Intel Demand Based Switching |
Y |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Supported instruction sets |
SSE4.2 |
Processor
Thermal Design Power (TDP) |
130 W |
Memory clock speeds supported by processor |
800, 1066 MHz |
Memory channels supported by processor |
Triple |
Conflict Free processor |
N |
Memory bandwidth supported by processor (max) |
25.6 GB/s |
FSB Parity |
N |
Processor system type |
UP |
Stepping |
D0 |
Processor front side bus |
1066 MHz |
Processor cache type |
Smart Cache |
Number of Processing Die Transistors |
731 M |
Number of processors installed |
1 |
Processor core voltage (AC) |
0.800 - 1.225 V |
Processor boost frequency |
2.93 GHz |
Number of QPI links |
1 |
Processor cache |
8 MB |
Processor lithography |
45 nm |
Processor codename |
Bloomfield |
CPU multiplier (bus/core ratio) |
20 |
Processor operating modes |
64-bit |
Processor cores |
4 |
Processor frequency |
2.66 GHz |
Maximum internal memory supported by processor |
24 GB |
Tcase |
67.9 °C |
ECC supported by processor |
Y |
Memory types supported by processor |
DDR3-SDRAM |
Bus type |
QPI |
Expansion slots
PCI Express x1 slots |
1 |
PCI Express x4 slots |
1 |
PCI Express x16 slots |
2 |
Other features
Processor manufacturer |
Intel |
External drive bays |
3.5" x 1, 5.25" x 2 |
Internal drive bays |
3.5" x 3 |
Speakers |
Y |
Storage
Hard drive capacity |
250 GB |
Hard drive speed |
7200 RPM |
Card reader integrated |
N |
Hard drive interface |
Serial ATA |
Memory
Maximum internal memory |
12 GB |
Internal memory |
4 GB |
Ports & interfaces
Firewire (IEEE 1394) ports |
1 |
Headphone outputs |
1 |
Microphone in |
Y |
eSATA ports quantity |
1 |
Serial ports quantity |
1 |
Performance
Motherboard form factor |
ATX |
Additionally
InTru™ 3D Technology |
N |
Processing die size |
263 mm² |
Graphics |
Quadro FX 1800 |
Intel AES New Instructions |
N |
System bus data transfer rate |
4.80 GT/s |
Ethernet LAN (RJ-45) ports quantity |
1 |

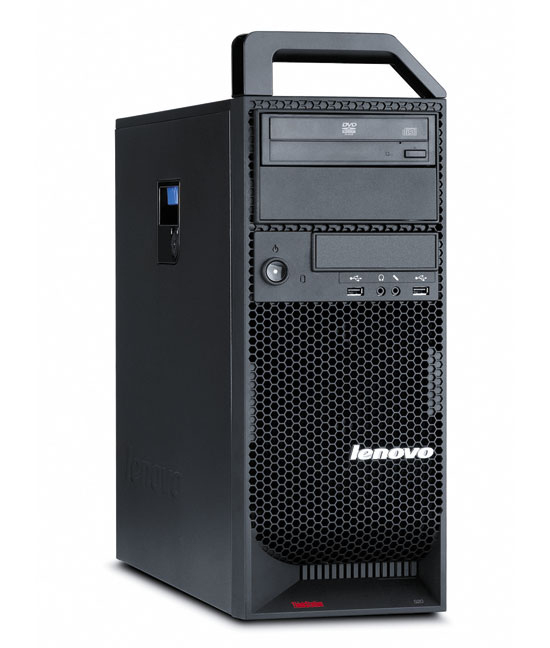

ThinkStation S20, W3520, 4GB, 250GB SATA, DVD Recordable, FX1800, Windows XP Professional 32, Internal Speaker, IEEE 1394
Unleash your potential with ThinkStation
Lenovo's flagship performance machine, ThinkStation® workstation is exceptionally engineered for professional users of graphically and computationally intensive applications who require a level of performance unattainable with a standard desktop computer. Powered by Intel® Xeon® processor technology, with graphics by NVIDIA Quadro® and ATI FirePro™, ThinkStation workstation offers the professional-strength performance you need to do more, faster.
In developing the ultimate workstation, we took our legendary Think® product design and created two powerful, highly versatile models - the single-processor S Series workstations and the dual-processor D Series workstations. Both feature the latest technologies from Intel®, NVIDIA®, ATI™ and our own ThinkVantage® Technologies. Both are ISV Certified and optimized to run the world's most demanding workstation applications smoothly and worry-free. And, like all Think® brand products, ThinkStation models employ smart features and rock-solid reliability you can count on to make a day at the office like a walk in the park.
Introducing ThinkStation 2.0
From the exceptional engineers of Lenovo comes the next generation of ThinkStation workstation. The new ThinkStation S20 and D20 offer the following enhancements:
- Faster, more efficient architecture with the latest Intel® workstation technology.
- Addition of ATI FirePro™ support.
- Quieter user experience with optimized fan placement and speed control.
- Increased reliability with optimized thermal design.
- Improved cable management.
- Faster memory.
- More environmentally friendly: now EPEAT Gold qualified, with up to 26% post-consumer recycled plastics.
A smarter workstation
ThinkStation workstations offer a user-centric, environmentally conscious design that boosts productivity and ultimately results in increased productivity for your business. Enjoy the following smart design features:
- Ergonomic removable top handle.
- Front-access media ports with illuminated icons and a recessed power button.
- Superior cable management.
- Premium side cover latch for easy access to internal components.
- Innovative thermal design with optimized fan placement, for a cooler, quieter, more reliable PC.
- All ThinkStation models are rack-mountable.
ISV certified
Lenovo works closely with leading software partners, and ThinkStation workstations have hundreds of independent software vendor (ISV) certifications - ensuring you have the performance you need to run the world's most demanding workstation applications.
Stable, safe and secure
Enjoy peace of mind built into every ThinkStation workstations thanks to ThinkVantage® Technologies. Advanced security features like the available fingerprint reader keyboard and built-in ThinkVantage® Client Security Solution help to secure your data while the optimized thermal design reduces the risk of hardware failure for unmatched reliability. The ThinkVantage® Productivity Center automates updates and maintenance tasks, and places system tools and services no more than a press or a click away.
All ThinkStation models undergo a series of rigorous voltage, shock, vibration, and drop tests before they ever reach your desk, ensuring the rock-solid reliability that is the hallmark of the Think brand. And every ThinkStation model is backed by our standard warranty and Lenovo's award-winning customer support.
