Performance
| Motherboard form factor |
ATX |
| Audio system |
7.1 HD Audio |
Other features
| Maximum number of SMP processors |
1 |
| External drive bays |
1 x 3.5", 2 x 5.25" |
| Rack mounting |
Y |
| Networking features |
Gigabit Ethernet (10/100/1000) |
| Internal drive bays |
3 x 3.5" |
Processor
| Number of processors installed |
1 |
| CPU multiplier (bus/core ratio) |
15 |
| Processor operating modes |
64-bit |
| Processor system type |
DP |
| Stepping |
D0 |
| Processor cores |
4 |
| Tcase |
76 °C |
| ECC supported by processor |
Y |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
QPI |
| Number of QPI links |
2 |
| Processor cache |
4 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
80 W |
| Memory clock speeds supported by processor |
800 MHz |
| Memory channels supported by processor |
Triple |
| Conflict Free processor |
N |
| FSB Parity |
N |
| Processor frequency |
2 GHz |
| Memory bandwidth supported by processor (max) |
19.2 GB/s |
| Maximum internal memory supported by processor |
144 GB |
| Processor cache type |
Smart Cache |
Expansion slots
| PCI slots |
1 |
| PCI Express x1 slots |
1 |
| PCI Express x4 slots |
1 |
| PCI Express x16 slots |
2 |
Processor special features
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
40 bit |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
42.5 mm |
| Processor ARK ID |
40711 |
| Processor code |
SLBF9 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Physical Address Extension (PAE) |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
2 |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Smart Cache |
Y |
| Intel Demand Based Switching |
Y |
| Intel® Wireless Display (Intel® WiDi) |
N |
Storage
| Hard drive capacity |
150 GB |
| Hard drive speed |
10000 RPM |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA |
| Number of hard drives installed |
1 |
Memory
| Internal memory |
4 GB |
| ECC |
Y |
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
2 x 2 GB |
| Maximum internal memory |
12 GB |
| Internal memory type |
DDR3-SDRAM |
Ports & interfaces
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| Serial ports quantity |
1 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| InTru™ 3D Technology |
N |
| Intel AES New Instructions |
N |
| System bus data transfer rate |
4.8 GT/s |

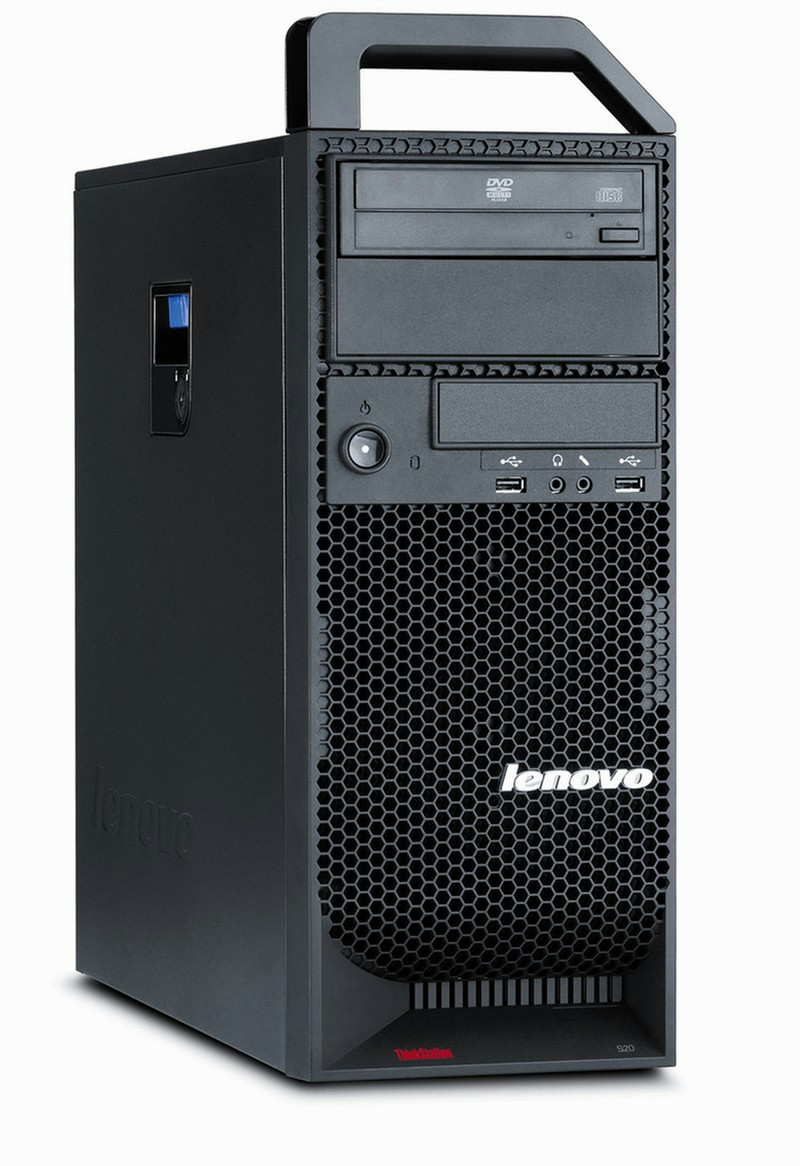

ThinkStation S20, Intel Xeon E5504, DDR3 4GB, 150GB, SATA, Gigabit Ethernet, Black
All Lenovo ThinkStation workstations share common features that showcase Lenovo's dedication to quality, including quiet acoustics, a cool thermal design, RAID standard, back-lit front I/Os and tool-less upgrades. However, both the S20 and D20 also feature unique qualities that makes them a great match for your individual needs.
The single-processor Intel Xeon ThinkStation S20 is the ideal mid-range workstation solution. Offering a robust 625W power supply, even the S20 allows for easy upgrades and offers support for two high-end powered graphics adapters. It is ideal for 2D digital content creators and users of mid-range CAD and EDA applications.
The dual-processor Intel Xeon ThinkStation D20 is a computational powerhouse. Offering 12 DIMM slots and RDIMM technology, the D20 supports up to 192GB of blazing-fast DDR3 memory and is perfect for users of memory and CPU-hungry applications like high-end CAD/CAM/ CAE, 3D digital content creation and professional video editing software. The D20 also offers 1394 and SAS support standard, support for NVIDIA's Tesla C1060 GPU computing solution and NVIDIA SL on select Quadro cards, as well as more expandability options than the S Series.
