Processor
Processor cache |
4 MB |
Processor lithography |
45 nm |
Thermal Design Power (TDP) |
80 W |
Memory clock speeds supported by processor |
800 MHz |
Memory channels supported by processor |
Triple |
CPU multiplier (bus/core ratio) |
15 |
Processor operating modes |
64-bit |
Processor system type |
DP |
Processor cores |
4 |
Processor frequency |
2 GHz |
Memory types supported by processor |
DDR3-SDRAM |
Memory bandwidth supported by processor (max) |
19.2 GB/s |
Maximum internal memory supported by processor |
144 GB |
Processor cache type |
Smart Cache |
Number of QPI links |
2 |
Conflict Free processor |
N |
FSB Parity |
N |
Stepping |
D0 |
Tcase |
76 °C |
ECC supported by processor |
Y |
Bus type |
QPI |
Processor special features
Intel Fast Memory Access |
N |
Intel Flex Memory Access |
N |
Execute Disable Bit |
Y |
Thermal Monitoring Technologies |
N |
Intel Trusted Execution Technology |
N |
Physical Address Extension (PAE) |
40 bit |
Intel Virtualization Technology (VT-x) |
Y |
Intel® Quick Sync Video Technology |
N |
Intel® Insider™ |
N |
Physical Address Extension (PAE) |
Y |
Intel® Smart Cache |
Y |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Hyper-Threading Technology |
N |
Intel® Turbo Boost Technology |
N |
Intel Enhanced Halt State |
Y |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel Clear Video Technology for MID |
N |
Intel vPro Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
Y |
Intel FDI Technology |
N |
Enhanced Intel SpeedStep Technology |
Y |
Intel Rapid Storage Technology |
N |
Idle States |
Y |
Processor package size |
42.5 mm |
Processor ARK ID |
40711 |
Processor code |
SLBF9 |
Intel 64 |
Y |
Intel Clear Video Technology |
N |
Intel Dual Display Capable Technology |
N |
CPU configuration (max) |
2 |
Embedded options available |
Y |
Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
Intel Demand Based Switching |
Y |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Graphics
Maximum graphics adapter memory |
0.256 GB |
Storage
Card reader integrated |
Y |
Hard drive interface |
Serial ATA |
Hard drive capacity |
500 GB |
Hard drive speed |
7200 RPM |
Memory
Internal memory |
3 GB |
Memory clock speed |
1066 MHz |
Memory layout (slots x size) |
1 x 1 + 1 x 2 GB |
Internal memory type |
DDR3-SDRAM |
Maximum internal memory |
12 GB |
Ports & interfaces
Serial ports quantity |
1 |
Headphone outputs |
1 |
Microphone in |
Y |
eSATA ports quantity |
1 |
Packaging content
Display included |
N |
Mouse included |
Y |
Other features
Keyboard type |
Preferred Pro USB |
Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Networking features |
Gigabit Ethernet (10/100/1000) |
Optical drive
Optical drive type |
DVD-RW |
Additionally
InTru™ 3D Technology |
N |
Graphics |
FirePro V3700 |
System bus data transfer rate |
4.8 GT/s |
Intel AES New Instructions |
N |
Ethernet LAN (RJ-45) ports quantity |
1 |

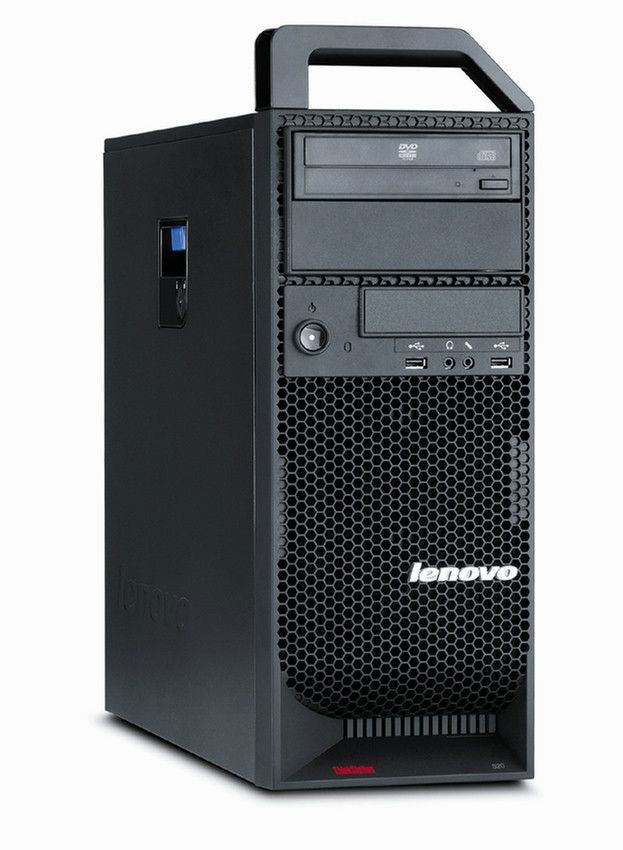

ThinkStation S20 - Intel Xeon E5504 (2.0 GHz), 3GB DDR3 RAM, 500GB SATA HDD, ATI FirePro V3700 256MB, Tower (5x6), DVD-RW, Gigabit Ethernet, 625W, 16330g, Windows XP Professional
From Lenovo’s exceptional engineers comes the next generation of ThinkStation®, designed exclusively for specialized professionals using graphically and computationally intensive applications. Its groundbreaking design ramps up parallel workflows, enabling professional users to quickly bring their ideas to life.
Equipped with the latest technology from Intel®, the ThinkStation delivers performance that is simply unattainable with a standard desktop PC. The ThinkStation S20 and D20's powerful and efficient Intel® Xeon® processors speed through even the toughest workloads. Sporting up to eight powerful processing cores, the new ThinkStation comes fully equipped with an on-chip memory controller and Intel® QuickPath Interconnect, allowing you to innovate faster than ever before.
The Lenovo ThinkStation has an environmentally conscious, usercentric design that ultimately results in increased productivity. In addition, the performance and quality-focused Lenovo ThinkStation supports ThinkVantage® Technologies such as Rescue and Recovery™ and Client Security Solution, providing users with superior data security.
EXTREME PERFORMANCE
- Brand-new Intel® Xeon® CPUs on both S and D series workstations deliver unmatched performance with incredible efficiency;
- ThinkStation workstations come armed with a full line of bleeding-edge graphics technologies, including the NVIDIA® QUADRO® line, supporting SLI on select D Series configurations, and ATI® FirePro™ graphics;
- With up to a 1060W power supply on the D series, ThinkStation delivers all the juice your key components need to maintain peak performance.
QUIET AN D RELIA BLE
- The ThinkStation’s 24db idle operating noise level makes it nearly undetectable;
- ThinkStation's unique thermal design is engineered for maximum cool air delivery to key components, reducing the risk of hardware failure.
EN VIRONMENTALLY RESPONSI BLE
- Both the S20 and D20 are EPEAT™ GOLD, GREENGUARD® Certified;
- The ThinkStation S20 and D20 contain more than 50% recycled plastics, including 26% post-consumer content;
- All ThinkStation models are RoHS compliant;
- Many ThinkStation models are Energy Star® 5.0 compliant.
EN GINEERE D FOR THE ULTIMATE USER EXPERIENCE
- The ThinkStation’s secure premium cover latch makes the cover easily removable, allowing users to make instant upgrades;
- The ThinkStation’s illuminated front panel and icons make ports easily accessible, especially in studio and office environments;
- The ThinkStation’s ergonomically designed, removable handle makes it easy to carry, move and manage;
- Rack implementation is possible both in the ThinkStation S20 and the ThinkStation D20.
