Design
| Number of 5.25" bays |
2 |
| Cable lock slot |
Y |
| Chassis type |
Tower |
| Number of 3.5" bays |
4 |
Processor special features
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
36 bit |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
42.5 mm |
| Processor ARK ID |
39720 |
| Physical Address Extension (PAE) |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Supported instruction sets |
SSE4.2 |
Memory
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
1 x 2 GB |
| Maximum internal memory |
12 GB |
| Internal memory |
2 GB |
| ECC |
Y |
| Memory slots |
6x DIMM |
| Internal memory type |
DDR3-SDRAM |
Processor
| Memory clock speeds supported by processor |
800, 1066 MHz |
| CPU multiplier (bus/core ratio) |
23 |
| Processor operating modes |
64-bit |
| Tcase |
67.9 °C |
| ECC supported by processor |
Y |
| Number of processors installed |
1 |
| Processor core voltage (AC) |
1.225 V |
| Processor boost frequency |
3.33 GHz |
| Number of QPI links |
1 |
| Processor cache |
8 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
130 W |
| Processor codename |
Bloomfield |
| Memory channels supported by processor |
Triple |
| Conflict Free processor |
N |
| FSB Parity |
N |
| Stepping |
D0 |
| Processor cores |
4 |
| Processor frequency |
3.06 GHz |
| Maximum internal memory supported by processor |
24 GB |
| Processor cache type |
Smart Cache |
| Number of Processing Die Transistors |
731 M |
| PCI Express slots version |
2.0 |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
QPI |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
Storage
| Hard drive capacity |
500 GB |
| Hard drive interface |
Serial ATA |
| Hard drive speed |
7200 RPM |
| RAID support |
Y |
| Number of hard drives installed |
1 |
Ports & interfaces
| Headphone outputs |
1 |
| eSATA ports quantity |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| Serial ports quantity |
1 |
Power
| Power supply input frequency |
50 - 60 Hz |
| Power supply |
625 W |
| Power supply input voltage |
100 - 240 V |
Software
| Operating system architecture |
64-bit |
Expansion slots
| PCI slots |
1 |
| PCI Express x1 slots |
1 |
| PCI Express x4 slots |
1 |
| PCI Express x16 slots |
2 |
Other features
| Processor manufacturer |
Intel |
| Graphics adapter family |
NVIDIA |
| Networking features |
Gigabit Ethernet (10/100/1000) |
Graphics
| Maximum graphics adapter memory |
2.048 GB |
Optical drive
| Optical drive type |
DVD-RW |
Additionally
| InTru™ 3D Technology |
N |
| System bus data transfer rate |
4.8 GT/s |
| Chipset |
Intel X58 Express |
| Processing die size |
263 mm² |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

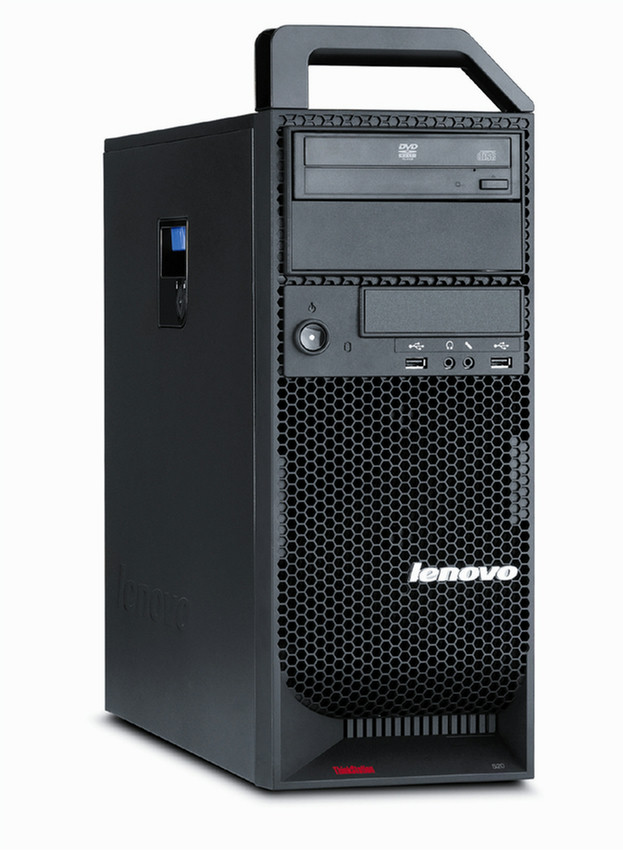

Intel Xeon W3550 (3.06 GHz), 2GB DDR3 RAM, 500GB SATA HDD, DVD-RW, Gigabit Ethernet, Tower, 625W, 14500g, Windows 7 Professional 64-bit
From Lenovo’s exceptional engineers comes the next generation of ThinkStation®, designed exclusively for specialized professionals using graphically and computationally intensive applications. Its groundbreaking design ramps up parallel workflows, enabling professional users to quickly bring their ideas to life.
Equipped with the latest technology from Intel®, the ThinkStation delivers performance that is simply unattainable with a standard desktop PC. The ThinkStation S20 and D20's powerful and efficient Intel® Xeon® processors speed through even the toughest workloads. Sporting up to eight powerful processing cores, the new ThinkStation comes fully equipped with an on-chip memory controller and Intel® QuickPath Interconnect, allowing you to innovate faster than ever before.
The Lenovo ThinkStation has an environmentally conscious, usercentric design that ultimately results in increased productivity. In addition, the performance and quality-focused Lenovo ThinkStation supports ThinkVantage® Technologies such as Rescue and Recovery™ and Client Security Solution, providing users with superior data security.
EXTREME PERFORMANCE
- Brand-new Intel® Xeon® CPUs on both S and D series workstations deliver unmatched performance with incredible efficiency;
- ThinkStation workstations come armed with a full line of bleeding-edge graphics technologies, including the NVIDIA® QUADRO® line, supporting SLI on select D Series configurations, and ATI® FirePro™ graphics;
- With up to a 1060W power supply on the D series, ThinkStation delivers all the juice your key components need to maintain peak performance.
QUIET AN D RELIA BLE
- The ThinkStation’s 24db idle operating noise level makes it nearly undetectable;
- ThinkStation's unique thermal design is engineered for maximum cool air delivery to key components, reducing the risk of hardware failure.
EN VIRONMENTALLY RESPONSI BLE
- Both the S20 and D20 are EPEAT™ GOLD, GREENGUARD® Certified;
- The ThinkStation S20 and D20 contain more than 50% recycled plastics, including 26% post-consumer content;
- All ThinkStation models are RoHS compliant;
- Many ThinkStation models are Energy Star® 5.0 compliant.
EN GINEERE D FOR THE ULTIMATE USER EXPERIENCE
- The ThinkStation’s secure premium cover latch makes the cover easily removable, allowing users to make instant upgrades;
- The ThinkStation’s illuminated front panel and icons make ports easily accessible, especially in studio and office environments;
- The ThinkStation’s ergonomically designed, removable handle makes it easy to carry, move and manage;
- Rack implementation is possible both in the ThinkStation S20 and the ThinkStation D20.
