Processor special features
| Idle States |
Y |
| Thermal Monitoring Technologies |
N |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
36 bit |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
42.5 mm |
| Processor ARK ID |
39720 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Physical Address Extension (PAE) |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
1 |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Supported instruction sets |
SSE4.2 |
Ports & interfaces
| Line-in |
Y |
| Serial ports quantity |
1 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| DVI-I ports quantity |
1 |
| DisplayPorts quantity |
2 |
Processor
| ECC supported by processor |
Y |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Maximum internal memory supported by processor |
24 GB |
| Processor cache type |
Smart Cache |
| Number of Processing Die Transistors |
731 M |
| Number of processors installed |
1 |
| Processor core voltage (AC) |
1.225 V |
| Processor boost frequency |
3.33 GHz |
| Number of QPI links |
1 |
| Processor cache |
8 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
130 W |
| Processor codename |
Bloomfield |
| Memory clock speeds supported by processor |
800, 1066 MHz |
| Memory channels supported by processor |
Triple |
| Conflict Free processor |
N |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
23 |
| Processor operating modes |
64-bit |
| Stepping |
D0 |
| Processor cores |
4 |
| Processor frequency |
3.06 GHz |
| Tcase |
67.9 °C |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
QPI |
Other features
| Graphics adapter family |
NVIDIA |
| Processor manufacturer |
Intel |
| Rack mounting |
N |
| Networking features |
Gigabit Ethernet (10/100/1000) |
Memory
| Internal memory type |
DDR3-SDRAM |
| ECC |
Y |
| Memory clock speed |
1333 MHz |
| Memory slots |
6x DIMM |
| Maximum internal memory |
48 GB |
| Internal memory |
4 GB |
Design
| Number of 5.25" bays |
2 |
| Number of 3.5" bays |
4 |
| Chassis type |
Tower |
Optical drive
| BD interface type |
SATA |
| Optical drive type |
DVD Super Multi DL |
Software
| Operating system architecture |
64-bit |
Expansion slots
| PCI slots |
1 |
| PCI Express x16 slots |
2 |
| PCI Express x1 slots |
1 |
| PCI Express x4 slots |
1 |
Graphics
| Maximum graphics adapter memory |
1.024 GB |
Storage
| Hard drive capacity |
150 GB |
| Hard drive speed |
10000 RPM |
| Number of hard drives installed |
1 |
| Card reader integrated |
Y |
| Hard drive interface |
Serial Attached SCSI (SAS) |
Additionally
| Chipset |
Intel X58 Express |
| Intel AES New Instructions |
N |
| System bus data transfer rate |
4.8 GT/s |
| Processing die size |
263 mm² |
| InTru™ 3D Technology |
N |
| Graphics |
Quadro 2000 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

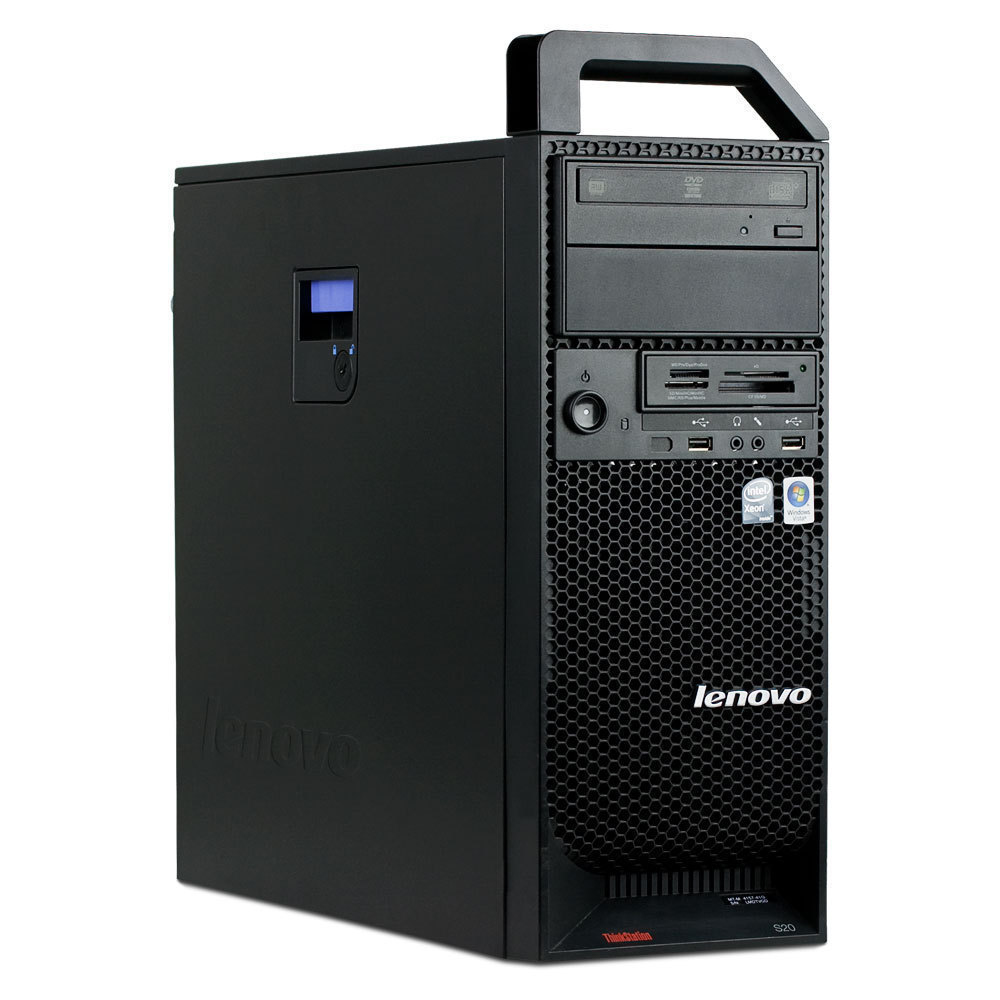

Intel Xeon Quad-Core Processor W3550(3.06GHz), 4GB, 150GB HDD, 1GB nVIDIA Quadro 2000, Gigabit Ethernet, Windows 7 Professional 64
Do more, faster.
Whether your work involves manufacturing, design, science, or finance, our ThinkStation workstations deliver the power you need to do more than any standard desktop. The latest Intel® processors, including Intel Xeon® CPUs with Turbo Boost Technology, are beyond fast - designed for intelligent performance and energy efficiency, these processors automatically adjust based on your usage needs. To amp up responsiveness, we've made room for as many as 12 DIMM slots on select workstations. Plus, we've added DDR3 Error-Code Correcting (ECC) memory, which virtually eliminates memory-related failures.
ThinkStation workstations offer powerful discrete NVIDIA® Quadro® and NVS professional graphics. And on the E30, Intel® HD Graphics too - everything you need for high-performance computing solution graphics to do more
Also, with support for up to a whopping eight monitors at once, ThinkStation workstations help you design, analyze, and simulate - faster than anything else!
Lenovo Enhanced Experience for Windows® 7 PCs boast significantly faster boot-up and shutdown times as well as hardware and software innovations to help you work more productively.
Dedicated support.
ISV-certified. Lenovo works closely with leading software partners, and ThinkStation workstations have hundreds of independent software vendor (ISV) certifications, ensuring that you have the performance you need to run the world's most demanding applications. ISV-certified means dedicated support for maximum performance and reliability so you can do more without worry.
Reliable and secure.
Rigorous voltage, shock, vibration, and drop tests ensure that your Lenovo workstation is equipped with the rock-solid durability Think-branded products are renowned for. Plus our ThinkVantage® Technologies automate updates and maintenance tasks, protect your business critical information, and prevent unauthorized access to data.
Our Rescue and Recovery® helps you recover from system crashes with the push of a button, even if the primary operating system won't boot. And with Client Security Solution, you simply can’t get a higher level of security as a standard PC feature from any other manufacturer.
Additionally, select workstations include Intel® vPro™ technology with AMT 7, for remote maintenance, remove control, fast calls for help, and more.
Clever design.
Our user-centric designs with thoughtful details help you work more productively and make life a little simpler.
- Ergonomic removable top handle, plus rear handle for easy moving
- Recessed handle for easy rack mounting on C20 and C20x
- Front-access media ports with illuminated icons
- Recessed power button to help prevent accidental shutoffs
- Tool-less chassis for quick and easy upgrades
- Superior cable management
- Premium side-cover latch for easy access to internal components
- Rack-mountable
- Dramatically smaller C20 and C20x models for extra horsepower in the same area - up to 14 systems on a standard 42U rack
Rest assured.
Epic Games uses Lenovo ThinkStations to build their world-renown Unreal Engine 3, used by game studios globally. With their unmatched power and reliability, Epic is able to continually push the boundaries of what is technically and visually possible. Mega-blockbusters including Bulletstorm, Infinity Blade, and the upcoming Gears of War 3 are all developed on Lenovo's ultimate machines.
The North American Eagle (NAE), which may be the fastest vehicle on the planet, relies on some of Lenovo's most powerful technology. Lenovo workstations let the NAE team push design innovation to the extreme in their attempt to break the land speed record - over 800 mph.
