Processor
| Processor codename |
Bloomfield |
| Memory clock speeds supported by processor |
1066, 800 MHz |
| Memory channels supported by processor |
Triple |
| Conflict Free processor |
N |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
23 |
| Processor operating modes |
64-bit |
| Stepping |
D0 |
| Processor cores |
4 |
| Processor frequency |
3.06 GHz |
| Tcase |
67.9 °C |
| ECC supported by processor |
Y |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Maximum internal memory supported by processor |
24 GB |
| Processor cache type |
Smart Cache |
| Number of Processing Die Transistors |
731 M |
| Number of processors installed |
1 |
| Processor core voltage (AC) |
1.225 V |
| Processor boost frequency |
3.33 GHz |
| Number of QPI links |
1 |
| Processor cache |
8 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
130 W |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
QPI |
Processor special features
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Physical Address Extension (PAE) |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
36 bit |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
42.5 mm |
| Processor ARK ID |
39720 |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE4.2 |
Memory
| Memory layout (slots x size) |
3 x 2 GB |
| Memory slots |
6x DIMM |
| Maximum internal memory |
12 GB |
| Internal memory |
6 GB |
| Internal memory type |
DDR3-SDRAM |
| ECC |
Y |
Storage
| Hard drive capacity |
500 GB |
| Hard drive speed |
7200 RPM |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA |
| Number of hard drives installed |
1 |
Optical drive
| Optical drive type |
DVD Super Multi DL |
Power
| Power supply input voltage |
100 - 240 V |
| Power supply input frequency |
50 - 60 Hz |
| Power supply |
625 W |
Ports & interfaces
| PS/2 ports quantity |
2 |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
Expansion slots
| PCI Express x16 slots |
2 |
| PCI slots |
1 |
| PCI Express x1 slots |
1 |
| PCI Express x4 slots |
1 |
Design
| Number of 5.25" bays |
2 |
| Number of 3.5" bays |
4 |
| Chassis type |
Tower |
Other features
| Maximum number of SMP processors |
1 |
| Networking features |
Gigabit Ethernet (10/100/1000) |
Additionally
| InTru™ 3D Technology |
N |
| System bus data transfer rate |
4.8 GT/s |
| Processing die size |
263 mm² |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

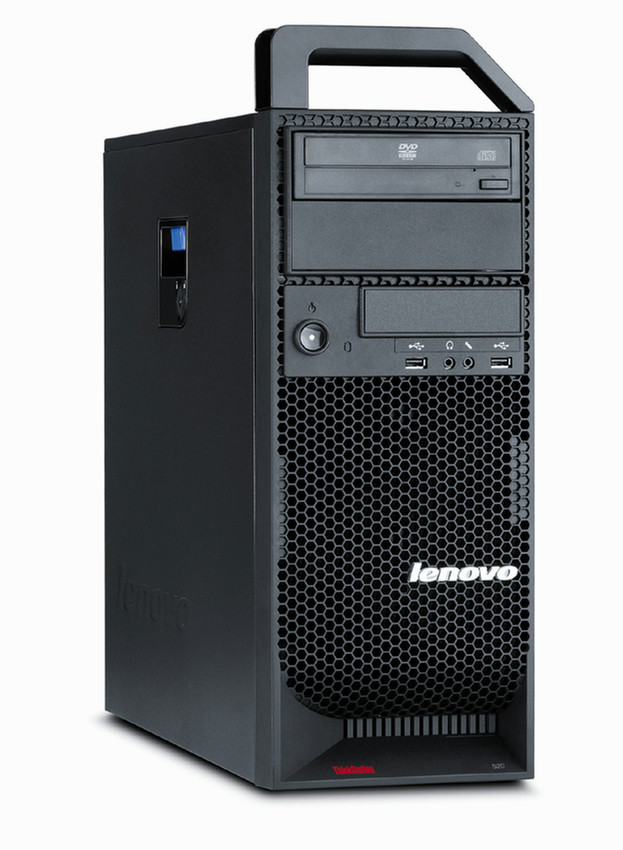

ThinkStation S20, Intel Xeon W3550, DDR3 6GB, 500GB, SATA, 7200RPM, DVD Super Multi DL, Gigabit Ethernet, Windows 7 Professional + Graphics card kit
From Lenovo’s exceptional engineers comes the next generation of ThinkStation, designed exclusively for specialized professionals using graphically and computationally intensive applications. Its groundbreaking design ramps up parallel workflows, enabling professional users to quickly bring their ideas to life.
Equipped with the latest technology from Intel, the ThinkStation delivers performance that is simply unattainable with a standard desktop PC. The ThinkStation S20's powerful and efficient Intel Xeon processors speed through even the toughest workloads. Sporting up to eight powerful processing cores, the new ThinkStation comes fully equipped with an on-chip memory controller and Intel QuickPath Interconnect, allowing you to innovate faster than ever before.
The Lenovo ThinkStation has an environmentally conscious, usercentric design that ultimately results in increased productivity. In addition, the performance and quality-focused Lenovo ThinkStation supports ThinkVantage Technologies such as Rescue and Recovery and Client Security Solution, providing users with superior data security.
