Weight & dimensions
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Heatsink weight |
460 g |
| Heatsink dimensions (W x D x H) |
138 x 60 x 160 mm |
Performance
| Maximum airflow |
112 cfm |
| Minimum airflow |
40.7 cfm |
| Thermal resistance |
0.095 °C/W |
| Airflow |
213.1 m³/h |
| Minimum air pressure |
0.83 mmH2O |
| Maximum air pressure |
3.64 mmH2O |
| Noise level (low speed) |
8 dB |
| Noise level (high speed) |
23 dB |
| Rotational speed (min) |
800 RPM |
| Rotational speed (max) |
2200 RPM |
| Fan diameter |
120 mm |
| Supported processor sockets |
Socket AM3, Socket AM3+, Socket AM2+, Socket FM2, Socket AM2, Socket FM1 |
| Number of heat pipes |
4 |
| Heat pipes diameter |
6 mm |
| Type |
Cooler |
| Suitable for |
Processor |
2200 RPM, 112 CFM, 213.1 m3/h, 3.64 mmH2O, 23 dB

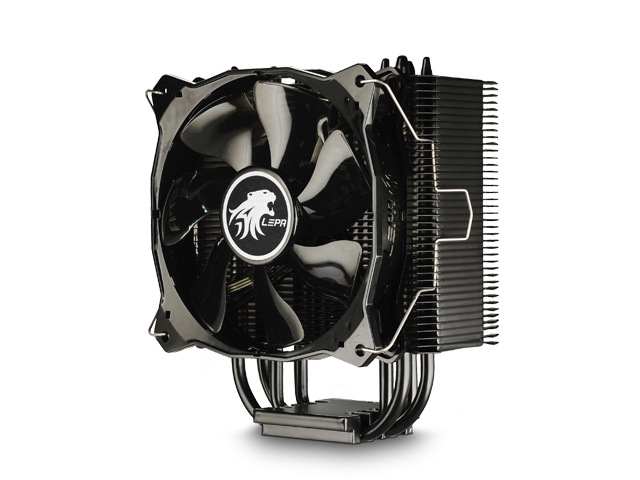

The CPU cooler LV12 is the result of extensive research and development. The engineers designed a slim and compact heat sink which avoids compatibility issues with higher RAM modules while maintaining a high performance capability. Therefore, LEPA relies on a new technique for efficient air stream conduction: Small air vents improve the air circulation inside the heat sink and increase the heat dissipation rate. The heat pipes rest directly on the CPU so that hot spots can be eliminated quickly. Due to these techniques, LEPA engineers were able to lower down the thermal resistance of the cooler to just 0.095°C/W.
LEPA includes a high-quality PWM fan with the durable “Barometric Oil-less” (BOL) bearing. Thanks to the application of self-lubricating materials, the patented technology allows for a consistently silent operation with 160,000 hours MTBF. Apart from that, you can detach the fan blades in order to clean them from dust and avoid a drop in performance. The 12cm fan comes with an automatic PWM control and three RPM modes. That way, you can adjust the RPM setting according to your individual system requirements: Silence Mode (800 – 1,500 RPM), Performance Mode (800 – 1,800 RPM) and Overclocking Mode (800 – 2,200 RPM).
The stylish matt black coating is not only upgrading the cooler optically, but also protects it from corrosion. LEPA applies a high-tech finish (“Super Thermal Conductive Coating”) which makes sure that it does not affect the thermal conductivity and cooling performance of the cooler. The quick and user-friendly mounting system supports all current Intel® and AMD® platforms.
