Networking
| Duplex system |
Full, Half |
| Packet forwarding rate (10 Mbps) |
14880 pps |
| Packet forwarding rate (100 Mbps) |
14800 pps |
| Cable types supported |
Fiber |
| Converter input interface |
10Base-T, 100Base-TX |
| Converter output interface |
100Base-FX |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Performance
| Fiber cable diameters supported |
8.3/125, 8.7/125, 9/125, 10/125 µm |
| Fiber mode structure |
Single-mode |
| Maximum transfer distance |
20000 m |
Power
| Output current (48V) |
0.06 A |
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| Fiber ports quantity |
1 |
| Power over Ethernet (PoE) ports quantity |
1 |
Additionally
| Transfer rate (Mbps) |
100 Mbit/s |
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
1 |
10/100BASE-TX - 100BASE-FX, SMF, SC, 100Mbps, IEEE 802.3/u/af/x

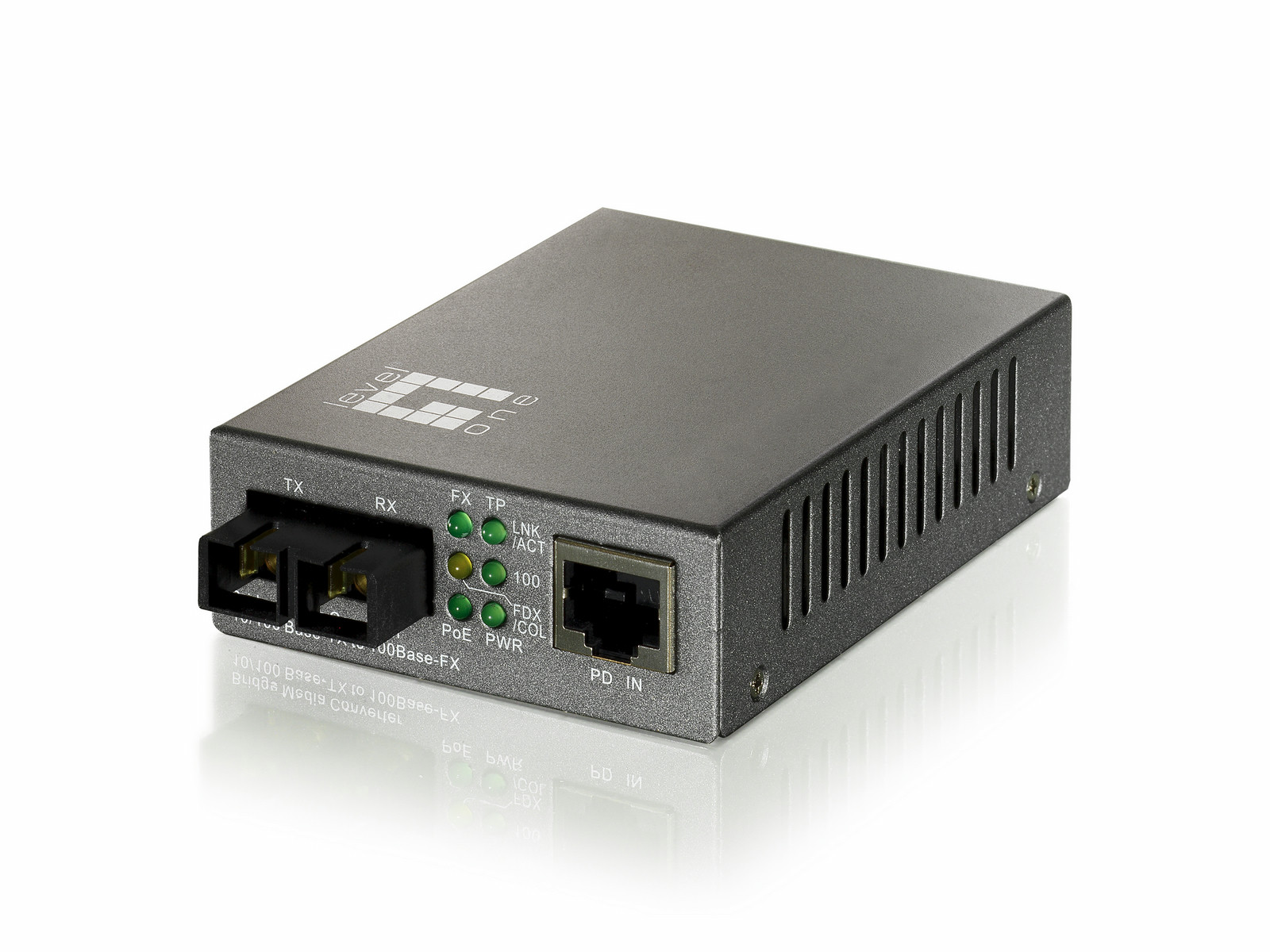

LevelOne’s FVT-0104TXFC is new Power-over-Ethernet-converters that transfer data from 10/100BaseTX copper to fiber interfaces. These PoE Converters are designed to receive data and power from PoE networks and then to refer data out through fiber connections thus eliminating extra power cables to extend the usefulness of the network.
LevelOne’s PoE converter complies with IEEE802.3af standard. The10/100 Base-TX port auto-senses 10 or 100Mbps connection speeds, auto-negotiates half-/full-duplex modes, and auto-selects MDI-X media type. FVT-0104TXFC with high-quality Single-mode SC optical fiber connector port, this converter will give your PoE network the ability to interface with fiber connections over a distance of up to 20km.
With its compact design, our PoE converter easily fit on any limited space. No software is required. You can easily active this device by simply connecting it to the network cable and it’s ready to go.
- 10/100BASE-TX UTP to 100BASE-FX fiber media conversion
- Single-mode transmission over fiber for extended distances, up to 20 km
- High-quality SC connector port
- Complies with IEEE 802.3af PoE standard as a PD device, can receive power from any PoE-compliant PSE device
- Over-current protection and under-current detection
- DIP Switch for customized configurations
