Performance
| Vertical beam width |
33 ° |
| Horizontal beam width |
30 ° |
| Antenna gain level (max) |
14 dBi |
| Frequency band |
2.4 - 2.5 GHz |
| Impedance |
50 Ω |
Features
| Voltage Standing Wave Ratio (VSWR) |
1.92:1 |
| Polarization |
Vertical polarization |

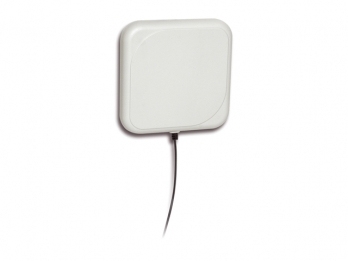

14dBi Panel Directional Antenna - For IEEE 802.11b/g applications at the range between 2.4GHz~2.5GHz frequency band
LevelOne WAN-2140 outdoor grid antenna is a high performance directional flat patch WiFi antenna suitable for indoor/outdoor directional applications. This antenna increases wireless signal coverage and improves signal strength/quality for existing 802.11b/g wireless devices in the range between 2.4Ghz to 2.5Ghz frequency bands. The WAN-2140 is especially designed for outdoor point-to-point wireless bridge applications. The waterproof surface keeps the antenna workable in any rogue environment. The WAN-2140 has been tested for interoperating with LevelOne’s wireless product which comply with IEEE802.11b/g standards and are equipped with an N male connector.
