Performance
| Supported network protocols |
HTTP, SMTP, DHCP, ARP, NTP, DNS, UPnP, FTP |
| Audio codecs |
G.711 / G.726 |
| Alarm output channels |
4 |
| Alarm input channels |
8 |
| Video input channels |
16 |
System requirements
| Mobile operating systems supported |
Windows Mobile, iOS, Symbian, BlackBerry OS |
| Browser supported |
Internet Explorer 7 |
Ports & interfaces
| DC-in jack |
Y |
| RS-232 interface |
Y |
Storage
| Number of hard drives supported |
2 |
| Maximum storage capacity |
6 TB |
| Hard drive interface |
Serial ATA, Serial ATA II |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
16-Channel, 1x USB 2.0, 1x RJ-45 1000Mbps, 1x RS-232, DI/DO, H.264/MPEG-4 Part 2/MJPEG, 48Mbps, 2x 3.5" SATA I/II, 6TB max

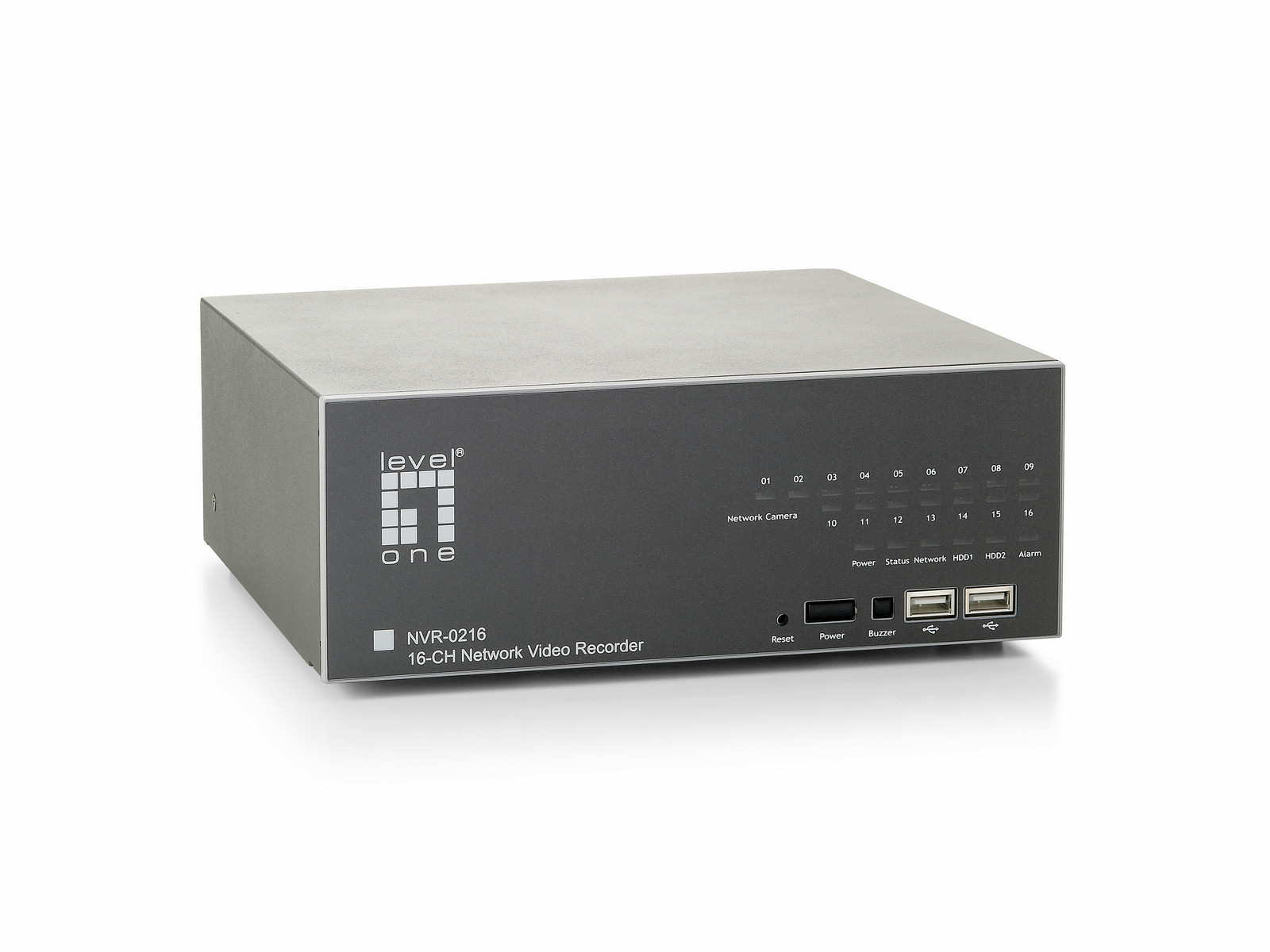

The LevelOne Network Video Recorder (NVR) is a reliable surveillance system with an easy set up functionality. It enables live recording and playback for up to 16 network cameras via the local area network (LAN) or over the Internet simultaneously. This system is compatible with most network cameras (Please see compatible list), with no specific hardware or software requirement. Just plug the NVR into the LAN connected device (switch or router) and with a few clicks, it will search and configure each connected network cameras instantly. This high-performing NVR is cost-effective and it offers a completed monitoring solution. Smartphone real-time viewing, video/schedule recording and playback, external Uninterruptible Power Supply (UPS) for non-stop recording service are all standard feature for the LevelOne NVR. It also supports up to 5-Megapixel resolution and H.264/MJPEG/MPEG4 compression with dual stream monitoring. The LevelOne NVR is a powerful tool that well suited for small scale applications such as retail store, office, bank or home surveillance needs.
<b>Enhanced Multi-Server Management</b>
We aim to offer you the most versatile and comprehensive surveillance solutions. Our free bundled NVR management software coming with the NVR allows you to cascade up to 16 NVR servers located in different sites and monitor up to 256 IP cameras simultaneously from a single point of management. Thus easing administration tasks while maximizing efficiency and performance.
- 2 x 3.5 inch disk slot (SATA I/II, up to 2 x 3TB)
- Manage and control up to 16 network cameras
- Compression: H.264/MPEG-4 Part 2/MJPEG
- Resolution: 5-Megapixel/3-Megapixel/Full HD/Megapixel/FD1/CIF/QCIF
- Supports smart camera search and 2-way audio
- Supports PTZ/preset point/preset sequence
- Motion detect and event display on e-map
- Supports iPhone/smartphone/PDA remote viewing over the Internet
- Display mode: Live view/playback/full screen
- Supports external UPS and DI/DO
- Supports 2 video streams simultaneously
- Free bundled NVR management software for manage up to 16 NVR devices
