Storage
| Hard drive size |
3.5 " |
| Number of hard drives supported |
2 |
| Maximum storage capacity |
8 TB |
| Hard drive interface |
Serial ATA, Serial ATA II |
Operational conditions
| Operating relative humidity (H-H) |
5 - 90% |
System requirements
| Browser supported |
IE 9, Chrome |
Weight & dimensions
| Depth |
225 mm |
| Weight |
2400 g |
| Width |
315 mm |
| Height |
75 mm |
| Package depth |
360 mm |
| Package weight |
2800 g |
| Package width |
126 mm |
| Package height |
332 mm |
Ports & interfaces
| USB 2.0 ports quantity |
2 |
| VGA (D-Sub) output ports |
1 |
| DC-in jack |
Y |
Performance
| Video formats supported |
H.264, M-JPEG, MPEG4 |
| Video input channels |
16 channels |
Features
| LED indicators |
Power, Status |
Additionally
| Выход HDMI |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
5 - 45 °C |
16-Channel, 2x USB 2.0, 1x HDMI, 1x RJ-45 1000Mbps, 1x VGA, 2x 3.5" SATA, 8TB max, 64 Mbps, H.264 / MPEG-4 / M-JPEG

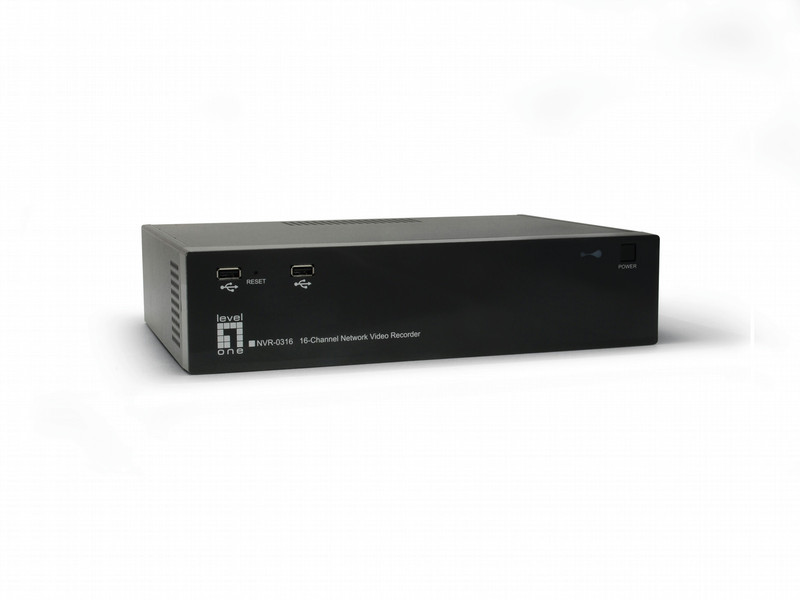

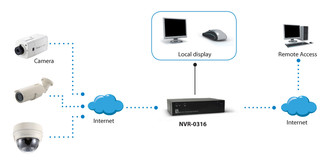

The NVR-0316 is designed for use within a full HD surveillance system, and performs recordings and playbacks pictures from network cameras in the system. It is an 16 channel network video recorder (NVR) with local display monitor support. Simply connect an USB keyboard and mouse and up to 16 full HD cameras can be connected via a network for recording and event management with easy and intuitive local user interface. It is also possible to perform the settings or operate the NVR using a web browser installed on a PC connected to the same network. Live and playback videos can also be viewed on major mobile devices through its web browser or platform specific app. Recorded videos from multiple NVRs can be played back from a remote PC running 256CH CMS software that comes free with the purchase of the NVR-0316 is compatible with most major brand cameras and its ability to automatically search configuring the system easier than ever.
Enhanced Multi-Server Management
We aim to offer you the most versatile and comprehensive surveillance solutions. Our free bundled NVR management software coming with the NVR allows you to cascade up to 16 NVR servers located in different sites and monitor up to 256 IP cameras simultaneously from a single point of management. Thus easing administration tasks while maximizing efficiency and performance.
- Display mode: Live view/playback/full screen
- Free bundled NVR management software for manage up to 16 NVR devices
- Manage and control up to 16 network cameras
- Motion detect and event display on e-map
- Motion detect and event display on e-map/Google map
- Remote controller included
- Resolution: 5-Megapixel/3-Megapixel/Full HD/Megapixel/FD1/CIF/QCIF
- Resolution: Full HD/Megapixel/FD1/CIF/QCIF
- Supports 1080p HDMI local display
- Supports PTZ/preset point/preset sequence
- Supports smart camera search and 2-way audio
- 2 x 3.5 inch disk slot (SATA I/II, up to 2 x 4TB)
