Packaging content
| Cables included |
KVM |
| Manual |
Y |
System requirements
| Linux operating systems supported |
Y |
| Mac operating systems supported |
Y |
| Windows operating systems supported |
Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Ports & interfaces
| Audio connections |
Y |
| Video port type |
DVI-I |
| Number of computers controlled |
2 |
| Console ports |
3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Number of microphone inputs |
1 |
| USB 2.0 ports quantity |
2 |
| Headphone outputs |
1 |
| DVI-I ports quantity |
1 |
| Cable length |
1.2 m |
| USB connector type |
USB Type-A |
Performance
| DDC2B support |
Y |
| Plug and Play |
Y |
| HDCP |
Y |
Design
| Display switch button |
Y |
| LED indicators |
Y |
Operational conditions
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
Weight & dimensions
| Depth |
85 mm |
| Weight |
450 g |
| Width |
65 mm |
| Height |
25 mm |
Video
| Maximum resolution |
1920 x 1200 pixels |
Certificates
| RoHS compliance |
Y |
| Certification |
CE, FCC |
Additionally
| Colour of product |
Black, Grey |
| Operating temperature range (T-T) |
0 - 50 °C |

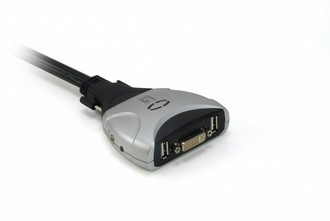

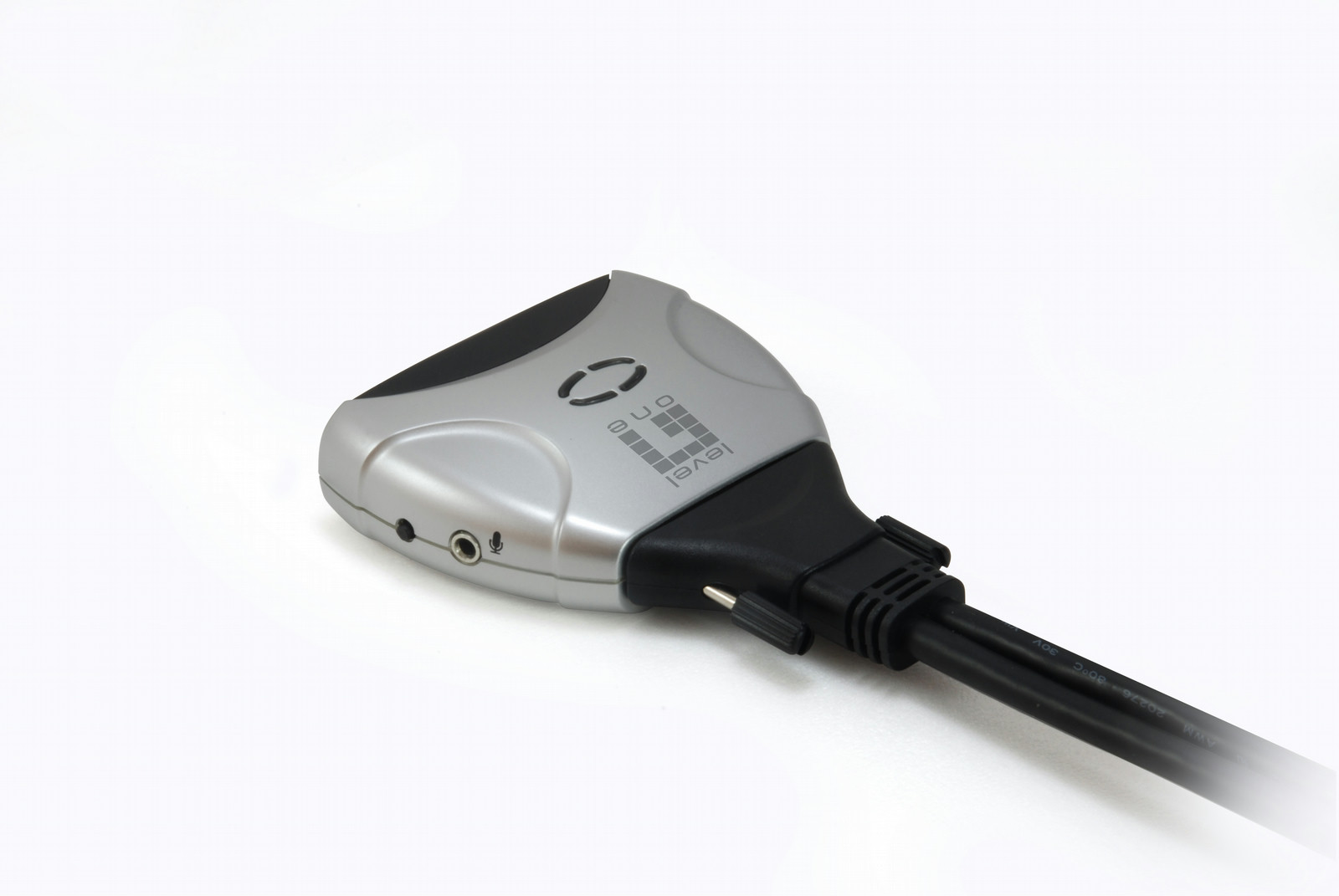

2-Port Cable KVM Switch, DVI, USB, Audio, 1920 x 1200px, 1.2m, 450g
The KVM-0260 is a 2-port USB DVI switch for home or small office use. The switch allows computers from a variety of operating platforms to connect to a single user-interface including a mouse, keyboard and monitor. Featuring keyboard hotkeys, the switch makes it easy to switch between computers and software with a single button push. The device also supports high-quality video of DDC2B and 1920x1200 pixels, as well as HDCP and High-Bandwidth Digital Content Protection. Furthermore, it provides auto-scanning features and audio/microphone support. The KVM switch is easily installed with Plug-and-Play capability, and powers itself through the USB connection. The device is manufactured with all cables pre-attached, so is ready for use straight out of the box, making it a very handy addition to any office.
- Supports high-video quality – DDC2B and 1920x1200 pixels
- Control and manage 2 computers by using a single USB keyboard, mouse and monitor
- Provides auto-scanning features and audio/microphone support
- Supports HDCP, High-Bandwidth Digital Content Protection
- Easy switching between computers with keyboard hotkeys
- Self powered through USB connection
- Simple Plug and Play installation
