Performance
| Cabling technology |
10/100/1000Base-T |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
Ports & interfaces
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| Supplementary power connectors |
4 |
| Detachable power connectors |
Y |
| DC-out jack |
Y |
Power
| Output current (12V) |
2 A |
| Output current (9V) |
2.3 A |
| Output current (5V) |
4 A |
| Power over Ethernet (PoE) |
Y |
| Output power |
25 W |
Operational conditions
| Operating relative humidity (H-H) |
5 - 95% |
Weight & dimensions
| Depth |
92 mm |
| Weight |
85 g |
| Width |
60 mm |
| Height |
27 mm |
Design
| Certification |
CE, FCC, EN 60950:2006, RoHS |
| Country of origin |
China |
Packaging content
| Quantity |
1 |
| Quick installation guide |
Y |
Additionally
| Colour of product |
Black |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Operating temperature range (T-T) |
0 - 45 °C |
PoE+ Splitter, 100Mbps, 5V/9V/12V DC, 4A/2.3A/2A, IEEE 802.3/u/ab/af/at

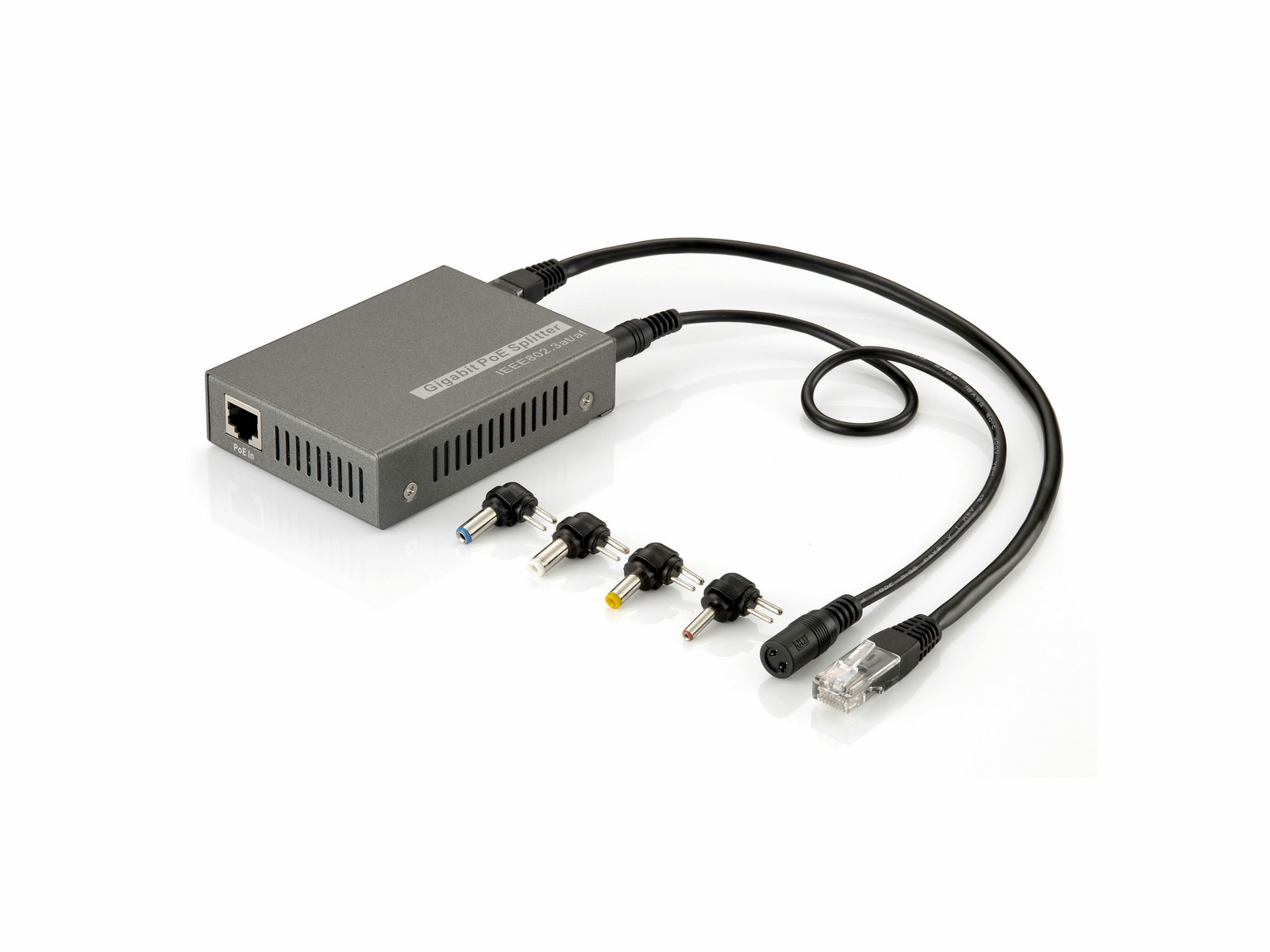

The LevelOne POS-3000 Gigabit High Power PoE Splitter splits a networked PoE Signal into separated power and Gigabit data sources. This device allows administrators to run Gigabit speed PoE cables over long distances and then split the PoE signal into separated data and power sources in order to network non-PoE devices. Active splitters are aslo available in the following output voltages (5V or 9V or 12V). Save installation and equipment cost when installing 802.11n access points, (Pan/Tilt/Zoom) IP cameras and more in remote locations. No need to install network devices near a power outlet. This compact device safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non PoE network at Gigabit speeds.
- Compact splitter supports Gigabit speeds
- Automatically detects PoE terminals and supplies inline power
- Easily install non-PoE devices where a power outlet is not available
- Reduce installation and network equipment costs
- Safeguards network device with short circuit protection
- Adjustable DIP switch for 5V, 9V, or 12V output
- Intergrates Non-PoE devices with Power Over Ethernet support
- Auto-sensing power drawn from 802.3af / 802.3at power source equipment(PSE) devices
- Supplies power up to 25 watts
- Provides Interchangeable tips
