Data transmission
| MAC address table |
1024 entries |
| Store-and-forward |
Y |
| Switching capacity |
1 Gbit/s |
| Packet forwarding rate (10 Mbps) |
14880 pps |
| Packet forwarding rate (100 Mbps) |
148000 pps |
Performance
| Buffer size |
128 KB |
| Auto-negotiation |
Y |
| Stackable |
N |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| 10G support |
N |
| Full duplex |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| DC-in jack |
Y |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
Power
| Power consumption (max) |
1.93 W |
Design
| Wall mountable |
Y |
| Rack mounting |
N |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
5 x 10/100Base-TX RJ-45, 1K MAC, 1Gbps, 1.93W, IEEE 802.3/u/x

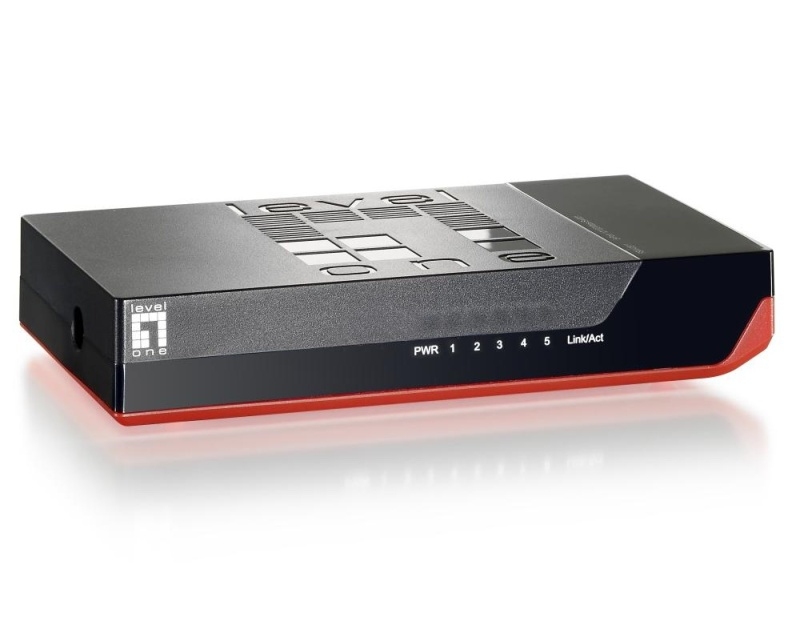

The LevelOne FSW-0511 is a 10/100Mbps NWay Unmanaged Switch with outstanding performance and high efficiency. With 5 NWay auto-negotiation ports, this switch fulfills the needs of connecting users on a network with automatic selection of best network speed and duplex mode.
Power Saving Features
The FSW-0511 supports Green Ethernet to provide power-saving benefits without compromising performance. On of the ways it does this is by automatically detecting the length of connected cables and can adjust power usage by saving energy on shorter cable connections.
Compact and Stylish Design
The stylish, compact wall-mountable housing of FSW-0511 fits any working environment. It comes
with 5 10/100Mbps ports to meet SOHO and home network expansion needs.
Easy to Use
The FSW-0511 is plug-and-play and supports all kinds of network protocol compatibility to make installation and network management easy and fast. LED indicators provide quick, easy to read port and switch information.
- Provides flexibility of 5x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 1K MAC address auto-learning and auto-aging
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Compact, lightweight design
- Provides wall or desktop mounting
- Supports LevelOne Green power saving technology
