Design
| Cascadable |
Y |
| Hot keys |
Y |
| Push button |
Y |
Performance
| Hot-Plug support |
Y |
| Scan interval |
5, 99 s |
| Bandwidth |
200 GHz |
Ports & interfaces
| Audio connections |
N |
| Console ports |
PS/2, VGA (D-Sub) |
| Number of computers controlled |
8 |
| Video port type |
VGA |
| DC-in jack |
Y |
| Mouse port type |
PS/2 |
| Keyboard port type |
PS/2 |
Display
| Built-in display |
Y |
| On Screen Display (OSD) |
Y |

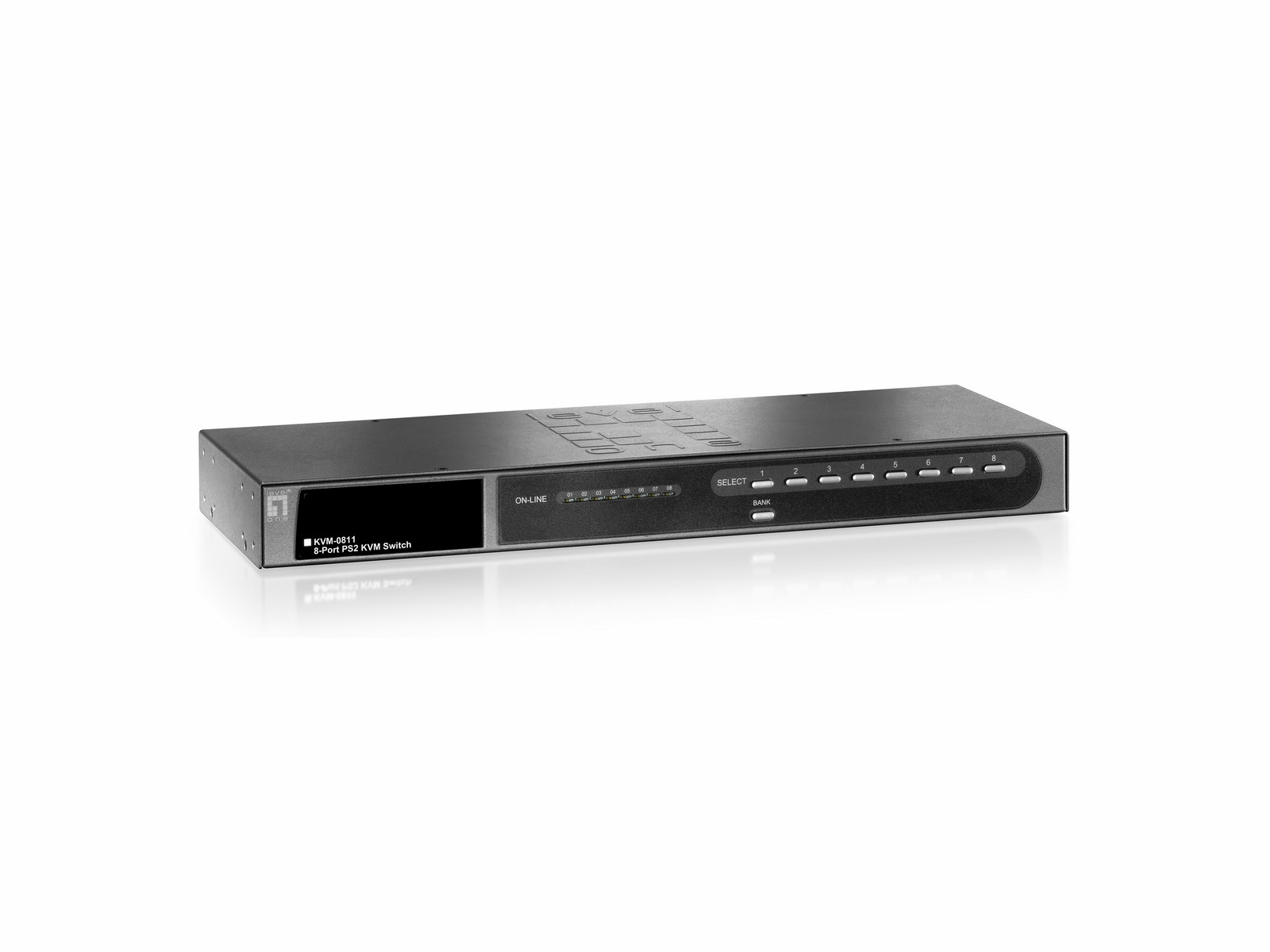

8-Port KVM Switch, PS/2, VGA, 1920 x 1440px, 5~99 sec, 8 LEDs, 12VDC, 2kg
Product Overview
The LevelOne KVM-0811 8-port PS2 KVM Switch controls multiple PCs from a single keyboard, mouse and VGA monitor station. The KVM-0811 PS2 KVM switch is loaded with features such as Hot-Key Control, and onscreen display menu, PC server name searching, push-button and autoscan control.
One Station Controlling Multiple Locations
The LevelOne KVM-0811 PS2 KVM Switch can control up to eight different units connected. Up to eight KVM units can be connected through Daisy Chain to deploy a larger KVM controlled network.
Each unit can be selected either through the user-friendly On-screen Menu or by using the Hot Key pushbuttons located on the KVM-0811. Also, for easy management, PC’s can be connected or disconnected without powering down any unit.
With the eight-character password control, connected PC’s can be protected from unauthorized access. The KVM-0811 also features auto-PC server name search and an Auto-scan mode for monitoring PC’s.
Multiple Platform Support
The KVM-0811 supports a variety of operating system platforms. It supports DOS, Win3.x, Win95/98/98SE/2000/ME/XP, WinNT, Netware, Unix and Linux.
- Manage 8 PCs from a single location
- Support a variety of operating system platforms
- Supports Microsoft Intellimouse/Explorer, Logitech Net Mouse and compatible MS mouse
- No software installation needed
- Password protection for PCs connected
- Provides high video quality of up to 1920x1440 pixels
- Features Auto-Scan mode for PC monitoring
- LED status display for PCs connected
- Features an additional built-in daisy chain port for expanding the KVM network
- Features an Auto-detect daisy chain function for easy management
