Networking
| Duplex system |
Full, Half |
| Auto MDI/MDI-X |
Y |
| Converter input interface |
10Base-T, 100Base-TX |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Performance
| Maximum transfer distance |
300 m |
Ports & interfaces
| RJ-11 ports quantity |
2 |
| DC-in jack |
Y |
Additionally
| Transfer rate (Mbps) |
100 Mbit/s |
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
2 |

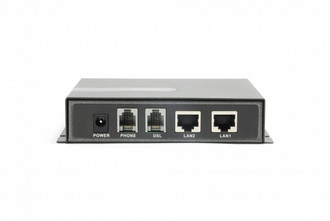

2 x 10/100Base-T RJ-45, 2 x RJ-11, 5VDC, 1A, 300m, IEEE802.3/u, AnnexB
Why convert Ethernet to VDSL?
The LevelOne VDS-0201 converts your data from Ethernet to VDSL, making it easy to send high-bandwidth data over long distances. This new technology uses traditional twisted-pair telephone wiring instead of expensive Cat.5 cables.
New technology = cost-effective deployment
When using VDSL2 (Very High Speed Digital Subscriber Line) technology, users can transmit data up to 300 meters without having to add expensive Ethernet switches or cables to extend the network reach. And with 100Mbps downstream and 60Mbps upstream, VDSL2technology provides ample space for all high bandwidth usage.
Fast transfer speeds? Yes.
Easy Installation? Yes.
VDS-0201 works especially well in applications where traditional copper phone lines are already installed: apartments, condominiums, hotels, university campus, etc. There is no need to run expensive Ethernet cables and installers can easily integrate VDSL technology into the existing network. The VDS-0201 is plug and play ready and requires minimum installation time.
Customized settings
Each VDS-0201 also allows for customized settings for advanced use. Using a built-in DIP switch, users can customize the behavior of the device to match the desired network configuration.
Annex B
For networks that utilize ISDN telephone systems
- Supports a VDSL connection up to 2km over single pair copper wire
- Provides100Mbps downstream and 60Mbps upstream over 300m
- Features selectable Fast and Interleaved modes
- Selectable fixed data rate and fixed SNR margin
- Features 4 Dip Switches for Configuration Settings
- Low-Latency for Video/Voice/Data applications
