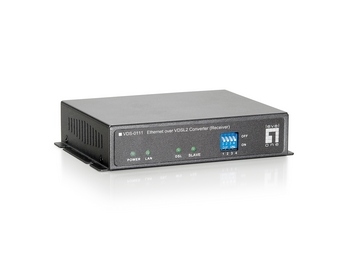

LevelOne Ethernet over VDSL2 Converter (Receiver) network media converter

VDS-0111-v1 Compliant with ITU-T G.993.1, G.993.2 VDSL/VDSL2 and SG15Q4 DMT
100/60Mbps Downstream/Upstream for distance up to 350m
Supports Line Powered VDSL2 connection
Conforms Safety-Extra-Low-Voltage (SELV) standard
RJ11 for DSL interfaces + RJ45 for Ethernet LAN port
5 LED Indicators for VDS-0110(Master)
4 LED indicators for VDS-0111(Slave)
4 Dip Switches for Configuration Settings
Trellis Coding supports up to 1024 Discrete Multi-Tone (DMT) bins
Auto MDIX for 10/100 BaseT Ethernet LAN Ports
Low-Latency for Video/Voice/Data applications
Line Surge Protection
Selectable Fast and Interleaved modes
Selectable fixed data rate and fixed SNR margin
