Ports & interfaces
| Host interface |
PCI |
| PCI version |
2.1 |
| Internal |
Y |
| Interface |
Fiber |
| Fiber ports quantity |
2 |
Packaging content
| Drivers included |
Y |
| Mounting brackets included |
Y |
| Quick installation guide |
Y |
Networking
| Flow control support |
Y |
| Maximum operating distance |
2000 m |
| Chipset |
RTL8105 |
Additionally
| Transfer rate (Mbps) |
200 Mbit/s |
| Wireless technologies |
Wired |
2 x SC MMF, 200Mbps, PCI 32bit v2.1 33/66MHz, IEEE 802.3u/x, IEEE 802.1p/Q

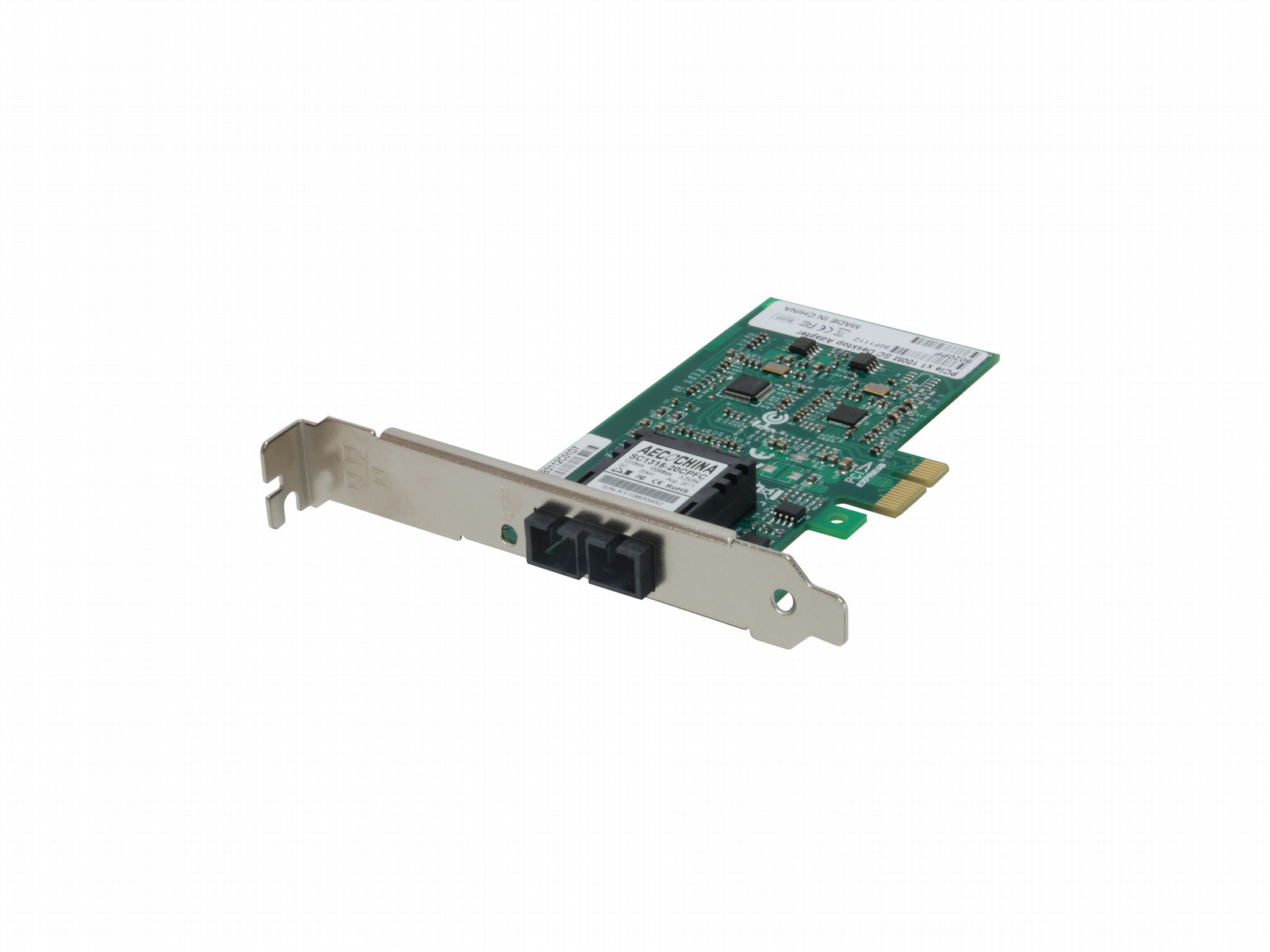

The LevelOne FNC-0115 network card with PCI Express offers a broad feature set with high speed performance and IP header verification, all at a great price. The card has a Wake-on-LAN feature offering remote start-up and shutdown, offers full-duplex switching at up to 2km and clearly visible diagnostic LEDs showing link, activity, collision and FDX. IEEE 802.1Q VLAN allows network segmentation and enhances performance and security.
- Built-in Wake-on-LAN feature to startup/shutdown computers remotely
- Full duplex: 2000m max. fiber length
- IEEE 802.1Q VLAN allows network segmentation to enhance performance and security
- Supports on-board IP header verification and TCP/UDP checksum offload
- Supports most network operating systems (NOS)
