Security
| Active tampering alarm |
Y |
| IP address filtering |
Y |
Video
| MPEG-4 frame rate |
30 fps |
| NTSC resolutions |
720 x 480 pixels |
| PAL resolutions |
720 x 576 pixels |
| Motion JPEG frame rate |
30 fps |
| Maximum video resolution |
720 x 480 pixels |
| Maximum frame rate |
30 fps |
Ports & interfaces
| I/O terminal ports |
1 |
| Line-in |
Y |
| Line-out |
Y |
| BNC input ports |
1 |
| DC-in jack |
Y |
Technical details
| Internal memory |
128 MB |
| Flash memory |
128 MB |
| PTZ control (Pan/Tilt/Zoom) |
Y |
Antenna
| Antenna connector type |
BNC |
Networking
| Power over Ethernet (PoE) |
Y |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
| Wi-Fi |
N |
| Supported network protocols |
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/ RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1x |
Additionally
| Filtering |
IP-address |
| Ethernet LAN (RJ-45) ports quantity |
1 |

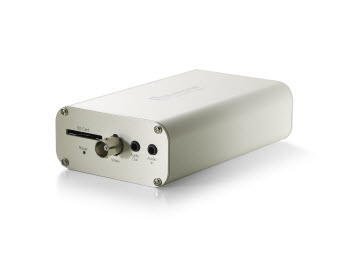

FCS-7111, H.264/M.JPEG/MPEG4, PoE, White
The LevelOne FCS-7111 1-Port H.264 PoE Video Server enables analog cameras to be incorporated with an IP-based network system and provides superior functionality for state-of-the-art surveillance.
Triple Codec and Multiple Video Streams
The FCS-7111 supports the advanced H.264 compression format that drastically reduces file sizes and conserves valuable bandwidth as well as storage space. Users can receive multiple streams simultaneously based on different settings for viewing on different platforms such as PCs or mobile phones. With tamper detection support, cameras connected to the FCS-7111 will be able to detect camera tampering attempts in real time.
PoE Compliance for Simplified Deployment
802.3af compliance not only allows easy deployment without lumpy cable connections but also reduces cabling cost. With one single Ethernet cable data and power can be transmitted simultaneously.
Free Bundled Software
The FCS-7111 comes with LevelOne’s 64-channel surveillance software, IP CamSecure, which offers
advanced functionality and abundant surveillance management features.
- Up to 30 fps in D1 Resolution
- Real-time H.264, MPEG-4, and MJPEG Compression (Triple Codec)
- Multiple Streams Simultaneously
- Built-in 802.3af Compliant PoE
- Two-way Audio via SIP Protocol
- HTTPS Encrypted Data Transmission
- 802.1x Port-based Authentication for Network Protection
- Digital I/O for External Sensor and Alarm
- RS-485 Interface for Scanners, Pan/Tilts
- Built-in SD/SDHC Card Slot for On-board Storage
- Bundle with LevelOne 64-Channel Monitoring Software
