Bandwidth
| Supported data transfer rates |
10/20/100/200 Mbps |
| Full duplex |
Y |
Other features
| Link/Act LED |
Y |
| Ports quantity |
1 |
| Compliance industry standards |
IEEE 802.3, IEEE802.3u |
| Networking features |
Ethernet, Fast Ethernet |
Ports & interfaces
| Host interface |
PCI |
| Internal |
Y |
| Interface |
Ethernet |
Additionally
| Transfer rate (Mbps) |
200 Mbit/s |
| Wireless technologies |
Wired |

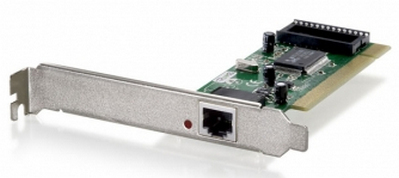

FNC-0107TX Fast Ethernet 10/100Mbps Adapter with Wake On Lan function
- Integrated Ethernet MAC, Physical chip and
- transceiver in one chip
- Compliant to 32-bit High Performance PCI Adapter
- Complies with the IEEE802.3u 100Base-TX and IEEE802.3 10Base-T standard
- Supports Full Duplex Flow Control (IEEE 802.3x)
- Provides diagnostic software and one LED to indicate network Link/activity
- Supports AMD magic packet and wake-on LAN support
- Supports smart remote boot ROM
- Supports Window 98SE/ME/2000/XP/Vista/Win 7
LevelOne FNC-0107TX Adapter is highly integrated and cost-effective single-chip Fast Ethernet Adapter that provides 32-bit performance, PCI bus master capability, and full compliance with IEEE 802.3u 100Base-TX specifications and IEEE 802.3x Full Duplex Flow Control. It also support ACPI, PCI power management for modern operating systems that is capable of Operating System Directed Power Management (OSPM) to achieve the most efficient power management.
It also supports full-duplex operation, making possible 200Mbps of bandwidth at no additional cost. The Adaters support both 10Mbps and 100Mbps network speed, 100Base-TX operate on twisted pairs of Category 5 UTP and 10Base-T operate on Category 3, 4, 5 UTP. The Adapter use Auto-Negotiation
technology to detect the network speed. Extensive driver supports for including commonly used network operation system Win 98SE/ME/2000/XP/Vista/Win 7 are available.
Whatever your requirements are ease of installation, superior performance, or responsive support, FNC-0107TX is the superior choice.
