Data transmission
Supported data transfer rates |
10/100 Mbps |
Switching capacity |
0.1 Gbit/s |
Maximum data transfer rate |
0.1 Gbit/s |
Protocols
Switching protocols |
CSMA/CD |
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity |
5 |
DC-in jack |
Y |
Performance
Packet buffer memory |
0.5 MB |
Stackable |
N |
Design
Safety |
CE/ FCC |
Rack mounting |
Y |
Other features
Input frequency |
50/60 Hz |
Power supply type |
AC |
Management features
Quality of Service (QoS) support |
Y |
Power
Input voltage |
100 - 240 V |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
Y |
Additionally
Wireless technologies |
Wired |
4 FE High Power PoE and 1 FE Switch, Power Budget 120W, Power protection OVP/OCP/OTP

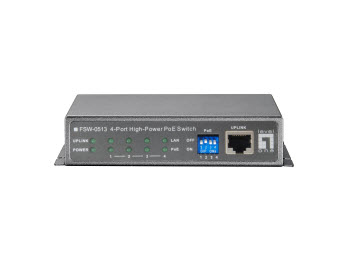

FSW-0513 (-Z) is a 10/100 Mbps Fast Ethernet Switch with 4 High-Power Power over Ethernet ports and one uplink port. With a total power budget of 120W, FSW-0513 (-Z) is excellent for deploying network devices that require high-power such as outdoor security dome cameras and access points. And with high-power PoE, the reach of devices can be extended hundreds of meters.
With 4 dip switches, each PoE port can be manually set for On-Off control. The internal PoE power supply can send up to 48 Watts to a single port. FSW-0513 (-Z) is compact in size, making it ideal for desktop users with limited space. You also have option of installing several FSW-0513 (-Z) in a 19” chassis (POC-6000) for a large-scale rack-mount PoE solution.
Power Protection
FSW-0513 (-Z) supports power protections as OVP (Over Voltage Protection), OCP (Over Current Protection), robust short-circuit protection and surge protection.
