Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
32 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
Other features
| Packet transfer speed |
14880/148800/1488000 p/s |
| Non-operating relative humidity (non-condensing) |
10 - 90% |
| Networking features |
Ethernet, Fast Ethernet, Gigabit Ethernet |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| Full duplex |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| DC-in jack |
Y |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| SFP module slots quantity |
1 |
| SFP/SFP+ slots quantity |
1 |
| Gigabit Ethernet (copper) ports quantity |
16 |
Performance
| Packet buffer memory |
0.340 MB |
| Stackable |
Y |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Protocols
| Supported network protocols |
CSMA/CD |
Operational conditions
| Operating temperature (T-T) |
32 - 104 °F |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
Y |
| Wireless technologies |
Wired |

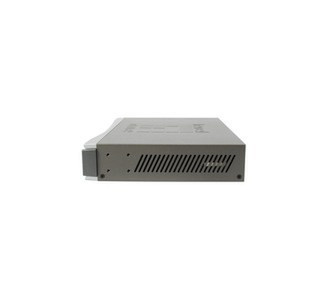

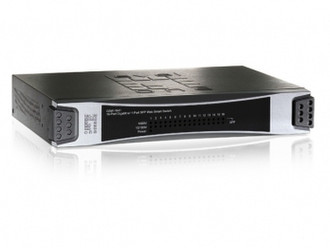

GSW-1641 16-Port Gigabit Web Smart Swtich + 1 SFP Port, 32Gbps Backplane, QoS, 340K Bytes RAM, Flow Control
Gigabit Ethernet Solution
With GSW-1641, users are able to transfer large files faster to improve their workflow and efficiency. In addition to copper ports, the Small Form Pluggable (SFP) port allows for fiber connection for long distance network on a single LAN.
Fast and Reliable Technology
GSW-1641 offers users with fast and reliable network. The store-and-forward architecture filters errors and forwards packets in a non-blocking environment. Flow conrol ensures the correctness of data transmitting. The 802.3x and backpressure flow control mechanisms work respectively for full and half duplex modes. This device supports Nway auto-negotiation protocol that detects the networking speed and the duplex modes (Full/Half) automatically. Auto-MDI/MDI-X function alleviates the effort to use crossover cables.
Web-based Management Interface
Friendly web management features are ready for users easily to configure and maintain the device through a general web browser. You can partition the switch into 16 groups using port-based VLAN technology. This switch also supports Quality of Service (QoS) to prioritise traffic for time-sensitive applications.
Easy to Use
For instant error detection, the switch is equipped with a full range of LEDs to help you monitor and troubleshoot problems on your network. The slim and unique design fits easily in any space-limited location. Users can locate the switch on the desktop. With the accessory kits, the switch can ether be stacked or mounted to the rack to save space.
