Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
48 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
Other features
| Packet transfer speed |
14880/148800/1488000 p/s |
| Non-operating relative humidity (non-condensing) |
10 - 90% |
| Networking features |
Ethernet, Fast Ethernet, Gigabit Ethernet |
Management features
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
Ports & interfaces
| DC-in jack |
Y |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Gigabit Ethernet (copper) ports quantity |
24 |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| Full duplex |
Y |
Performance
| Packet buffer memory |
0.5 MB |
| Stackable |
Y |
Protocols
| Supported network protocols |
CSMA/CD |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
Y |
| Wireless technologies |
Wired |

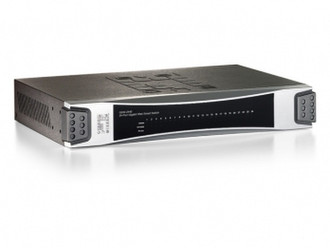

GSW-2440 24-port Gigabit Web Smart Switch, 48Gbps Backplane, 500K Bytes RAM, Jumbo frame, QoS, Flow Control
Gigabit Ethernet Solution
LevelOne GSW-2440 Gigabit switch provides 24 Gigabit ports for fast transfer of files over the Local Area Network (LAN). As a Web Smart switch, it has advanced features allowing administrators to customize their network for advanced features.
Fast and Reliable Technology
GSW-2440 offers users with fast and reliable network. The store-and-forward architecture filters errors and forwards packets in a non-blocking environment. Flow control ensures stable and accurate data transfers. The 802.3x and backpressure flow control mechanisms work respectively for full and half duplex modes. This device supports Nway auto-negotiation protocol that detects the networking speed and the duplex modes (Full/Half) automatically. Auto-MDI/MDI-X function alleviates the effort to use crossover cables.
Web-based Management Interface
A friendly web-based UI lets users easily configure and maintain the device through any web browser. You can partition the switch into 24 groups using port-based VLAN technology. This switch also supports Quality of Service (QoS) to prioritise traffic for time-sensitive applications.
