Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
48 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| DC-in jack |
Y |
| SFP module slots quantity |
4 |
| SFP/SFP+ slots quantity |
4 |
Performance
| Packet buffer memory |
0.5 MB |
| Stackable |
Y |
Other features
| Networking features |
Ethernet, Fast Ethernet, Gigabit Ethernet |
Operational conditions
| Operating temperature (T-T) |
32 - 104 °F |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
Y |
| Wireless technologies |
Wired |

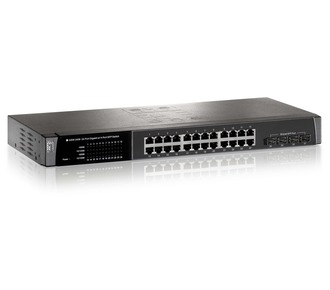

GSW-2456 24-Port Gigabit Switch with 4 shared SFP Ports
Product Overview
LevelOne introduces a new member to the ProCon Switch family, the GSW-2456.
This Gigabit switch is the ideal solution for networks that demand a reliable and stable high-speed bandwidth environment to connect workgroups with file servers.
Copper and Fiber Connectivity
The GSW-2456 ProCon Gigabit switch has 24 10/100/1000Mbps Base-T RJ-45 Nway ports of which 4 ports are SFP shared ports. These SFP ports are Mini- GBIC ports for obtaining long distance network connectivity via fiber optic connections.
High-Speed Connectivity
With a 40Gbps backplane, the GSW-2456 provides high-speed data transmission through effective buffering to each port that is provided through dynamic memory allocation with a store-and-forward switching product architecture that also controls the data flow between transmit and receive nodes to guard against packet loss.
Auto Select Connectivity
The GSW-2456 Gigabit switch further supports Auto-MDIX/MDI-X and Nway auto-negotiation that detects network speeds and duplex modes automatically. The LED display assists in monitoring and troubleshooting of network problems.
Plug-and-Play Connectivity
The “Plug-and-Play” ability of the GSW-2456 makes it a suitable solution for quick installation and set-up of a high-speed network that is easy to maintain and manage. The switch has a compact design and easily be mounted with the included 19” rack mountable housing.
