Performance
| Frequency band |
2.4/5 GHz |
| Impedance |
50 Ω |
| Vertical beam width |
30 ° |
| Horizontal beam width |
360 ° |
| Antenna gain (2.4 GHz) |
2.5 dBi |
| Antenna gain (5 GHz) |
5 dBi |
| Antenna gain level (max) |
5 dBi |
Other features
| Frequency range |
2.4 - 2.5 GHz, 5.15 - 5.875 GHz |
Features
| Power handling |
2 W |
| Voltage Standing Wave Ratio (VSWR) |
2.0:1 |
| Antenna connector type |
N-type |
| Polarization |
Vertical polarization |
| Antenna type |
Omni-directional antenna |
2.4/5dBi Dual-band Omni-directional Antenna (2.4/5GHz)
- Compatible with 2.4GHz 802.11 b/g/n or 5GHz 802.11a Wireless devices
- 2.5dBi antenna for 2.4GHz
- 5dBi antenna for 5 GHz
- Provides a more stable signal and extends coverage
- N type plug connector for easy replacement of standard out antennas
- Replace standard detachable antennas on most Access Points

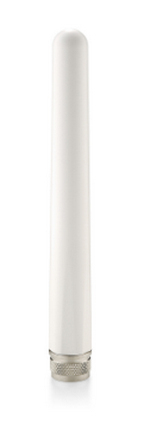

LevelOne's OAN-0600 is a Dual-Band Omni-Directional Antenna allows users to simplify deployments by offering access to both 11a and 11b/g network signals.
This antenna provides users with great flexibiity for the wireless network. As an optional antenna for 2.4 GHz (802.11b/g) and 5GHz (802.11a) wireless network equipment, OAN-0600 offers compatibility and performance on both wireless bands.
OAN-0600 is durable and compact and will withstand high wind speeds and severe weather. For professional wireless equipment installers this omni-directional antenna is the ideal complement to LevelOne’s WAB-7400/7000.
In addition, OAN-0600 offers compatibility with any brand of wireless devices that uses an N-type jack connector.
