Performance
| Duplex system |
Half, Full |
| MAC address table |
1000 entries |
| Type |
Network receiver |
| Data transfer rate |
100 Mbit/s |
| Maximum transfer distance |
2000 m |
| Power over Ethernet (PoE) |
Y |
| Full duplex |
Y |
| Packet forwarding rate (100 Mbps) |
148000 pps |
| Packet forwarding rate (10 Mbps) |
14880 pps |
| Auto MDIX IEEE |
Y |
Ports & interfaces
| Terminal block port |
Y |
| Power over Ethernet (PoE) ports quantity |
1 |
| Fiber ports quantity |
1 |
Power
| Power consumption (max) |
60 W |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

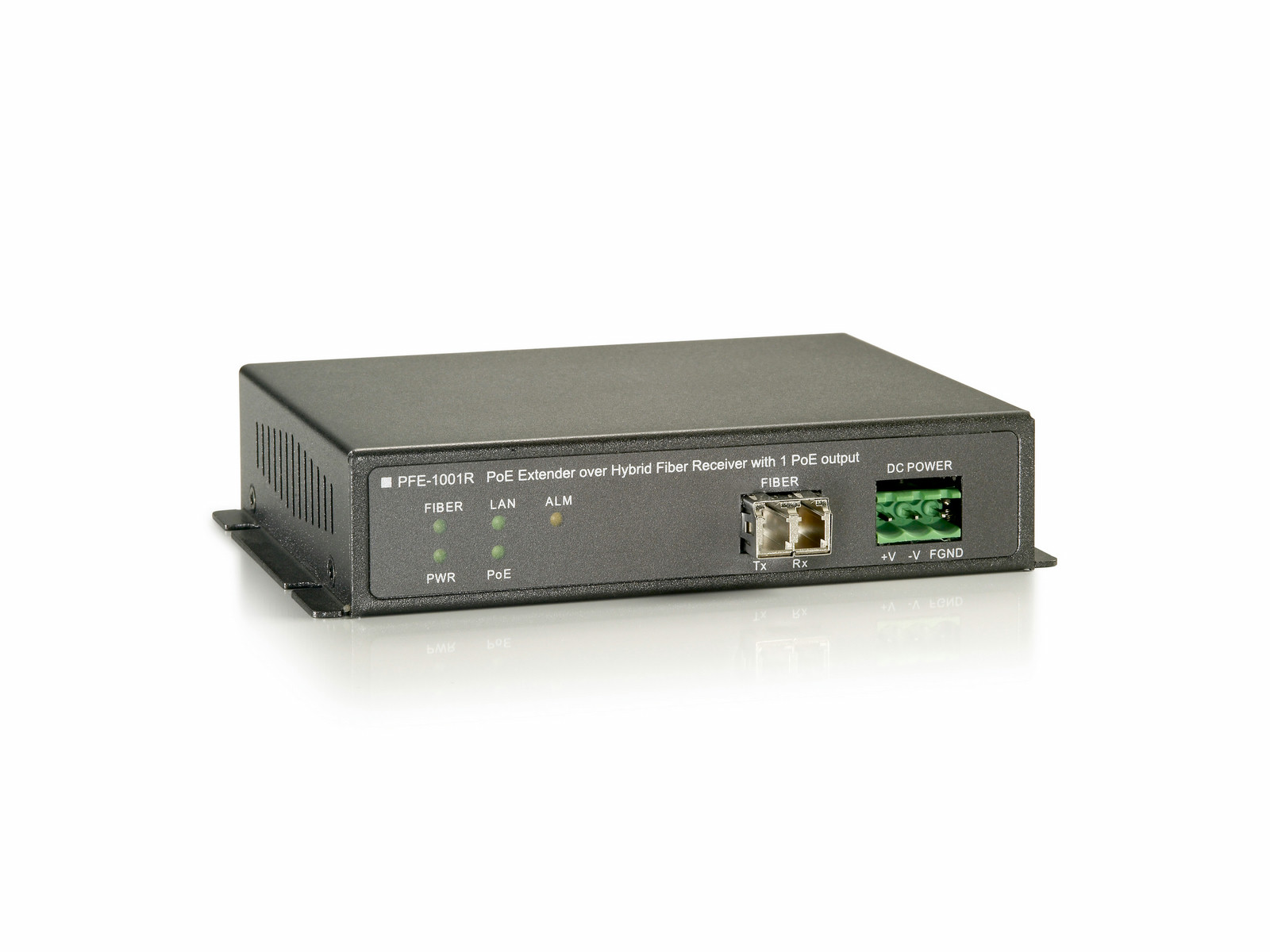

PoE Extender, Receiver 1 x RJ-45 PoE, 2km, 10/100Mbps, IEEE 802.3/at/af/u
Using hybrid fiber and copper cable, the LevelOne PFE range can deliver integrated power and data over a distance of 6,800 ft (2km) to a receiver which provides high-power PoE output for IP surveillance applications. A tough outdoor range (PFE-1011/1014) provides the same performance within a durable IP66-rated waterproof housing for harsh environmental conditions and temperature range of -40°C to 60°C.
- Extend data and power up to 2km via a single Hybrid Fiber Cable
- Enable PoE devices to distant remote location
- Supporting high power consumption devices (up to 60W at 450m link)
- Flexible installation option - 1 or 4 PoE output receivers selectable
- Outdoor casing protects operation under wide temperature range (PFE-1011R/1014R)
- Outdoor weatherproof models are sustainable from water and dust (PFE-1011R/1014R)
